RT-3000 Remote Trigger Manual
Rev. 12/2012 Page | 33
4 1 5
2 3
09047 4 Way Valve
5102-1-1 Poly Fitting
5102-1-1 Poly Fitting
00285 1/2" Poly Fitting
00382 3/8" Poly Fitting 00382 3/8" Poly Fitting
01001 3/8" Poly Elbow
00003-1 3/8 Poly Fitting
1/2" Poly Air Supply
Gun Signal Line from Control panel
Gun Signal Line from Control panel

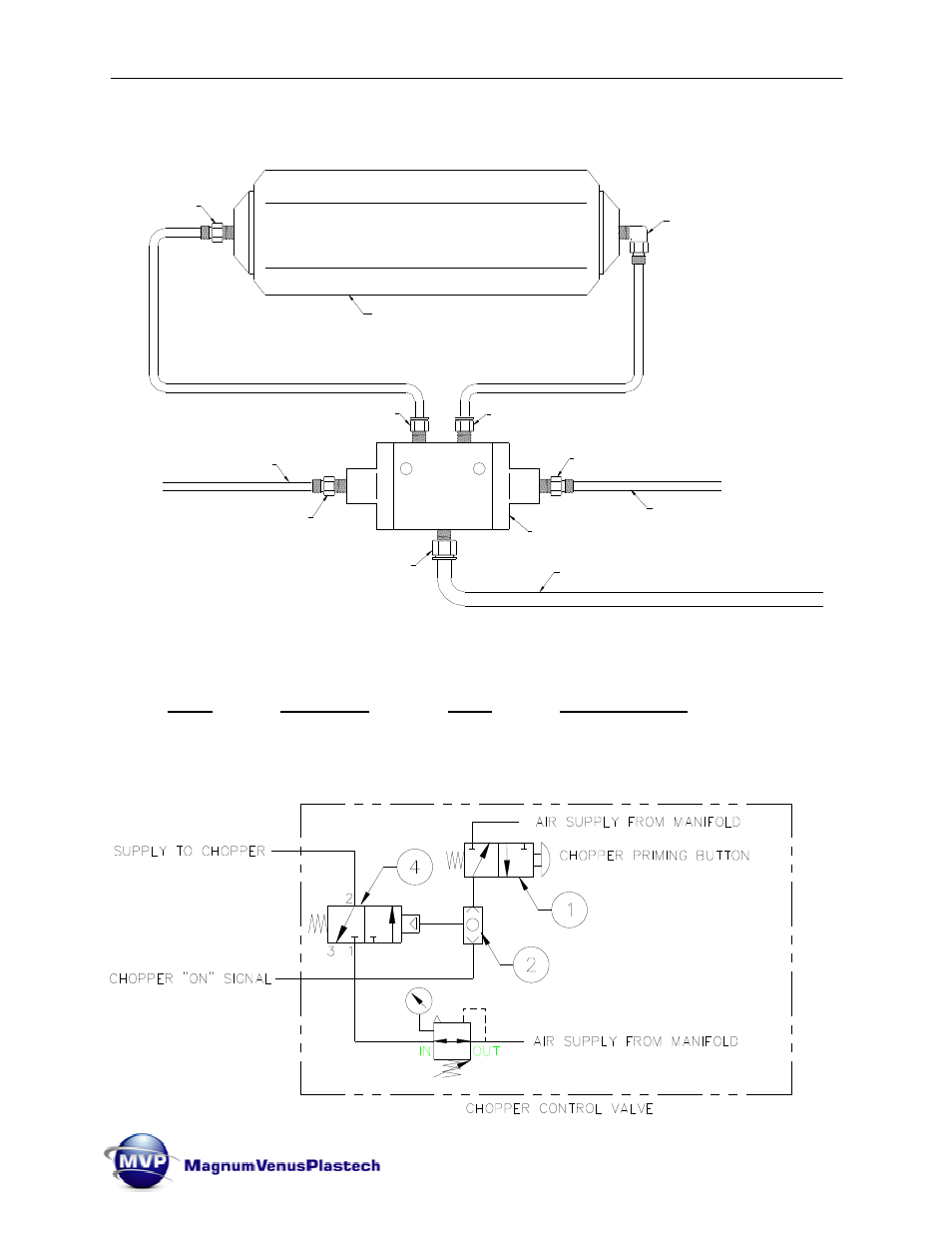

HV Pro Gun Actuator
HV Gun controls using 4way dual piloted valve and 3/8 fittings.
Note: chopper control valve or equivalent as shown below is required in addition to the
Remote Trigger package (like the RT-3000).
ITEM PART NO. QTY. DESCRIPTION
1 8407-4-1 1 3-WAY VALVE
2 8407-3-1 1 SHUTTLE VALVE
4 09509 1 3-WAY VALVE
