Magnum Venus Plastech RT-3000 PRO GUN CHOP TRIGGER - Manual (Page 32)

RT-3000 Remote Trigger Manual
Rev. 12/2012 Page | 32

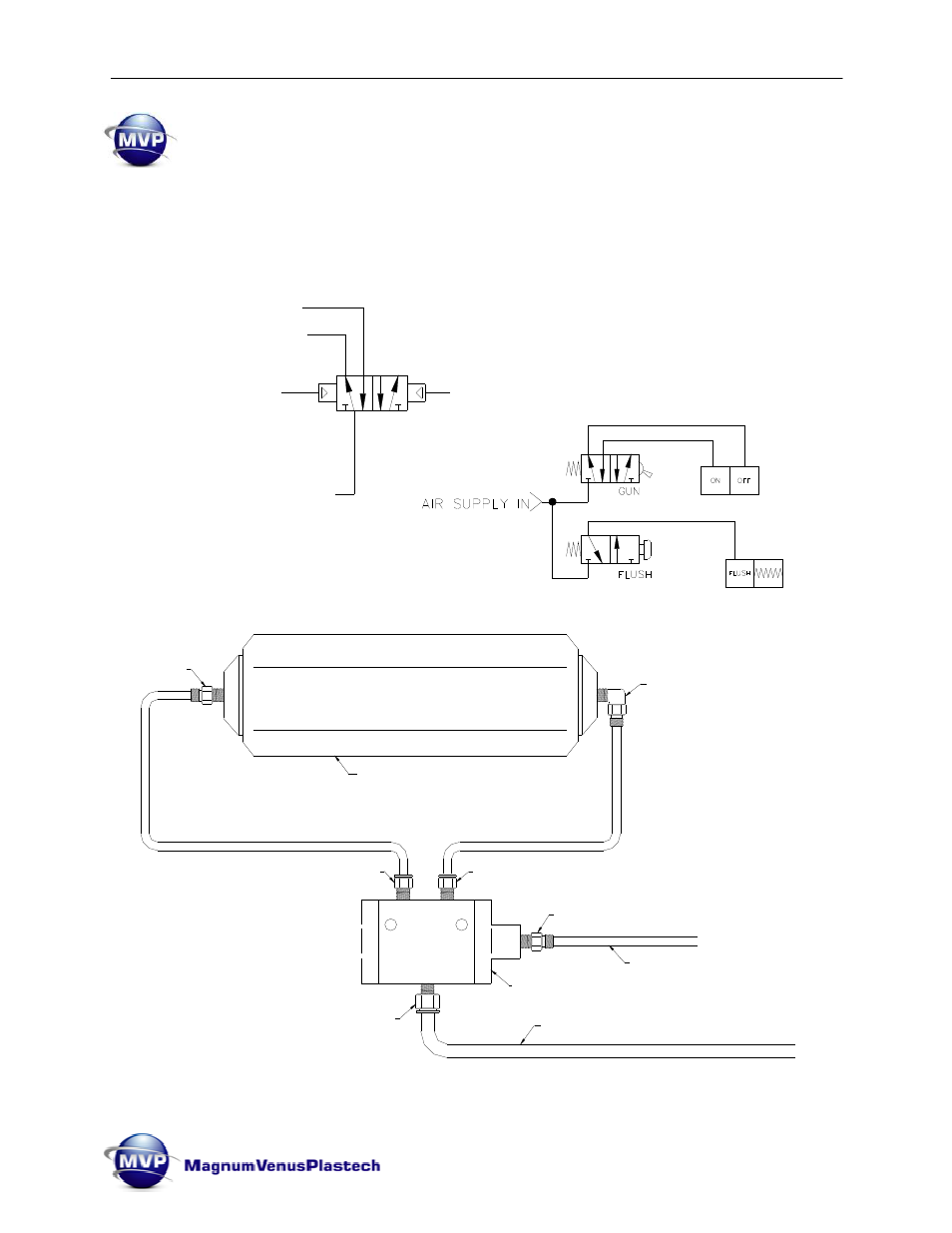

AIR SUPPLY FROM MANIFOLD
TO THE FRONT OF THE AUTO GUN (GUN ON)
TO THE BACK OF THE AUTO GUN (GUN OFF)
E
X
H
A
U
S
T
E
X
H
A
U
S
T
GUN/PUMP OFF SIGNAL GUN/PUMP ON SIGNAL
00382 3/8" Poly Fitting
09513 4 Way Valve
00285 1/2" Poly Fitting
00382 3/8" Poly Fitting
3
4 1
2
5
00003-1 3/8 Poly Fitting
HV Pro Gun Actuator
Gun Signal Line from Control panel
1/2" Poly Air Supply
5102-1-1 Poly Fitting
01001 3/8" Poly Elbow
GUN OFF SIGNAL
HV Pro Gun Options:
Below are a couple of valve options for controlling the HV Gun block. The HV Pro gun
Actuator may open and close slowly when using the standard remote trigger packages
so it is recommended to use a larger piloted valve to supply the gun and chopper but
control them using the remote trigger package.
HV Gun controls using 4way spring return valve and 3/8 fittings.
