Air Supply In:
3. Locate or create an air supply from the air manifold.
4.
Mark both ends of the poly tube appropriately and put one end through the inner
guard and slide the hose clamp onto the tube and then attach it to the #1 barb
fitting. (see diagram above)
5. Connect the other end of the poly tube to the air supply fitting located on the air
manifold.
Chopper (Roving Cutter):
6. Mark both ends of the poly tube appropriately and put one end through the inner
guard and slide the hose clamp onto the tube and then attach it to the #5 barb
fitting (Chopper “ON” signal). (see diagram above)

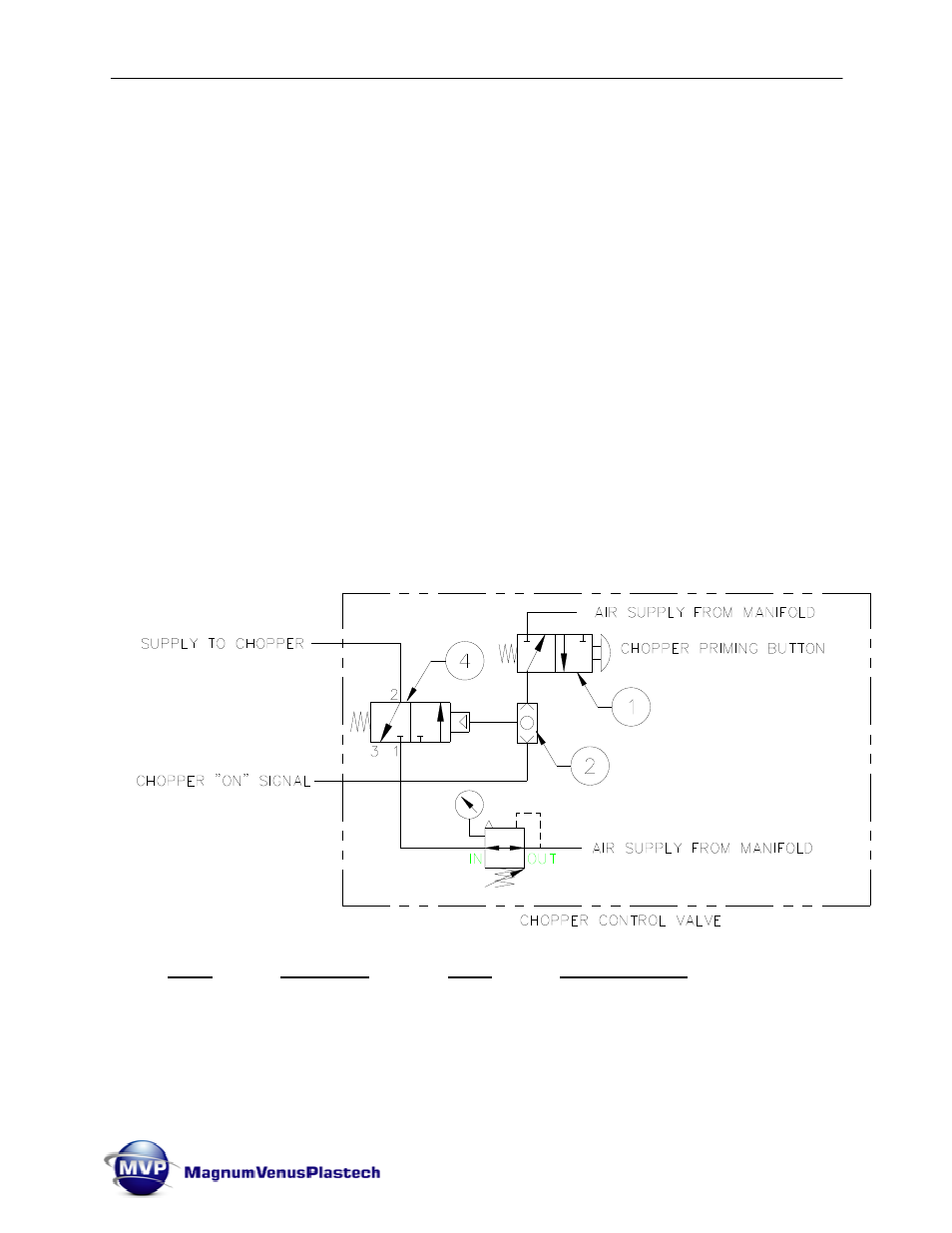

7. Connect the other end to the fitting located at the Chopper Control Valve. (see
drawing below)
Note: chopper control valve or equivalent is required in addition to the RT-3000.
ITEM PART NO. QTY. DESCRIPTION
1 8407-4-1 1 3-WAY VALVE
2 8407-3-1 1 SHUTTLE VALVE
4 09509 1 3-WAY VALVE
