AR – 1202
RTC
ARCHITECTURAL DIMMER
Revision
1.93
OWNERS
MANUAL 06/03/2008
www.lightronics.com
Lightronics Inc.
509 Central Drive Virginia Beach, VA 23454
Tel 757 486 3588

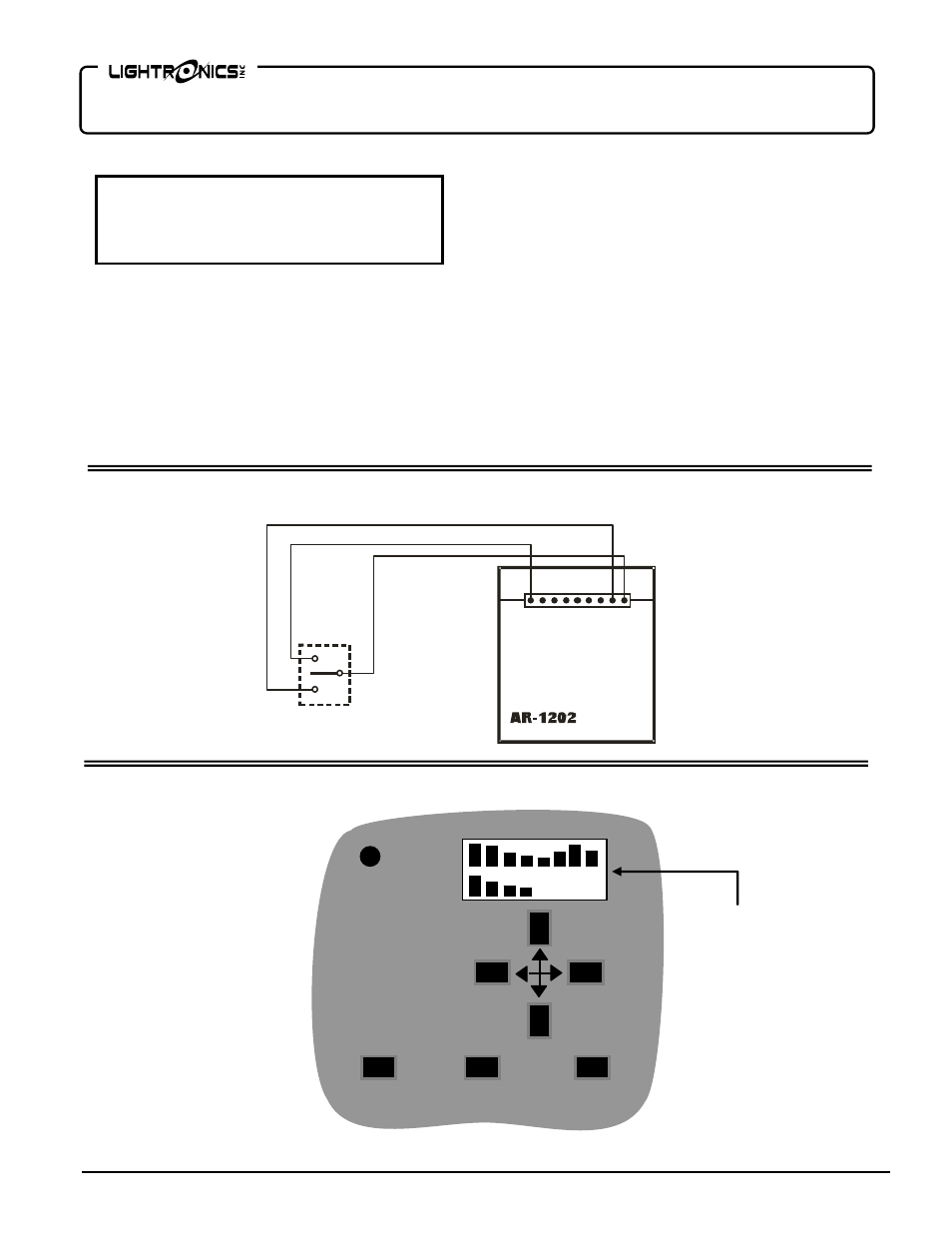

SIMPLE REMOTE CONNECTIONS
Scenes 1 - 7 (stored in the AR-1202) may be used by
simple remotes. A BLACKOUT function may also be
accessed. A simple remote is any switch which can
provide a momentary contact closure which can be
applied to a specific pin on the AR-1202
SIMPLE
REMOTE CONNECTIONS terminal strip
.
The SIMPLE REMOTE COMMON is routed to the
remote switch.
When the switch is operated the closure brings the
common back to the applicable simple remote scene
number connection point at the AR-1202 terminal
strip. Almost any available low voltage wire may be
used since these connections are just contact closures.
Multiple simple remotes may be used. Additionally
multiple AR-1202 units may be chained to one or
more simple remotes
See the diagram "EXTERNAL CONNECTIONS" and
the example below for specific connection
information.
AR - 1202 UNIT SETUP
CAUTION
REMOVE ALL POWER FROM THE AR-1202
BEFORE MAKING OR CHANGING SIMPLE
REMOTE CONNECTIONS.
FRONT PANEL (PARTIAL VIEW)
POWER
D
MENU
(NEXT)
CLEAR
ENTER
Menu/Status
Display
1 2 3 4 5 6 7 8 9
Simple Remote
Common
Simple Remote
Connections
Terminal Strip
Simple Remote
APP01
Scene 8 (Blackout)
Scene 1
SIMPLE REMOTE CONNECTIONS EXAMPLE USING A LIGHTRONICS APP01
