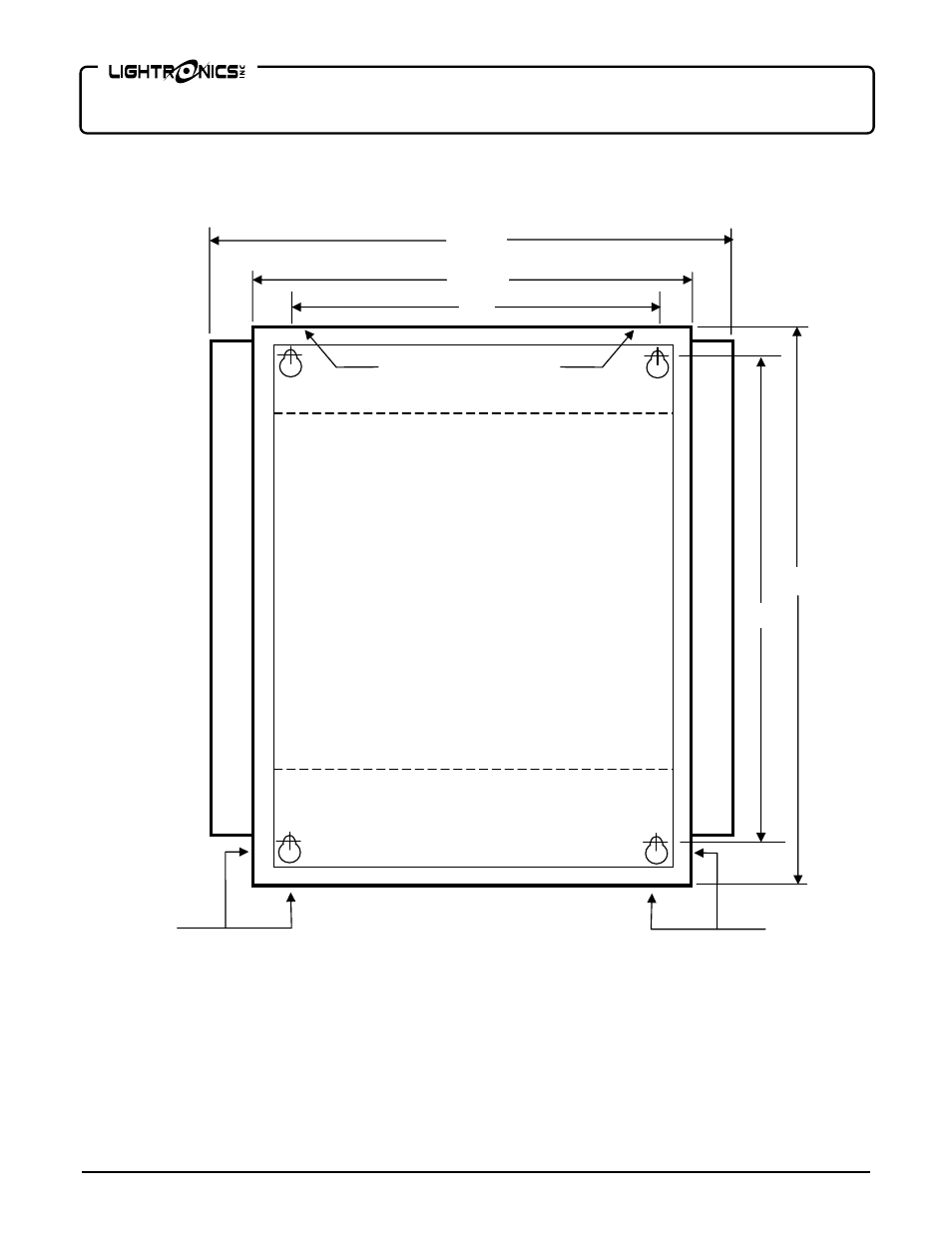

DIMENSIONS AND MOUNTING
NOTES:
Dimensions are +/- 1/16”. This drawing is not to scale.
Cabinet Clearance Depth is 6 1/4"
Mounting holes indicated by “M” will accommodate 1/4" bolt.
Double 1/2, 3/4 inch knockout holes provided at locations indicated by “K”.
Suggested Mounting Procedure:
Drill top holes level, 16” apart at desired height.
Partially install bolts (enough to hold cabinet weight).
Hang cabinet from top bolts.
Drill lower holes and install lower bolts – tighten all bolts.
K
20 1/4”
17 5/8”
16”
21 1/8”
18 5/8”
POWER CONNECTIONS AREA
CONTROL SIGNAL CONNECTIONS AREA
K
K
K
M
M
M
M
Cabinet Front View With Door Removed
