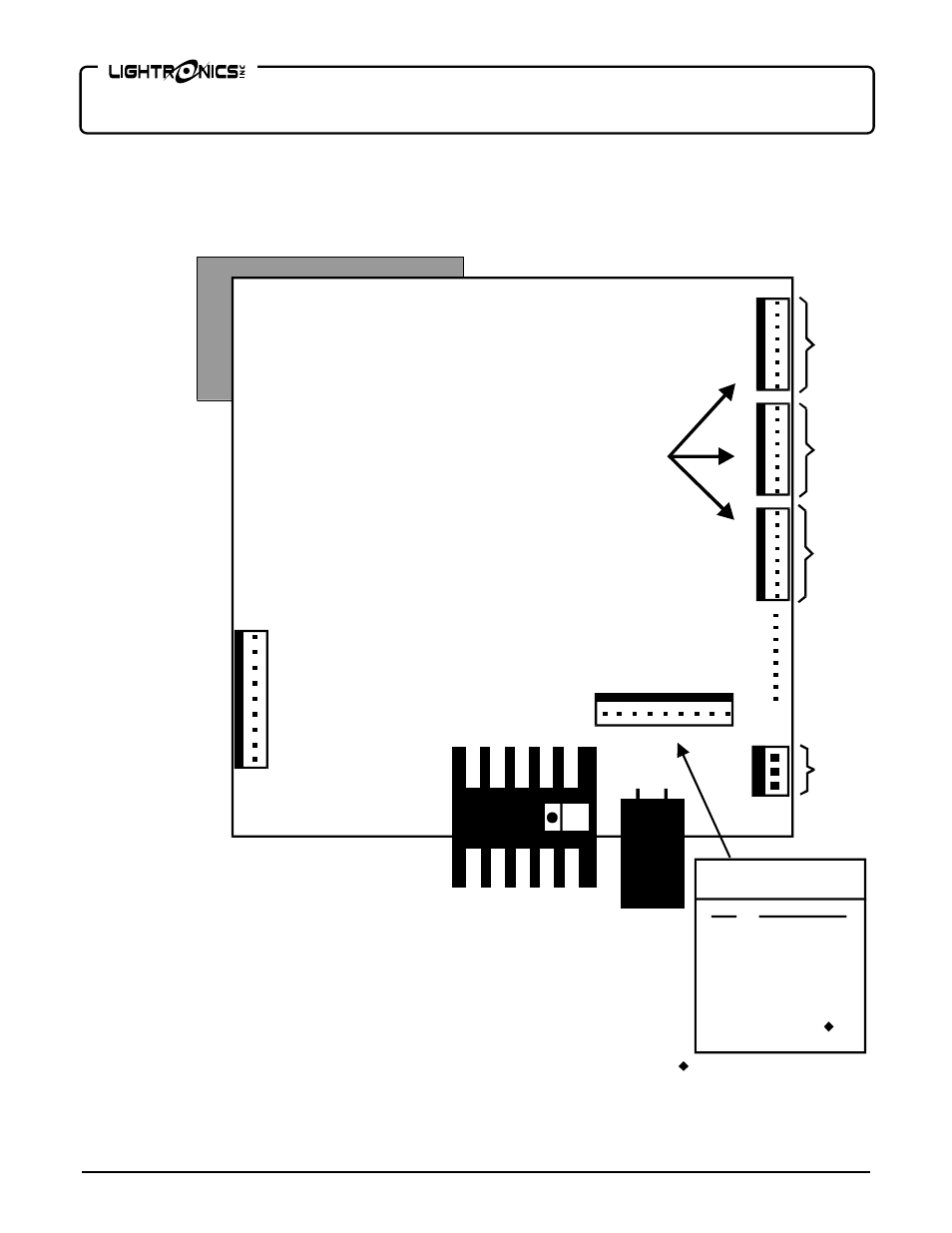

CONTROL CIRCUIT BOARD CONNECTIONS
DMX AND
MULTI-SCENE
REMOTE UNIT
INPUTS
SIMPLE REMOTE UNIT INPUTS
CHANNEL
CONTROL
OUTPUTS
POWER
INPUT
AR-1202
CIRCUIT BOARD
ASSY
(REAR VIEW SHOWN)
9 8 7 6 5
2
1
4
3
9
8
7
6
5
2
1
4
3
J2
J3
J4
J5
J6
REMOTE VOLTAGE +
REMOTE COMMON
REMOTE DATA +
REMOTE DATA -
DMX COMMON
** DMX OUT -
** DMX OUT +
DMX IN -
DMX IN +
SIMPLE REMOTE UNIT
INPUT CONNECTIONS (J3)
PIN # FUNCTION
1
2
3
4
5
6
7
8
9
SCENE #1
SCENE #2
SCENE #3
SCENE #4
SCENE #5
SCENE #6
SCENE #7
SCENE #8
REM. COMMON
CHAN
1 - 4
CHAN
5 - 8
CHAN
9 - 12
** DMX OUT connections
not used on AR-1202
12 VAC
Dedicated to "blackout" function
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
