8222 – 16 Optically Isolated Inputs/8 Form C Outputs

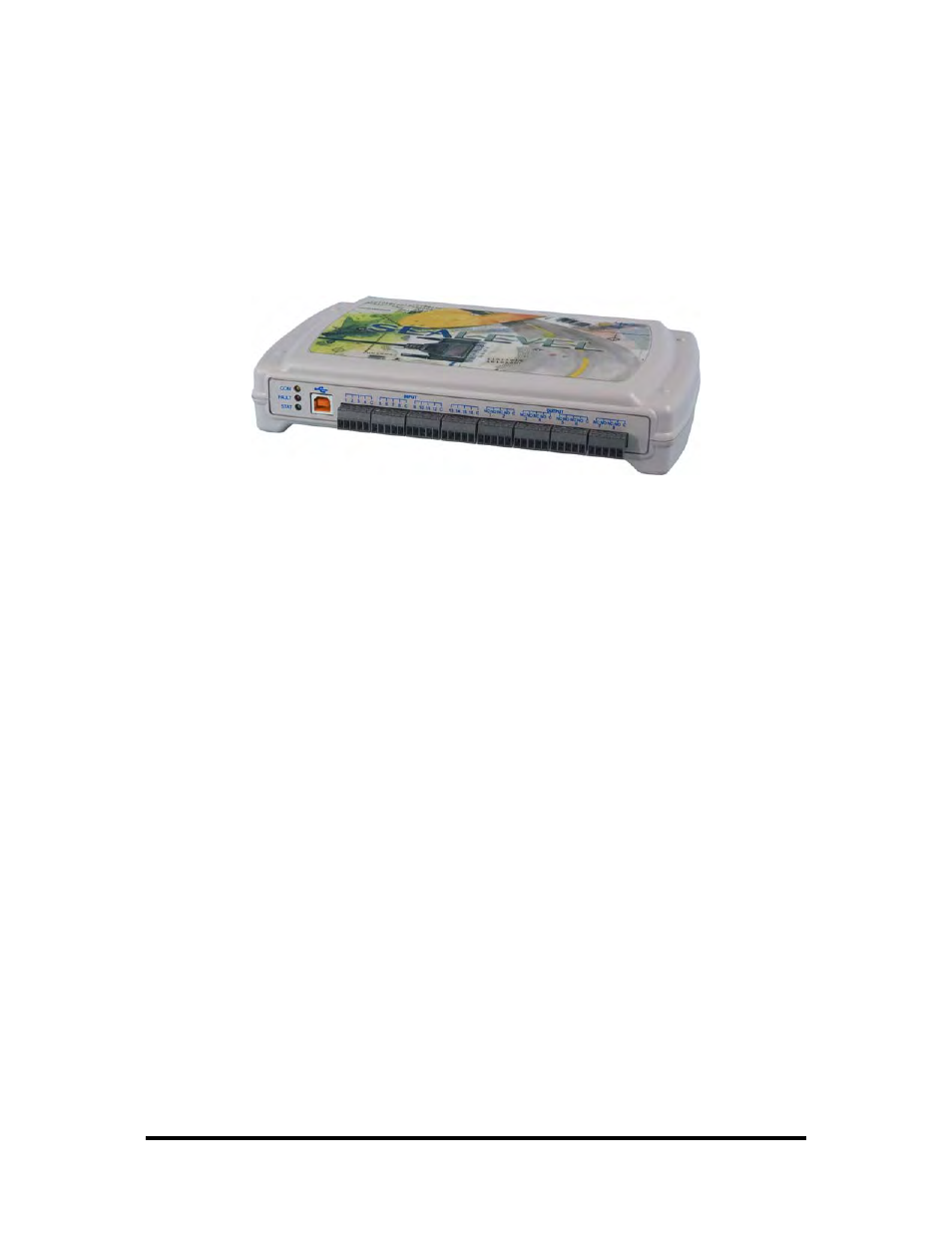

The SeaDAC 8222 provides 16 optically isolated inputs and 8 SPDT Form C relay
outputs. Inputs can range from 5-30VDC and provide 300V isolation to ground. Each
output offers normally open and normally closed contact connections via 3.5mm field
removable terminal blocks.
Inputs
Type:
16 non-polarized optically isolated inputs
Voltage Range:
5-30VDC
Isolation: 300V
Input Resistance:
6.2K Ohms in series
Response Time:
4 microseconds
Outputs
Type:
8 SPDT Form C relays
Power:
DC 30W/ AC 60 VA
Contact Voltage:
60VDC max.
Contact Current:
2A max.
Operate Time:
2ms max.
Bounce Time:
7ms max.
Release Time:
1ms max.
