SeaI/O Configuration Tab (cont.)

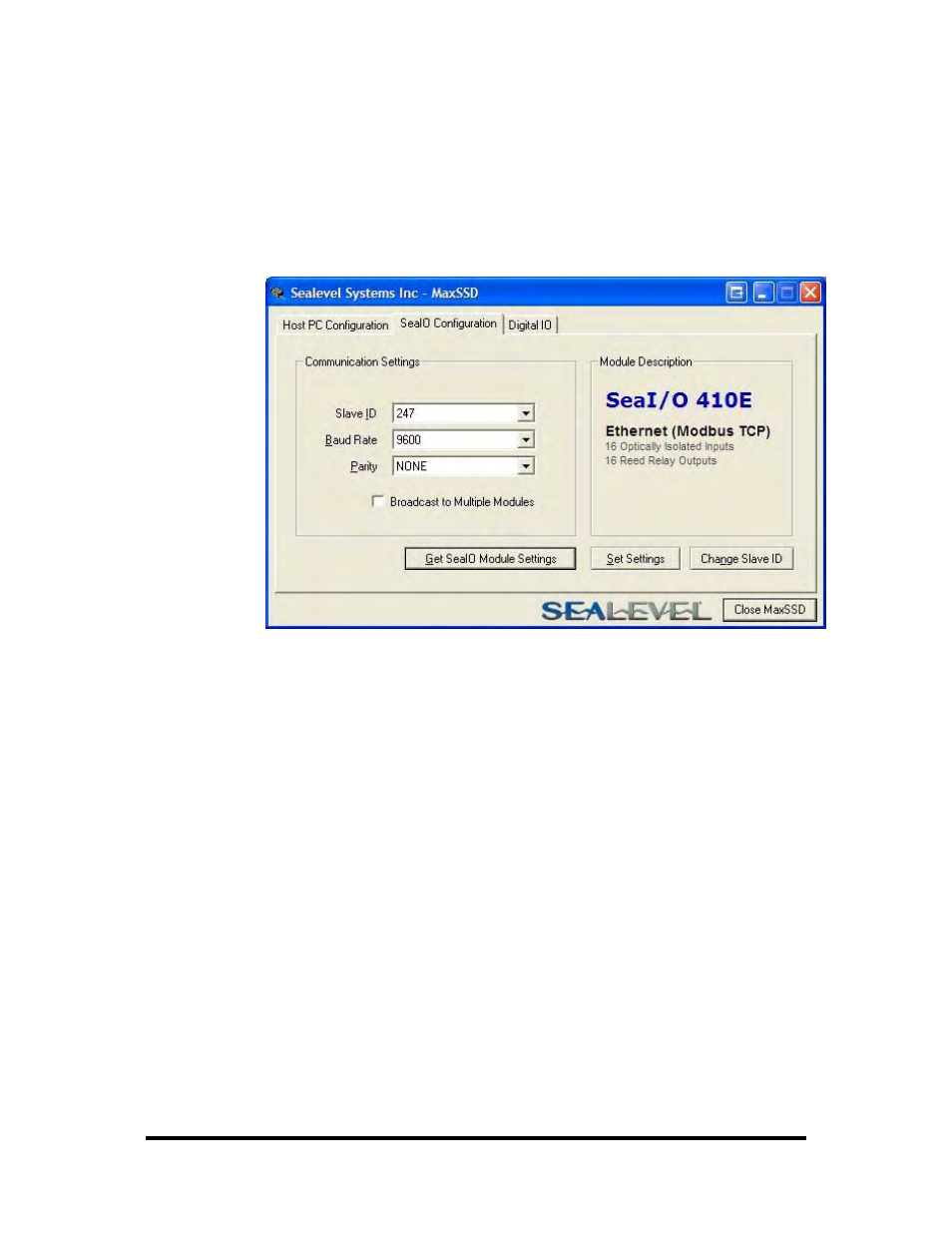

After the Get command is executed, the “Module Description” frame will display the
model type, description, interface, and I/O type. In the example shown, the module
found at slave ID 247 is a SeaI/O-410 module with an Ethernet (Modbus TCP)
interface. The “Set Settings” and “Change Slave ID” buttons will also be enabled for
this module.
After a successful Get operation, additional tabs may be displayed in MaxSSD,
depending on the found device model. These tabs display device I/O and allow easy
configuration for all SeaMAX supported devices.
