8232 – 8 Optically Isolated Inputs/8 High-Current Form C Outputs

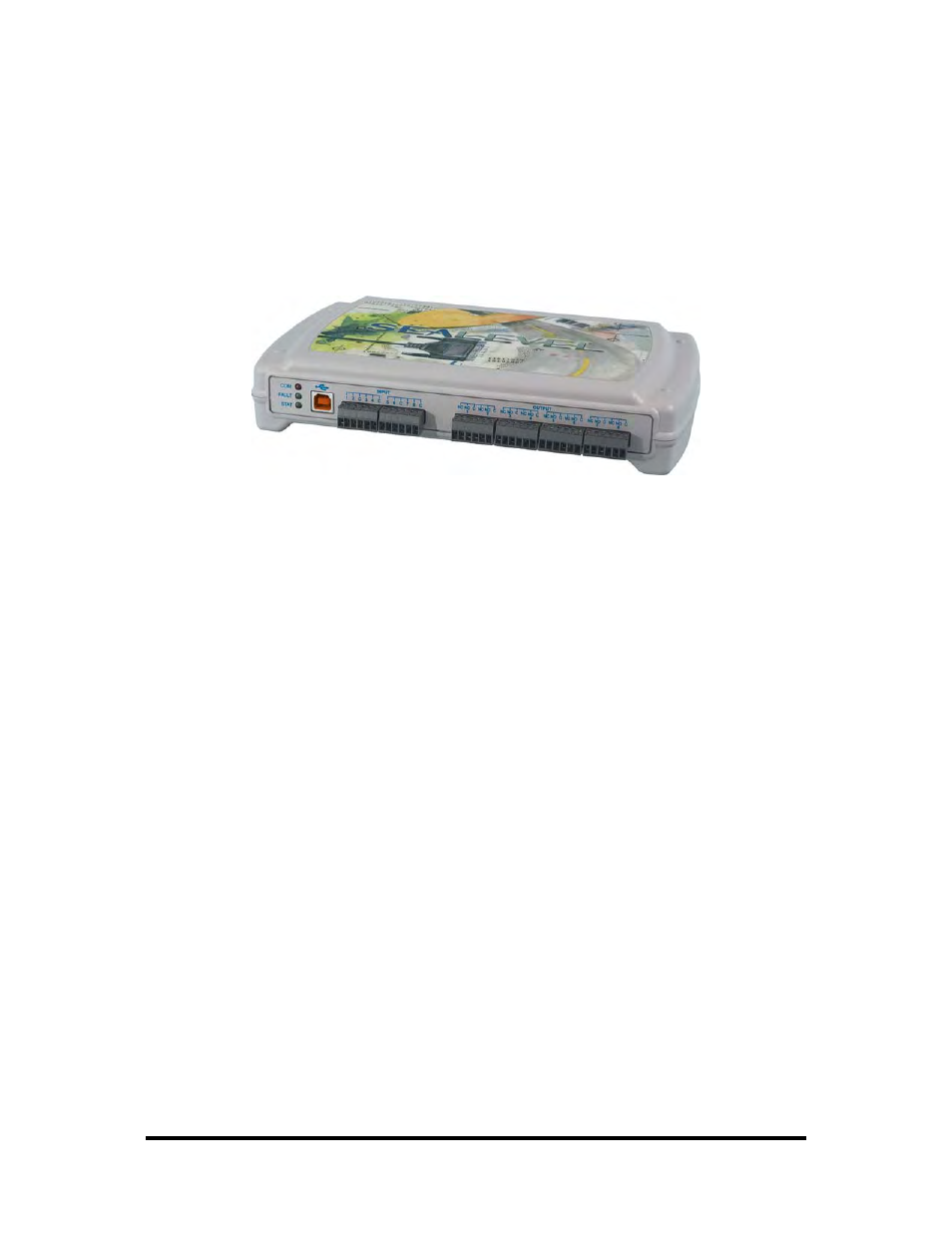

The SeaDAC 8232 provides 8 optically isolated inputs and 8 SPDT high-current
Form C relay outputs. Inputs can range from 5-30VDC and provide 300V isolation to
ground. Each output offers normally open and normally closed contact connections
via 3.5mm field removable terminal blocks.
Inputs
Type: 8 non-polarized optically isolated inputs
Voltage Range: 5-30VDC
Isolation: 300V
Input Resistance:
6.2K Ohms in series
Response Time: 4 microseconds
Outputs
Type: 8 SPDT High-Current Form C relays
Contact Voltage: 250VAC/100VDC max.
Contact Current: 6A max.
Operate Time: 10ms max.
Release Time: 10ms max.
