8113 – 4 Optically Isolated Inputs

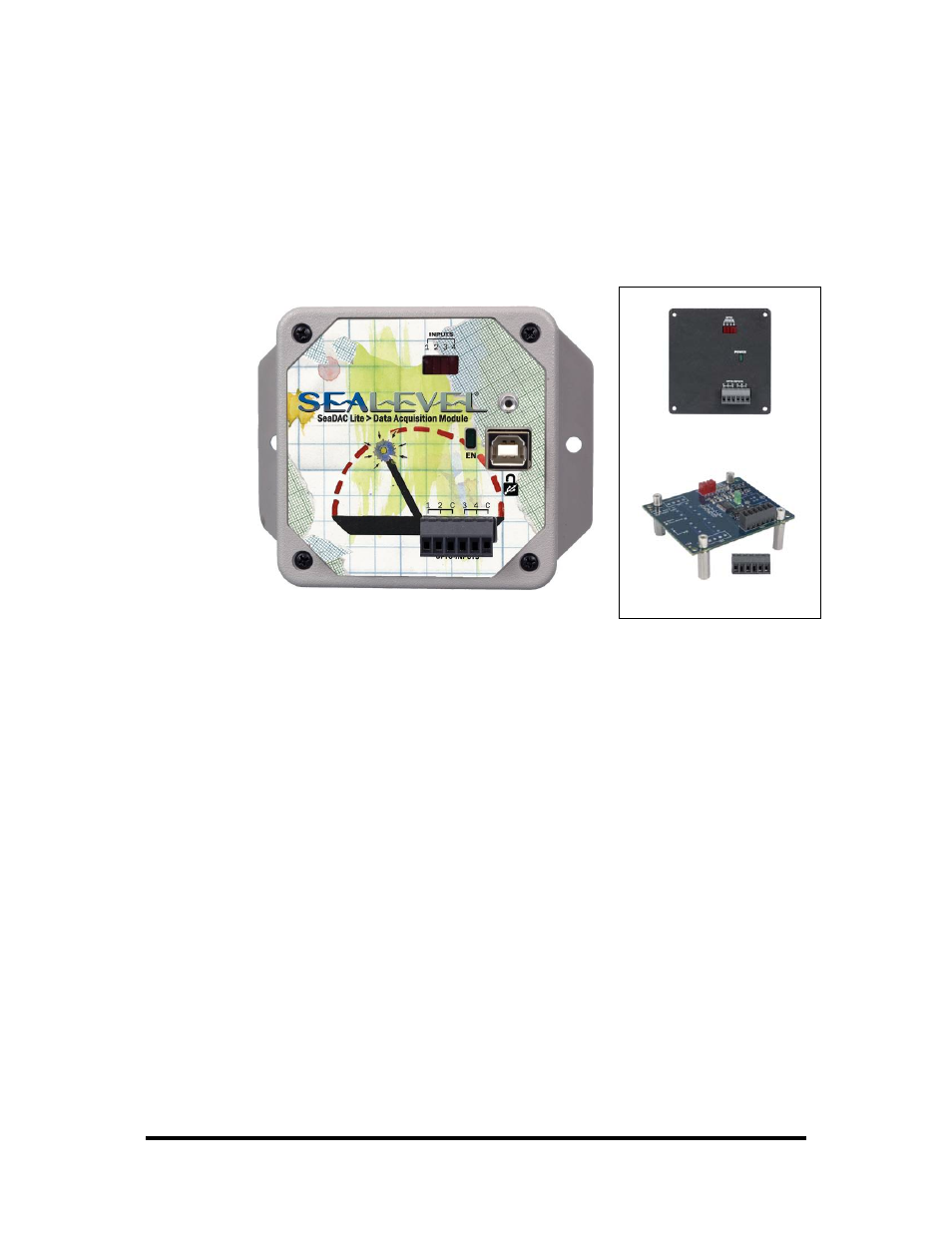

SeaDAC Lite 8113 modules provide 4 optically isolated inputs with 300V external
isolation and high channel-to-channel isolation. Ideal for low voltage monitoring
applications, inputs can range from 5-30VDC. Status LEDs display I/O activity and
connection to real world signals is made via 3.5mm field removable screw terminal
connectors.
8113-KT iPorthole
8113-OEM
Inputs
Type:
4 non-polarized optically isolated inputs
Voltage Range:
5-30VDC
Isolation: 300V
Input Resistance:
6.2K Ohms in series
Response Time:
4μs
