Isolated Analog Signal Conditioning Products
SCM5B
SCM5B

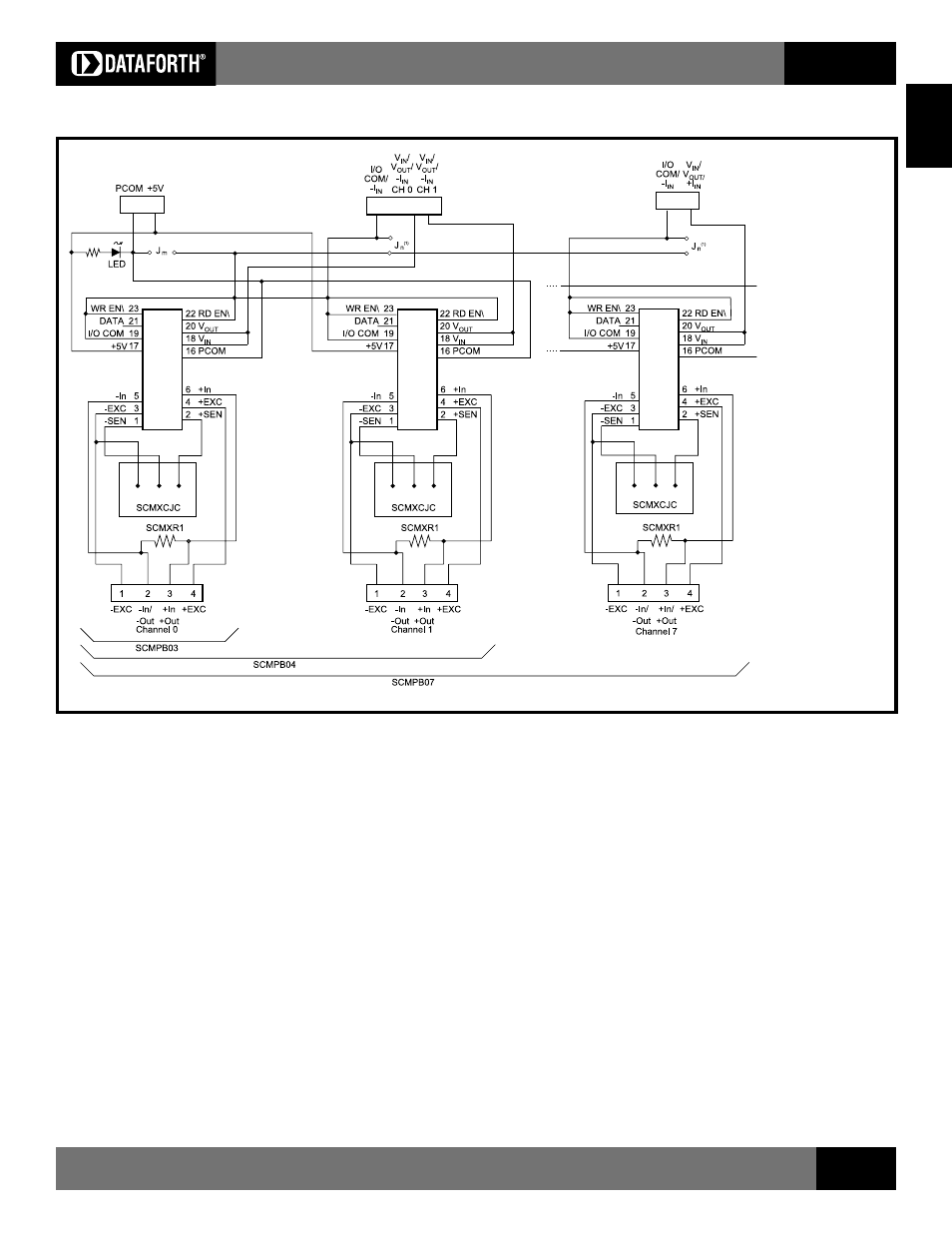

Figure 11: SCMPB03/SCMPB04/SCMPB07 Schematic
NOTES:
1. Jumpers Jn are on SCMPB07
only. Factory installed.
2. Jumper Jm is factory installed.
3. SCMXCJC are CJC temperature
sensors.
4. Resistors SCMXR1 are optional
I/V conversion resistors for
current inputs, not factory
installed.
