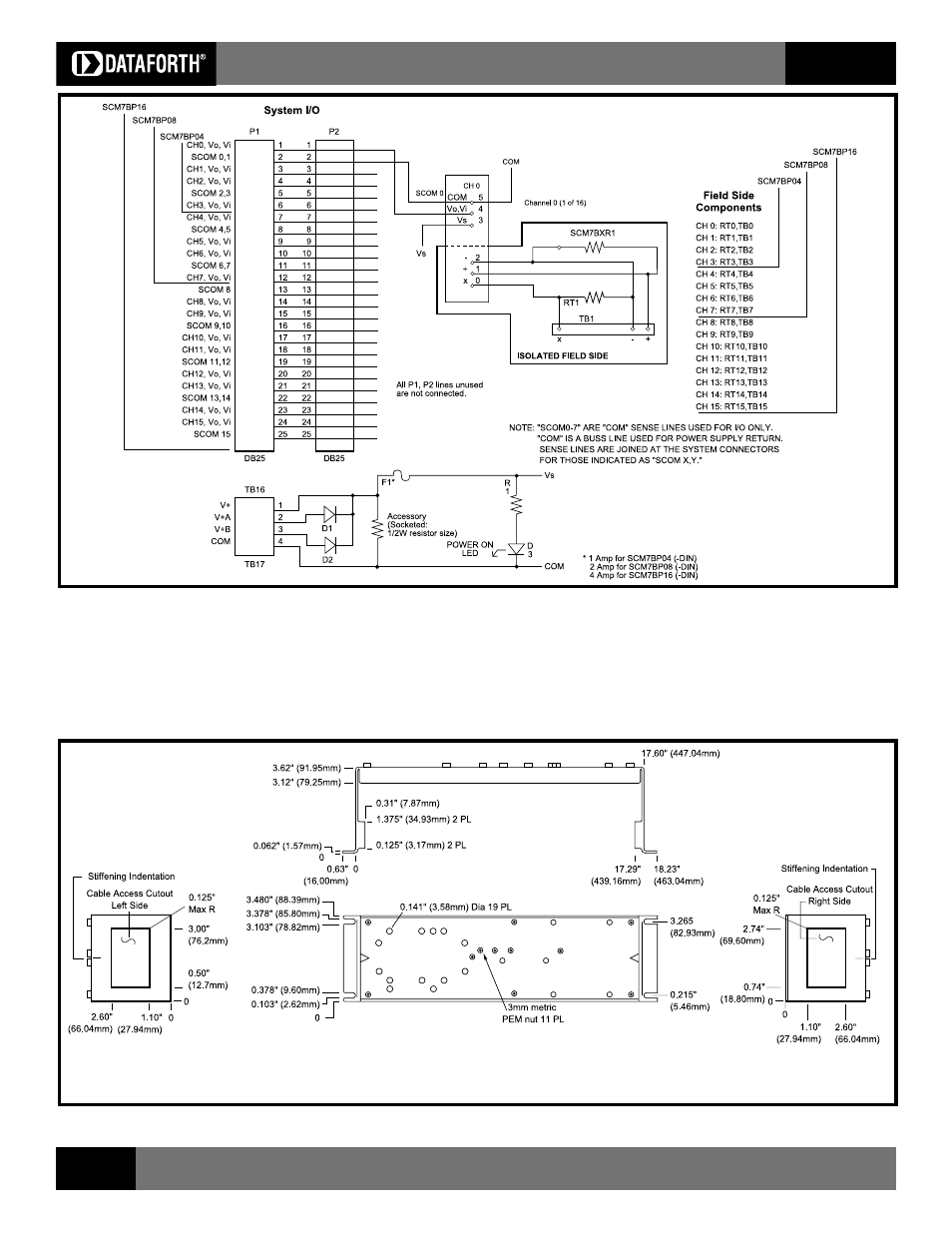

Figure 13: SCM7BP04/08/16(-DIN) Schematic Diagram
SCMXRK-002
19 Inch Metal Mounting Rack
Figure 14: SCMXRK-002 Analog Rack Dimensions
Description
The SCMXRK-002 is a 19-inch metal rack for mounting the SCM7BP04/08/
16 backpanels. It also provides capability to mount a system power supply and
the universal interface board, P/N SCMXIF. (See Figure 14 for dimensions.)
