Isolated Process Control Signal Conditioning Products SCM7B
For information call 800-444-7644 90
SCM7BP01-DIN/SCM7BP02-DIN
Panels & DIN Rail Mounting Accessories
Description
The following Dataforth parts (Figure 5) are required for DIN mounting one
SCM7BP01 or SCM7BP02 panel:
Qty Model Description
1 SCMXBEFE Base element with snap foot
2 SCMXSE Side element
The following Dataforth parts are required for DIN mounting two SCM7BP01-DIN
and/or SCM7BP02-DIN panels:
Qty Model Description
2 SCMXBEFE Base element with snap foot
2 SCMXSE Side element
4 SCMXVS Connection pins
The following Dataforth parts are required for DIN mounting three or more
SCM7BP01-DIN and/or SCM7BP02-DIN panels:
Qty Model Description
2 SCMXBEFE Base element with snap foot
2 SCMXSE Side element
(# panels) - 2 SCMXBE Base element without snap foot
(4 x (# panels)) - 4 SCMXVS Connection pins
The following DIN rail styles are available. Specify the required length in meters
(-XX):
SCMXRAIL1-XX DIN EN 50022-35 x 7.5 (slotted steel)
SCMXRAIL2-XX DIN EN 50035-G32 (slotted steel)
SCMXRAIL3-XX DIN EN 50022-35 x 15 (slotted steel)

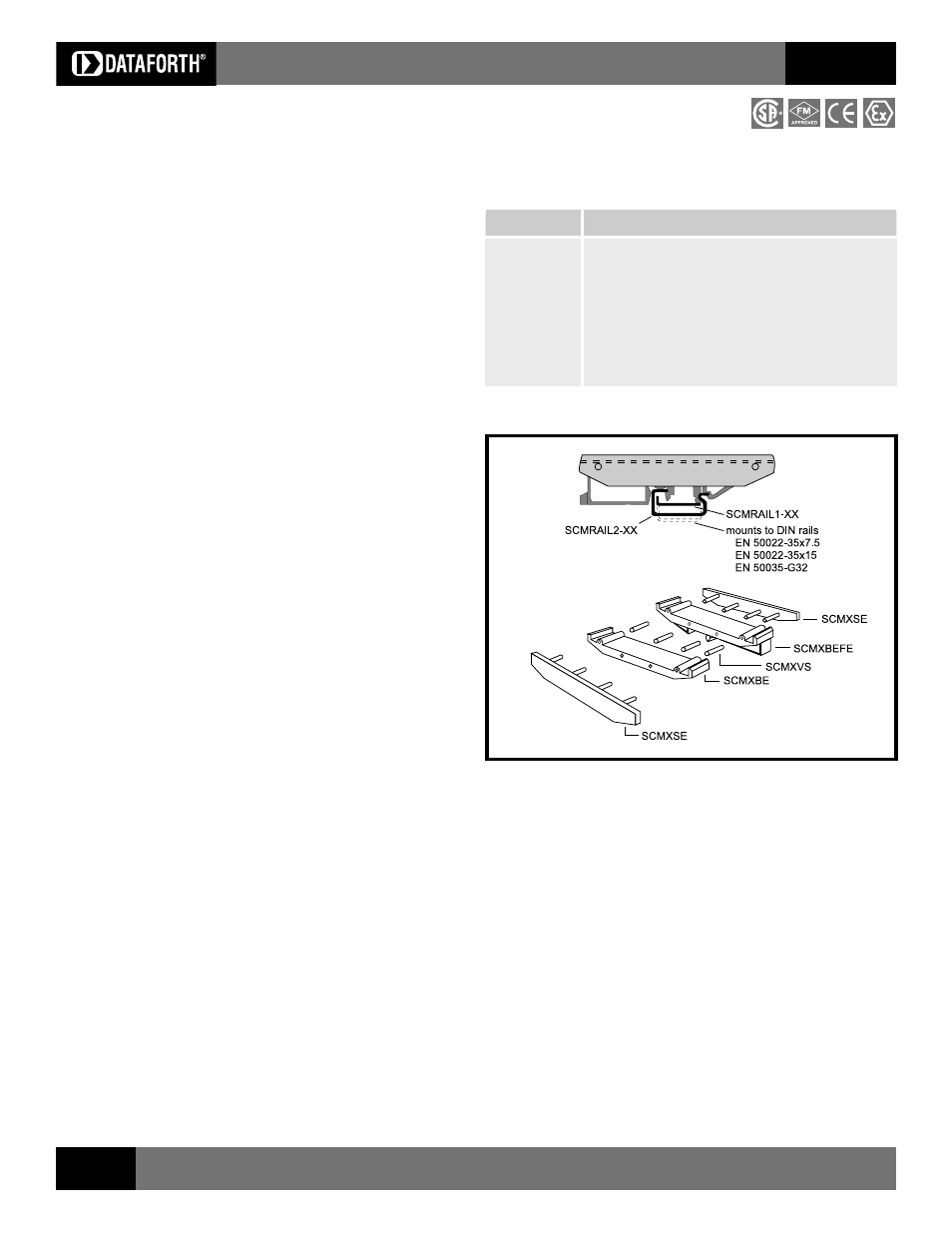

Figure 5: DIN Rail Mounting Elements
Ordering Information
Part Number Description
SCM7BP01 Standard single channel backpanel with standoffs for
mounting.
SCM7BP01-DIN One SCM7BP01 with DIN rail mounting hardware.
Shipped fully assembled. Accepts one SCM7Bxx-xx module.
SCM7BP02 Standard dual channel backpanel with standoffs for mounting.
SCM7BP02-DIN One SCM7BP02 with DIN rail mounting hardware.
Shipped fully assembled. Accepts 2 SCM7Bxx-xx modules.
