Controlled Products Systems Group STRONGARM M30 - Manual (Page 8)

End Cap
Upper Catch Pin Shaft Collar
Restraining strap
Bolt & nut
(Temporary
placement)
Double Restraining
Strap Loops

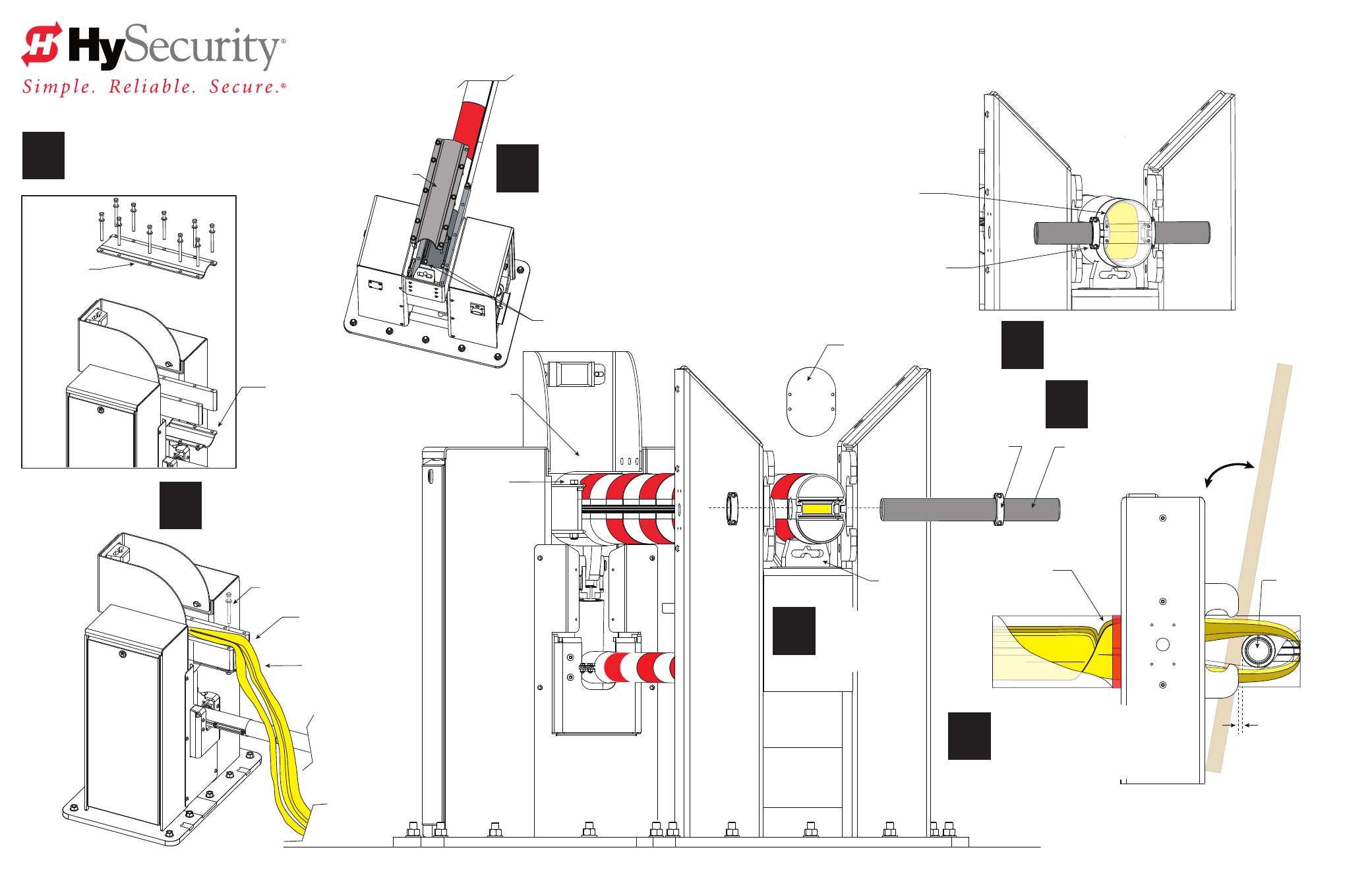

INSTALL M30 ARM
Double Restraining
Strap Loops
Front View
M30 End Cap
Side View
Restraining Straps
Cut away view
3/4 in.
(2 cm)
Upper
Catch
Pin
Tip:
Stretch the strap
using a 2 x 4
(100 x 50)
for leverage.
Shaft collar
Loosen and remove the ten top clamp
fasteners from the M30 Arm Saddle and
set the top clamp and nine fasteners aside.
Top clamp
Bottom clamp
(For clarity: Restraining
strap not shown)
M30 Arm Saddle
Rest the M30 Arm
in its saddle and on
the Catch Post
bumper.
Adjust the Shaft Collars to hold the
pin in place and tighten the set screws
securely.
1
The M30 Arm is very heavy. Use proper lifting techniques
and obtain assistance to install the M30 Arm.
Rest the M30 Arm on the Catch Post’s bumper to
support its weight while you and your assistants
feed the restraining strap through the M30 Arm.
As you set the M30 Arm in its saddle, feed both sets of
the LED Arm Lights through the strain reliefs and into
the electronics side of the Pivot Post.
3
4
Bumper
5
6
7
Position the End Cap and
secure it using four hex head
screws.
M30 Arm Saddle
Strain relief holes in saddle for LED Arm Lights cable wiring
Top clamp
To stabilize the bottom clamp, return
one bolt and nut to the front edge of
the saddle. Keep the bolt loose while
installing the straps and aligning the
upper catch pin.
2
Bolt & washer
As you slide the Upper Catch Pin
through the end of the M30 Arm,
place both of the strap loops around
the Upper Catch Pin.
© 2013 www.hysecurity.com Page 6 StrongArm M30 Installation & Assembly - Link Arms and Install Traffic Light D0432 Rev D
