Controlled Products Systems Group STRONGARM M30 - Manual (Page 4)

Use a 2 x 4 (5.1 x 15.2 cm) cut to the same distance as
the Clear Opening.
© 2013 www.hysecurity.com Page 2
IMPORTANT: Verify measurements.
Because of the nature of the StrongArm M30™, it is critical
to align the opening of the Catch Post with the center of the Pivot Post.
Pivot Post Template Catch Post Template
M30 ASSEMBLE & ALIGN & MARK
Use 2 x 6 (5.1 x 15.2 cm) board for alignment purposes.
Cut the board 2ft (61cm) longer than Clear Opening.
Use Templates
To set the Pivot and Catch Posts in their respective locations, use the
anchor cage templates provided. Measure and cut one 2 x 6 (not provided)
exactly 2ft (61cm) longer than the Clear Opening and measure and cut
one 2 x 4 (not provided) equal to the Clear Opening. Secure both to the
anchor cage templates.
Measure and mark the excavation pit. Mark the
conduit openings and locate the conduit trenches
and rebar cages accordingly.
NOTE: The dashed square lines indicate excavation area
for concrete foundation.*
Sizes shown: 6 x 6 x 2 foot (183 x 183 x 61 cm)
Optional foundation size : 4 x 4 x 4 foot (122 x 122 x 122 cm)
(measurements shown in orange )
NOTE:
If standard lumber lengths are exceeded, two straight pieces may be
screwed together to reach the desired length.
* Measurements based on centering templates on
concrete foundation.
C/L
Roadway
Roadway
StrongArm M30 Installation & Assembly - Assemble & Align Templates & Mark Openings D0432 Rev D
72" (183 cm)
25¾" to C.O.
(65 cm)
72" (183 cm)
31⅝" to C.O.
(80 cm)
C/L C/L
C/L
72" (183 cm)
1
2

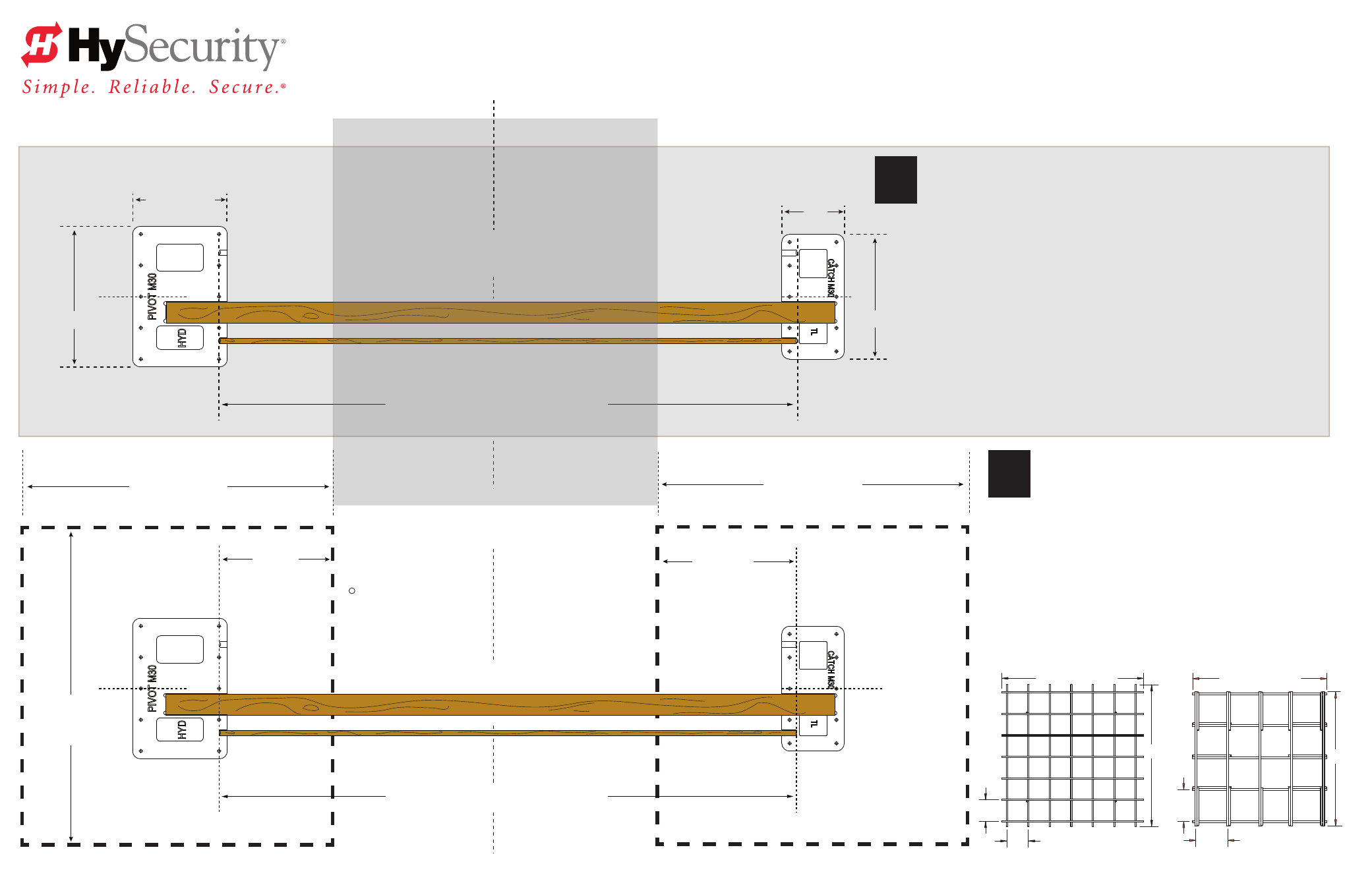

Template Layout: 6 x 6 x 2 foot and 4 x 4 x 4 foot
13¾" to C.O.
(35 cm) for 4 ft cage
19⅝" to C.O.
(50 cm) for 4 ft cage
48" (122 cm) 48" (122 cm)
48" (122 cm)
10 in.
O.C.
10 in.
(25 cm)
O.C.
REBAR CAGE: 6 x 6 x 2
Pivot & Catch post cages identical.
Use #5 rebar, 5/8 in. (40 or better).
66 inches (167 cm)
66 in.
10.0
O.C.
42 in. 10 in.
(25 cm)
O.C.
42 inches (107 cm)
REBAR CAGE: 4 x 4 x 4
Pivot & Catch post cages identical.
Use #5 rebar, 5/8 in. (60 or better).
C/L C/L
36" (91 cm)
24¼" (62 cm)
32" (81 cm)
16"
(41 cm)
CLEAR OPENING
CLEAR OPENING
