© 2013 www.hysecurity.com Page 5

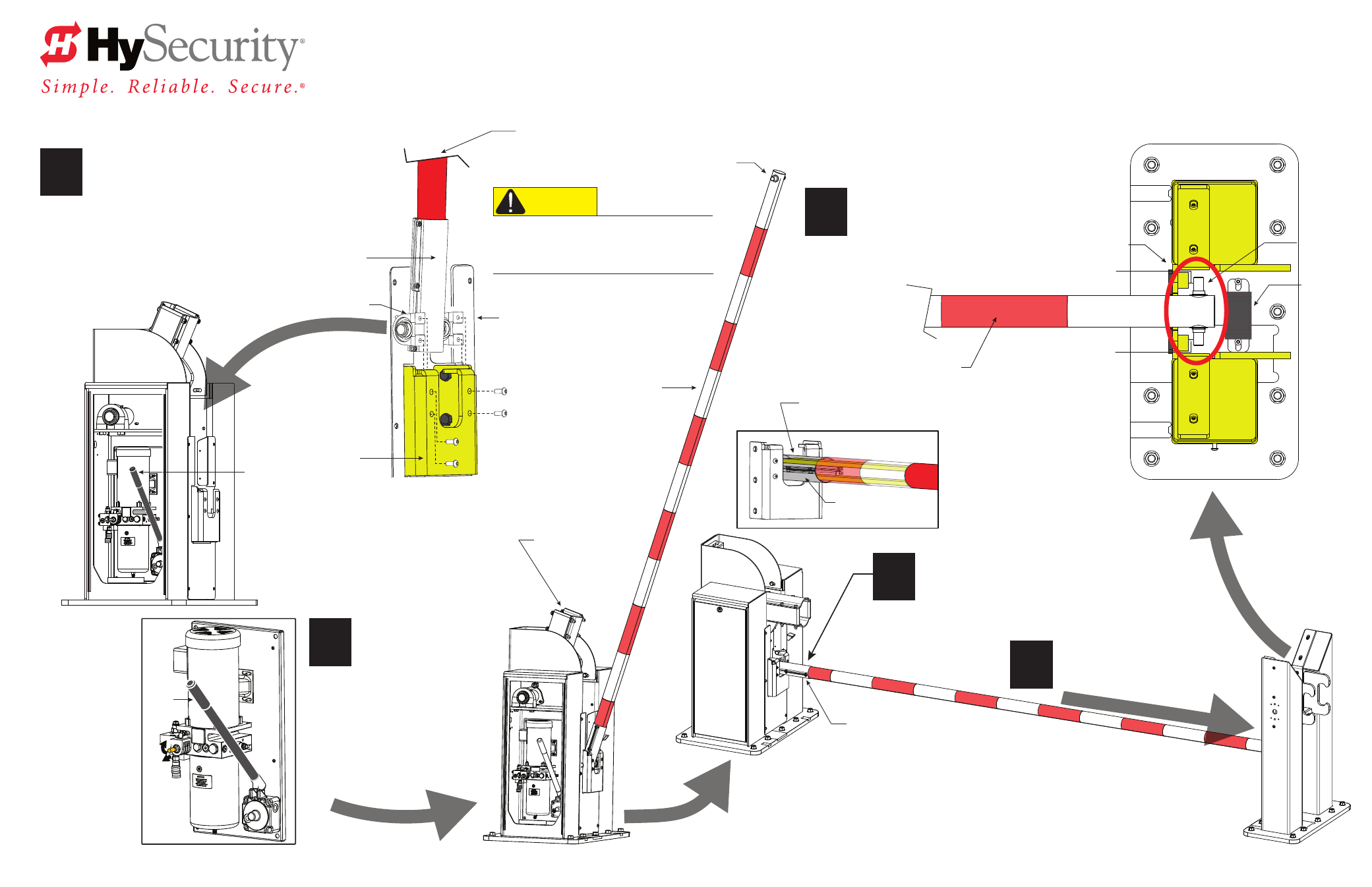

M30 ASSEMBLE BARRIER ARMS
Rest the Lower Arm on
the Catch Post, and then
use the manual pump
handle to lower the
M30 Arm saddle into a
horizontal position.
Mount the Lower Pivot Assembly (comprised of
the lower arm and bearings) into the Pivot Post
enclosure and secure the bearings to the Lower
Pivot Mount with the four buttonhead screws.
Pump
Handle
1
2
Open
Valve
Loosen, but DO NOT remove,
the six bolts and nuts on
the Lower Pivot Assembly.
Lower Pivot
Assembly
Bearings
Lower Pivot
Mount
Lower Arm
Loosen and remove the
four button head screws from the
bearings prior to installing the lower arm.
Hand Pump
M30 Arm Saddle
Slide the Lower Arm to obtain
¾-inch clearance at the Catch Post.
¾-in. (2 cm) gap
¾-in. (2 cm) gap
Bumper
for M30
Arm
Lower Arm
Lower
Catch Pin
Overhead View
Lower Catch Pin
Restraining strap
not shown Pivot Post
1
2
3
Catch Post
Lower Arm
4
5
Lower Arm Saddle
Top Clamp
Lower Pivot
Assembly
CAUTION
Prevent potential injury! Remove the Lower Catch
Pin BEFORE installing the Lower Arm. If it is not
removed, it may slide out of the Lower Arm during
installation and drop onto personnel or equipment.
Lower Catch Pin
With the gap clearance set at
approximately ¾-inches between
the Lower Catch Pin and Post, securely
tighten the top clamp on the Lower Pivot Assembly.
StrongArm M30 Installation & Assembly - Assemble Barrier Arms D0432 Rev D
