Motor / Drive Belt Access

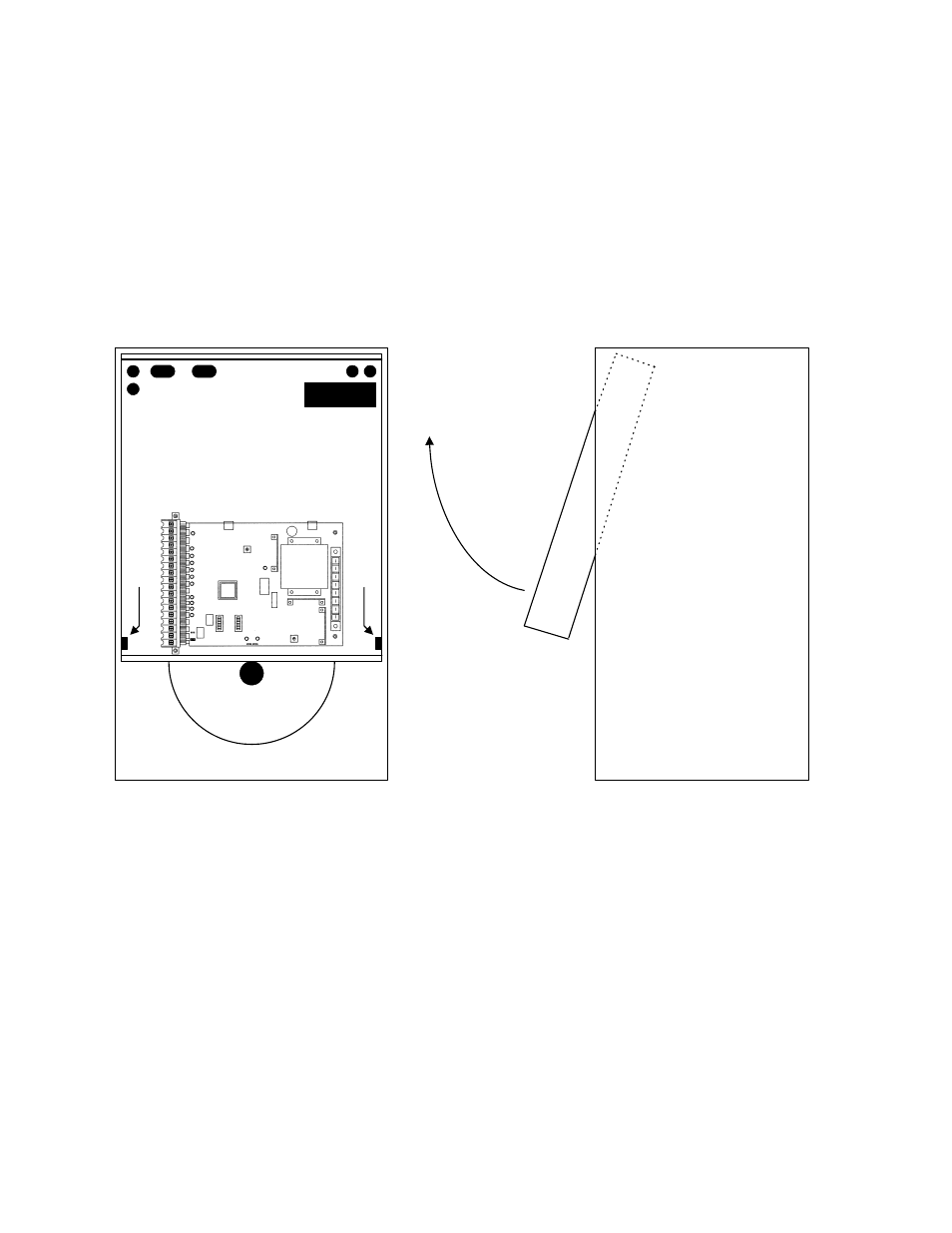

To gain access to the inside of the gate operator, loosen the two bolts on each side of the electrical
panel at the bottom. The entire panel can then swing up for easy access into the operator.
CAUTION!! Be sure power is OFF before accessing the inside of the operator. Be sure that the
electrical panel is secured in the up position - it will not stay in this position by itself.
Loosen Loosen
Figure 29
Page 50 9150-065-D-5-07
