1.2.3 Rear Position Pad or Post Mount
• Set one chain idler at the top
position and one chain idler at
the center position on the same
side of the operator.
• Remove the top and bottom
chain knockouts from the side of
the operator.
• Chain enters and exits the
operator from the same side.
Chain is attached to one end of
the gate.
• This mounting method hides the
chain when looking at the gate
from the front.
•

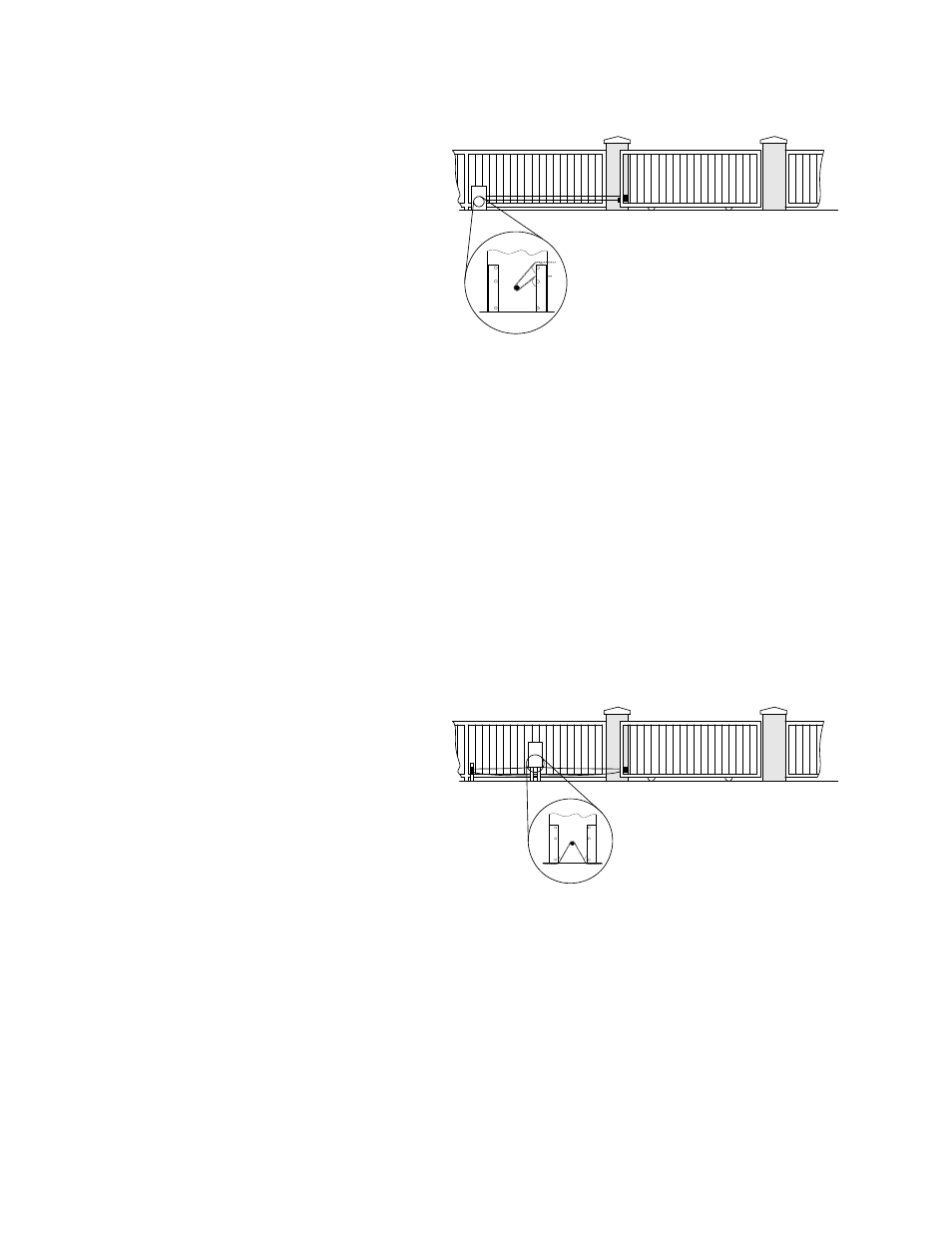

Figure 4
ADDITIONAL HARDWARE REQUIRED: Endless Idler Assembly P/N 2600-818. Additional
length of #40 Chain P/N 2600-442 (20 ft.). Note: additional chain may be required depending
on the length of the gate.
• If operator is post mounted: Post Mount Base Plate P/N 2600-495 and two (2) 6” x 6” steel
mounting post at least three feet in length. Mounting post are not available from DoorKing.
1.2.4 Center Position Post Mount
•
•
move chain knockouts.
8.
Set both chain idlers in the bottom
position.
DO NOT re
Using this mounting method, the
chain enters and exits the
operator from the bottom.
• Chain passes through the
operator and is attached to one
end of the gate.
• This mounting method allows for
the use of chain support
attached to the gate. This is useful with long gates and helps prevent chain “stretching.”
• ADDITIONAL HARDWARE REQUIRED: Two (2) Endless Idler Assemblies P/N 2600-81
Figure 5
Additional length of #40 Chain P/N 2600-442 (20 ft.). Note: additional chain may be required
depending on the length of the gate. Post Mount Base Plate P/N 2600-495 and two (2) 6” x
6” steel mounting post at least three feet in length. Mounting post are not available from
DoorKing.
9150-065-D-5-07 Page 17
