5.3 Reverse Arm UP and DOWN Positions
The operator has been setup from the factory to have the access door opposite the traffic lane.
If the operator has been installed with the access door facing the
traffic lane, the am will operate in the reverse direction from
the factory setup. The UP and DOWN magnet positions
must be reversed on the limit plate.
Operators equipped with the convenience
open system must adjust the DC
limit assembly (See below).
Slide the DC limit assembly down
the linking arm to align with the
DC limit sensor when the arm is
in the UP position.
Note: DC limit sensor is used to
hold the arm in the UP position
during an AC power failure.
DC Limit
Assembly
Factory
Position
DC Limit
Sensor
UP
Position
of Limit
Plate
DOWN
Position
of Limit
Plate

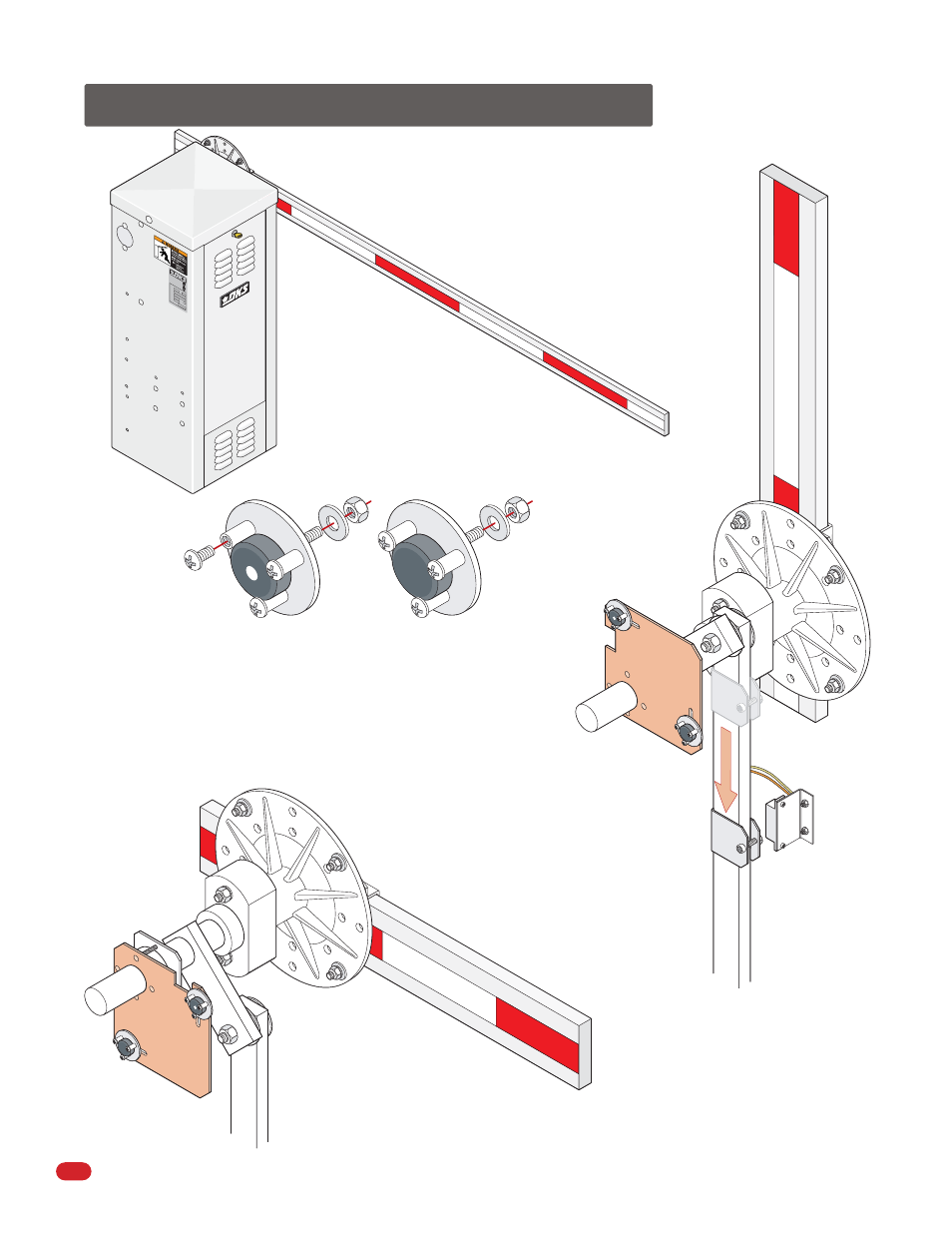

Reverse the positions of the magnets on the limit plate.
The white dot will be visible on the DOWN assembly
magnet ONLY.
Be careful when reversing assemblies
not to damage circuit board.
DOWN Assembly
Magnetic Limit Assemblies
Convenience Open System
DOWN
Limit Plate
DOWN
UP
Limit Plate
UP
UP Assembly
CLA SS
CE RT IFIED TO CA N/C SA C 22. 2 N O. 24 7
CO NFO RM S TO AN SI/U L-32 5 VEH ICU LAR GAT E O PE RA TO R HP
533 82 MO DEL SER IAL VO LTS
PH ASE AM PS
60 Hz
MA X GA TE L OA D Doo rK ing , I nc., I ngle wo od, CA
Access
Door
Facing
Traffic
Arm Shaft
Note: Magnets
can be removed
from assemblies
with 3 screws
and flipped over
to show or hide
the white dot.
Linking Arm
Arm Shaft
