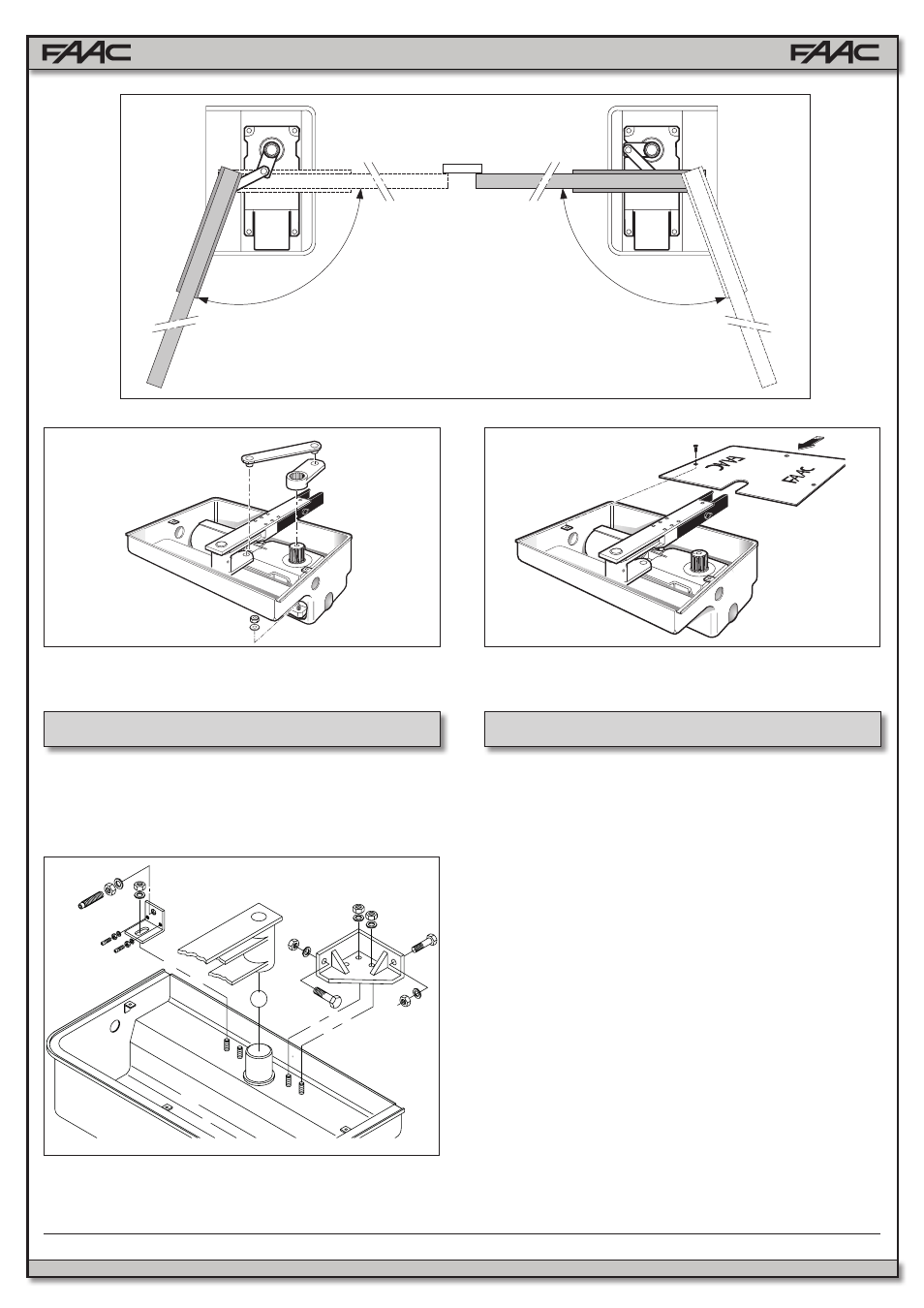

9 FAAC Model 770 24V Underground Swing Gate Operator
1. Program the electronic control unit according to your
requirements, following the relevant instructions.
2. Connect the system to the power supply and check
the status of the LEDs (refer to the instructions for
the electronic control unit).
3. Carefully test the operation of the automation
system and of all connected accessories, paying
particular attention to the safety features.
5. START-UP
Fig. 14 Fig. 13
11
0°m
ax
11
0°m
ax
Fig. 12
4. POSITIVE STOPS (optional)
Optional mechanical positive stops can be installed in the
load bearing box as indicated in Fig. 15. They can be ad-
justed to properly limit the gate leaf travel.
Fig. 15
