11 FAAC Model 770 24V Underground Swing Gate Operator
770 24 V Table
PARTS LIST
1/1/1900 Start Date
1/1/9999 End Date
770 24 VDC Code
ATTUATORE ELETTROMEC.
INTERRATO CANCELLI
Description
Page 1
Pos. Code Qty. Q.ty
per
Avaibility Description
001 770770 1 1 Y 770 24V MOTOR
002 716078 1 1 Y 770 GEAR BOX
004 727158 1 1 Y 770 GEAR BOX COVER
007 718076 1 1 Y SW.G.O.THIRD INTERNAL SHAFT GROUP
008 719165 1 1 Y SW.G.O. 770 INTERNAL SLOW SHAFT
010 390451 0 1 Y 770 SEAL KIT

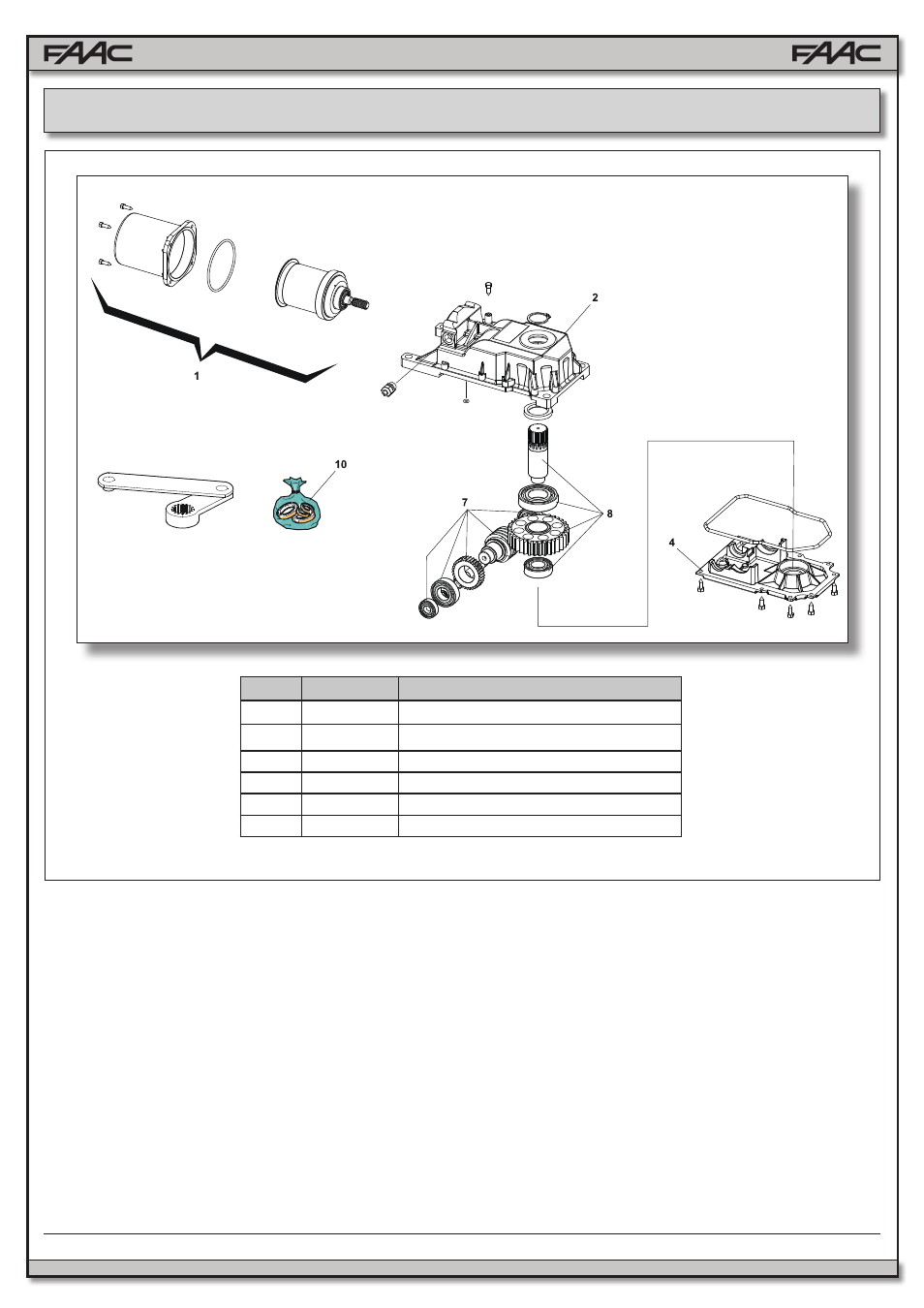

9. 770 PARTS DIAGRAM
POS. P/N DESCRIPTION
01 770770 770 24V MOTOR
02 716078 770 GEAR BOX
04 727158 770 GEAR BOX COVER
07 718078 SW. G. O. THIRD INTERNAL SHAFT GROUP
08 719165 SW. G. O. 770 INTERNAL SLOW SHAFT
10 390451 770 SEAL KIT
