9 FAAC Model 390 24V Articulated Arm Swing Gate Operator

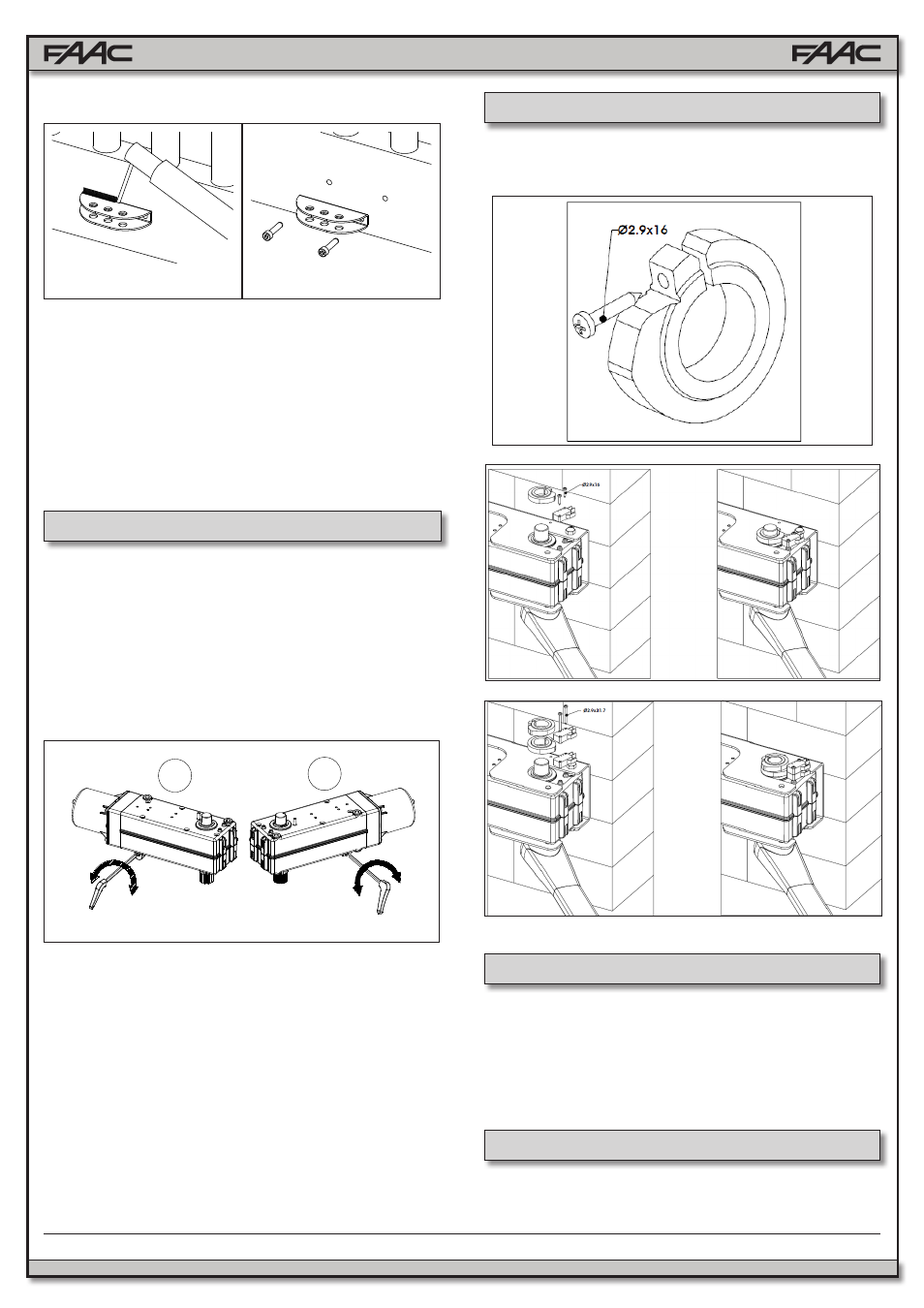

Fig. 13
Fig. 11 Fig. 12
DX SX
UNLOCK UNLOCK
LOCK LOCK
5. MANUAL OPERATING MODE
If the gate has to be operated manually in the event of a
power-cut or fault to the automation, use the release device as
follows.
To release the operator:
Fit the supplied Allen wrench and turn it approximately one
half turn (or until it stops) in the direction shown in Fig. 13,
depending on installation type.
7. MAINTENANCE
To re-lock the operator:
To avoid an involuntary pulse from activating the gate during
the manoeuvre, turn the power off before re-locking the opera-
tor.
Fit the supplied Allen wrench and turn it approximately one half
turn until it stops, in the direction shown in Fig. 13, depending
on installation type.
Perform the following maintenance tasks at least once every six
months:
•
Check that motor torque is correctly set.
• Check efficiency of the release system.
• Check efficiency of safety devices.
The operator accepts the installation of up to two optional
limit switch kits (p/n 390682). To install them see the pictures
below:
8. REPAIRS
6. OPTIONAL LIMIT SWITCHES
For repairs, contact an authorized FAAC repair center.
4.4. AUTOMATION TESTING
• Once all necessary electrical connections have
been made, power up the system and program the
control unit based on your individual needs (see
relevant instructions).
• Perform a test of the automated system and of all
connected accessories, paying special attention
to safety devices.
