FAAC Model 390 24V Articulated Arm Swing Gate Operator

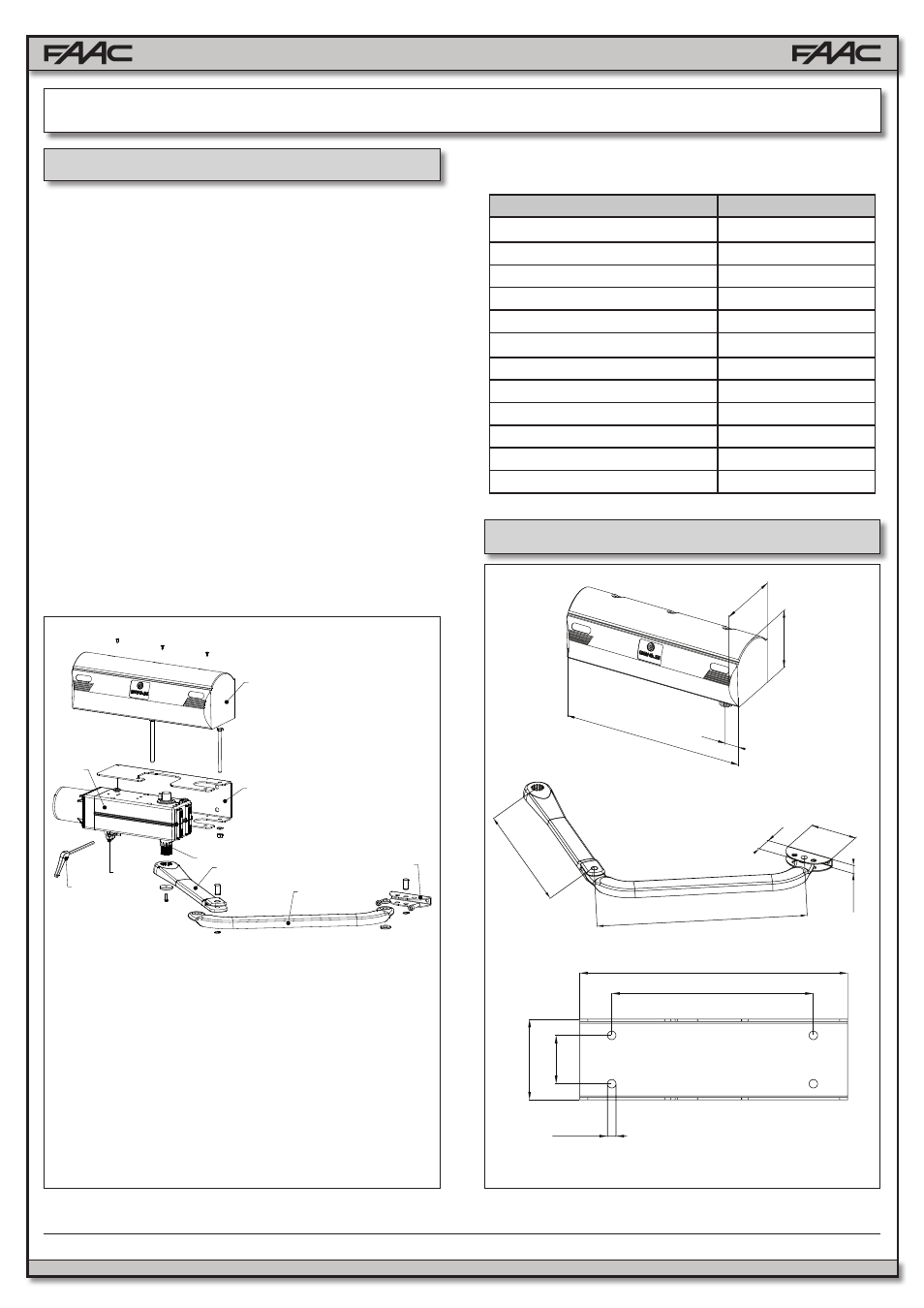

Fig. 1

Fig. 2

The FAAC 390 24v Operator is an automatic gate operator

for a residential swinging gate leaf that is ideal for large

columns. The self-contained 390 24v Operator consists

of an irreversible electromechanical motor and articulated

arm.
The 390 24v Operator locks the gate in the fully opened

and fully closed positions, however additional external locks

are recommended if true security is needed or if the length

of the gate leaf is 6 ft or longer.
For the protection and proper operation of the 390

Operator, optional limit switches are available.
The 390 24v Operator includes built in reverse on contact

and a torque adjustment that controls the force transmitted

to the gate leaf through the operator.
The Manual Release mechanism is a key-operated device

that disengages (or engages) the gears in the 390 24v

Operator. When the drive is disengaged, you can open and

close the gate leaf by hand.
The FAAC 390 was designed and manufactured to

control access of vehicles. Avoid any other use what

so ever.

• Measurements in Inches

1) Guard
2)

Operator securing base-plate

3)

Release wrench

4) Release
5) Gearmotor
6)

Transmission shaft

7)

Straight lever of articulated arm

8)

Curved lever of articulated arm

9)

Front coupling

1

2

3

4

5

6

7

8

9

MODEL

390

Power Supply

24V DC

Power

40 W

Current Absorption

2 A

Max Torque

147 lbf.ft

Max Leaf Length

14 feet

Hourly cycles at 68 °F (approx)

100

Class of operation

Residential

Reduction Ratio

1:700

Angular Velocity

8°/sec

Ambient Temperature

-4°F to +131°F

Weight

25.5 lbs

Protection Class

IP44

1.

DESCRIPTION & SPECIFICATIONS

TABLE 1 : TECHNICAL SPECIFICATIONS

2. DIMENSIONS

5⅛

5⅛

16⅛

2⅜

15⅜

18⅞

2⅜

4

13

9⅞

Model 390 24V Articulated Arm Swing Gate Operator
