3. Network Variable Control 20
The example in Figure 7 uses multiple Directory Objects with multiple Modem Controller Objects.

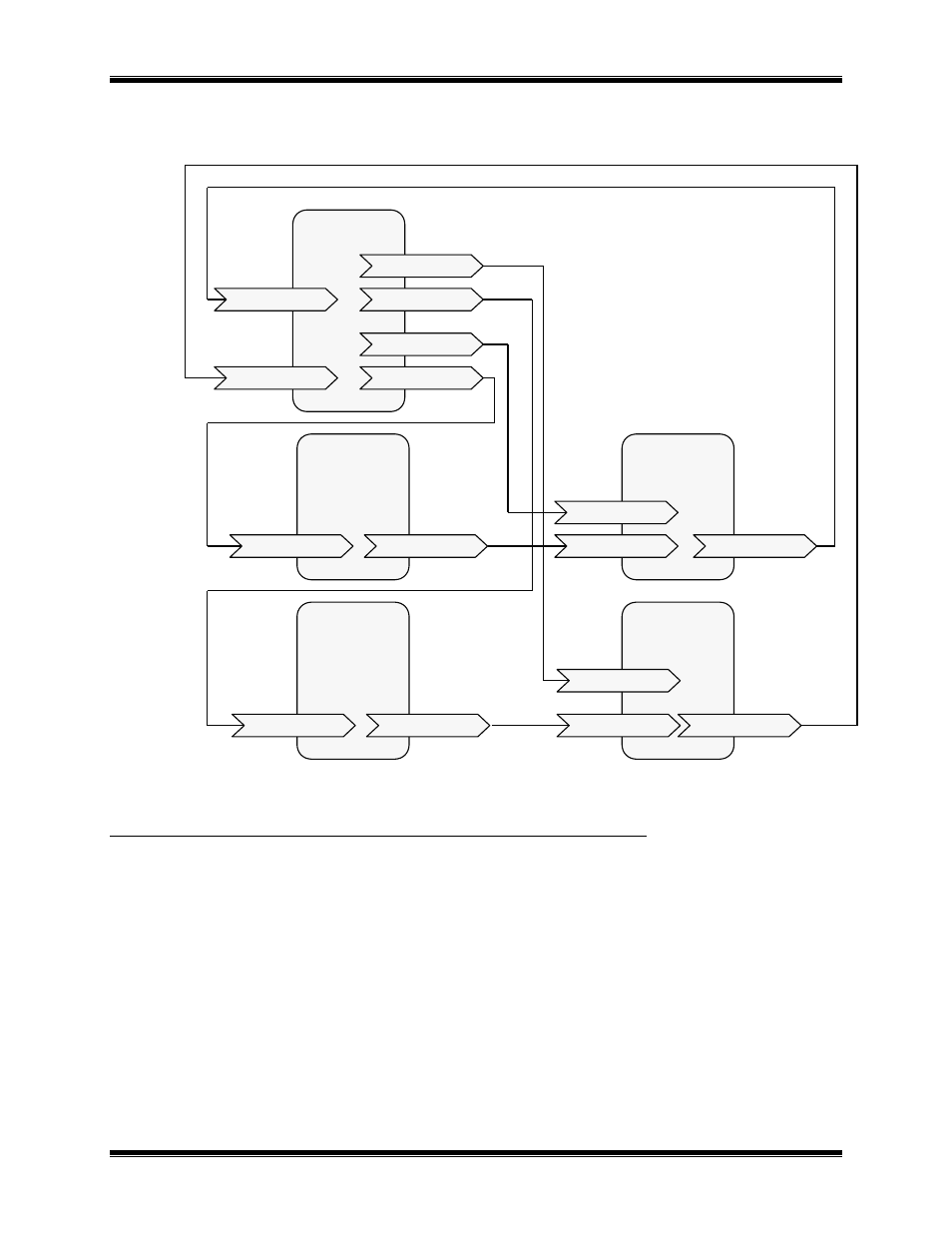

Figure 7 Multiple Directory Objects with Multiple Modem Controller Objects
M ODEM C ONTROLLER O BJECT
The Modem Controller Object is used to control the functions of the NCB Module’s data modem. These
functions include configuration, connection control, and connection status. Two Modem Controller Objects are
available, depending on the NCB model being used. ‘Internal Modem’ is for use with the NCB-IM. ‘External
Modem1’ and ‘External Modem 2’ are for use with the NCB-EM and NCB-IS. All Modem Controller Objects
have identical network variable inputs and outputs.
Phone Book
Object 1
Some Alarm
Device
nviReqDialStr1 nvoDialStr1
Modem
Controller
Object 1
nviDialStr1
nviCallCancel1
nvoConnectStat1
nvoCallCancel1
nvoReqDialStr1 nviConnectStat1
Phone Book
Object 2
Modem
Controller
Object 2
nvoCallCancel2
nvoReqDialStr2 nviConnectStat2
nviReqDialStr2 nvoDialStr2 nviDialStr2
nviCallCancel2
nvoConnectStat2
