6 • EN

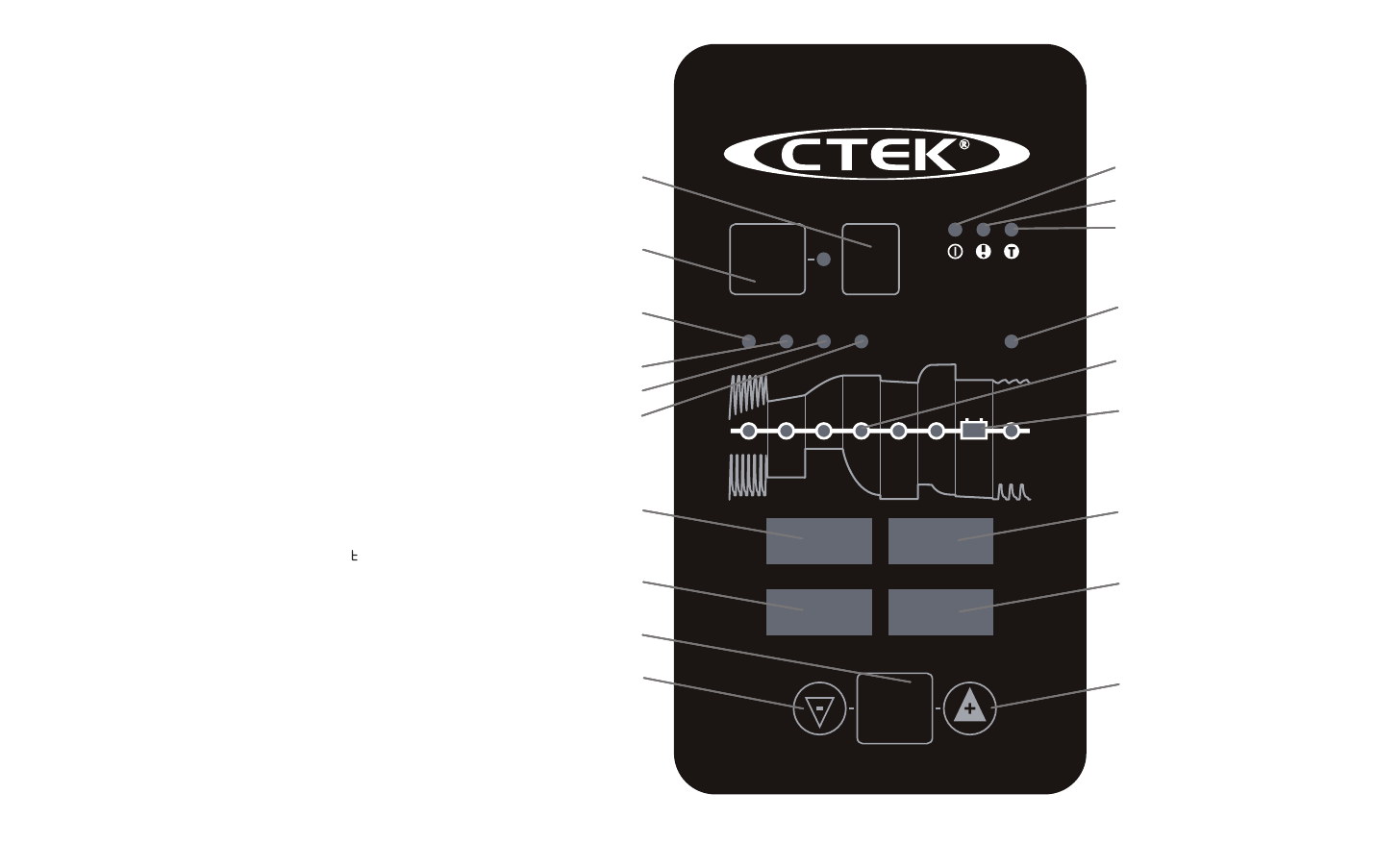

SET
A
Ah & info
V
h
1 2 3 4 5 6 7 8
NORMAL Ca/Ca BOOST AGM SUPPLY
STOP
12V/70A
24V/50A
MXTS 70
START
STOP
MODE
FULLY ChARGED
POWER LAMP
ERROR LAMP
TEMPERATUR SENSOR LAMP
START/STOP-BUTTON
MODE-BUTTON
NORMAL PROGRAM
DISPLAY (V)
SET-BUTTON
DECREASE BUTTON
INCREASE BUTTON
DISPLAY (h)
DISPLAY (A)
DISPLAY (Ah & info)
SUPPLY PROGRAM
AGM PROGRAM
Ca/Ca PROGRAM
BOOST PROGRAM
READY TO START
ChARGING
for best possible charging of your batteries the voltage and current is
adjustable. in addition to that temperature compensated charging is
selectable. See below how to set the parameters for customized charging.
1. Connect the charger cables to the charger
(see quickguide)
2. Connect the charger to the battery
(see quickguide)
3. Connect the charger to the mains supply
The power lamp will indicate that the mains cable is connected to the
mains supply. The error lamp will indicate if the battery clamps are
incorrectly connected. The reverse polarity protection will ensure that
the battery or charger will not be damaged.
4. Turn on the mains switch
5. Press the MODE-button to select charging program
6. Press SET-button to set parameters
7. Select voltage
•Display (h) will indicate that voltage ( U ) is selectable
•Display (v) will indicate set voltage
•press +/- to change
•press SET-button to confirm
8. Select current
•Display (h) will indicate that current ( A ) is selectable
•Display (A) will indicate set current
•press +/- to change
•press SET-button to confirm
9. Select temperature compensation
•Display (h) will indicate that temperature compensation ( ) is selectable
•Temperature sensor lamp will indicate activated temperature sensor
•press +/- to change
•press SET-button to confirm
10. Press the START/STOP-button to start charging cycle
or press MODE-button to change charging program
11. Follow the 8-step display through the charging
process
The battery is ready to start the engine when STEp 4 is lit. The battery
is fully charged when STEp 7 is lit.
12. Stop charging at any time by pressing the START/
STOP-button
13. Press START/STOP-button to start charging cycle
