CTEK MXS 5.0 TEST AND CHARGE - Manual

EN • 3
EN
CONGRATULATIONS
on the purchase of your new professional switch mode battery charger and tester. This
charger and tester is included in a series of professional chargers from CTEK Sweden AB
and represents the latest technology in battery charging and testing

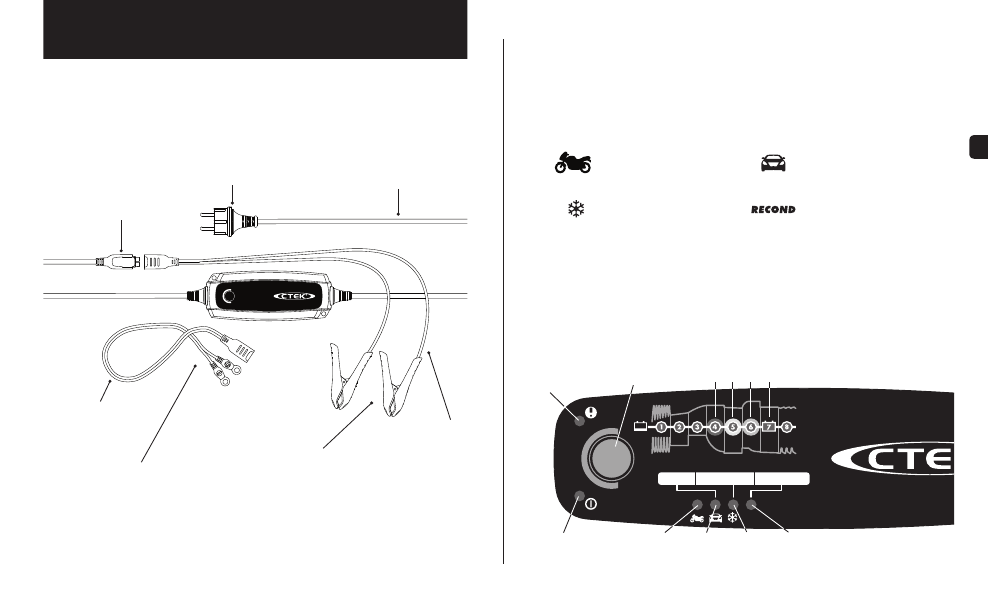

CTEK COMFORT CONNECT – eyelet M6
CTEK COMFORT CONNECT
MAINS CABLE
H05RN-F Rubber
CTEK COMFORT CONNECT – clamp
CHARGE CABLE
H05RN–F Rubber
SUPPLY PLUG*
* Supply plugs may differ to suit your wall socket.
HOW TO CHARGE
1. Connect the charger to the battery. Lamp 4, 5 and 6 now start flickering indicating
VOLTAGE TEST PROGRAM. Ignore this and continue with the next step.
2. Connect the charger to the wall socket. The power lamp will indicate that the mains
cable is connected to the wall socket. The error lamp will indicate if the battery clamps
are incorrectly connected. The reverse polarity protection will ensure that the battery
or charger will not be damaged.
3. Press the MODE-button (3) to select charging program.
SMALL BATTERY PROGRAM NORMAL BATTERY PROGRAM
Continue to press the MODE-button to combine charging program with charging options.
COLD WEATHER OPTION REC OND OPTION
Press the MODE-button several times until the desired combination of charging program
and options are lit.
4. Follow the 8-step display through the charging process.
The battery is ready to start the engine when STEP 4 is lit.
The battery is fully charged when STEP 7 is lit.
5. Stop charging at any time by disconnecting the mains cable from the wall socket.
Note: If the charger indicates START POWER lamp (10) and BAD lamp (4) press
MODE-button for 2 sec to exit VOLTAGE TEST PROGRAM.
MANUAL
HPN Rubber Cable
HPN Rubber Cable
MODE
RECOND
BATTERY ALTERNATOR START POWER
VOLTAGE TEST PROGRAM
12V/5A
MXS 5.0 TEST&CHARGE
2
1 8 9 10 11
3 5 4 6 7
