CONGRATULATIONS
on the purchase of your new professional switched mode battery charger and bat-
tery check instrument. This charger is included in a series of professional chargers from
CTEK SWEDEN AB and represents the latest technology in battery charging.

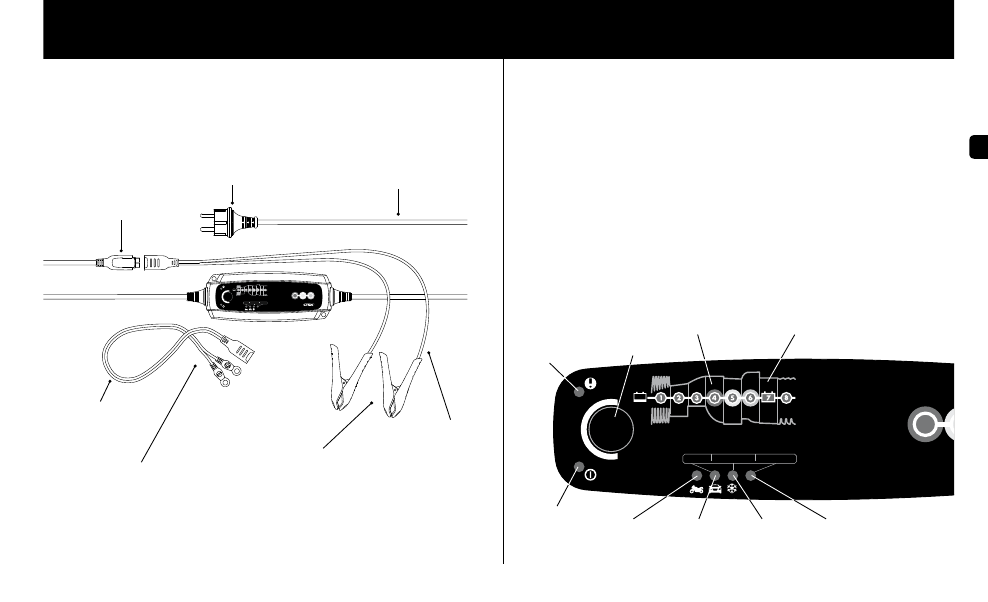

CTEK COMFORT CONNECT – eyelet M6
MODE
RECOND
BATTERY START POWER ALTERNATOR VOLTAGE CHECK PROGRAM MXS 5.0 CHECK BY
CTEK COMFORT CONNECT
MAINS CABLE
H05RN-F Rubber
CTEK COMFORT CONNECT – clamp
CHARGE CABLE
H05RN–F Rubber
SUPPLY PLUG*
* Supply plugs may differ to suit your wall socket.
ERROR LAMP
FULLY CHARGEd REAdY TO USE
POWER LAMP
HOW TO CHARGE
1. Connect the charger to the battery. Lamp 4, 5 and 6 now start flickering indicating
VOLTAGE CHECK PROGRAM. Ignore this and continue with the next step.
2. Connect the charger to the wall socket. The power lamp will indicate that the mains
cable is connected to the wall socket. The error lamp will indicate if the battery clamps
are incorrectly connected. The reverse polarity protection will ensure that the battery
or charger will not be damaged.
3. Press the MODE-button to select charging program.
4. Follow the 8-step display through the charging process.
The battery is ready to start the engine when STEP 4 is lit.
The battery is fully charged when STEP 7 is lit.
Stop charging at any time by disconnecting the mains cable from the wall socket.
Note: If the charger indicates START POWER VOLTAGE CHECK PROGRAM lamp
and BAD lamp press MODE-button for 2 sec to exit VOLTAGE CHECK PROGRAM.
MOdE-BUTTON
MANUAL
HPN Rubber Cable
HPN Rubber Cable
SMALL
BATTERY
PROGRAM
NORMAL
BATTERY
PROGRAM
COLd
WEATHER
OPTION
RECONd
OPTION
