XNET Network Video Server User’s Guide
y MIC /LINE IN : Connect external audio source or microphone. If external audio is
connected, embedded microphone will be disabled.
Use Standard stereo earphone jack for the connection
Audio In
Ground
Not used
Audio In
Ground
Not used
Audio out
Ground
Not used
Audio out
Ground
Not used

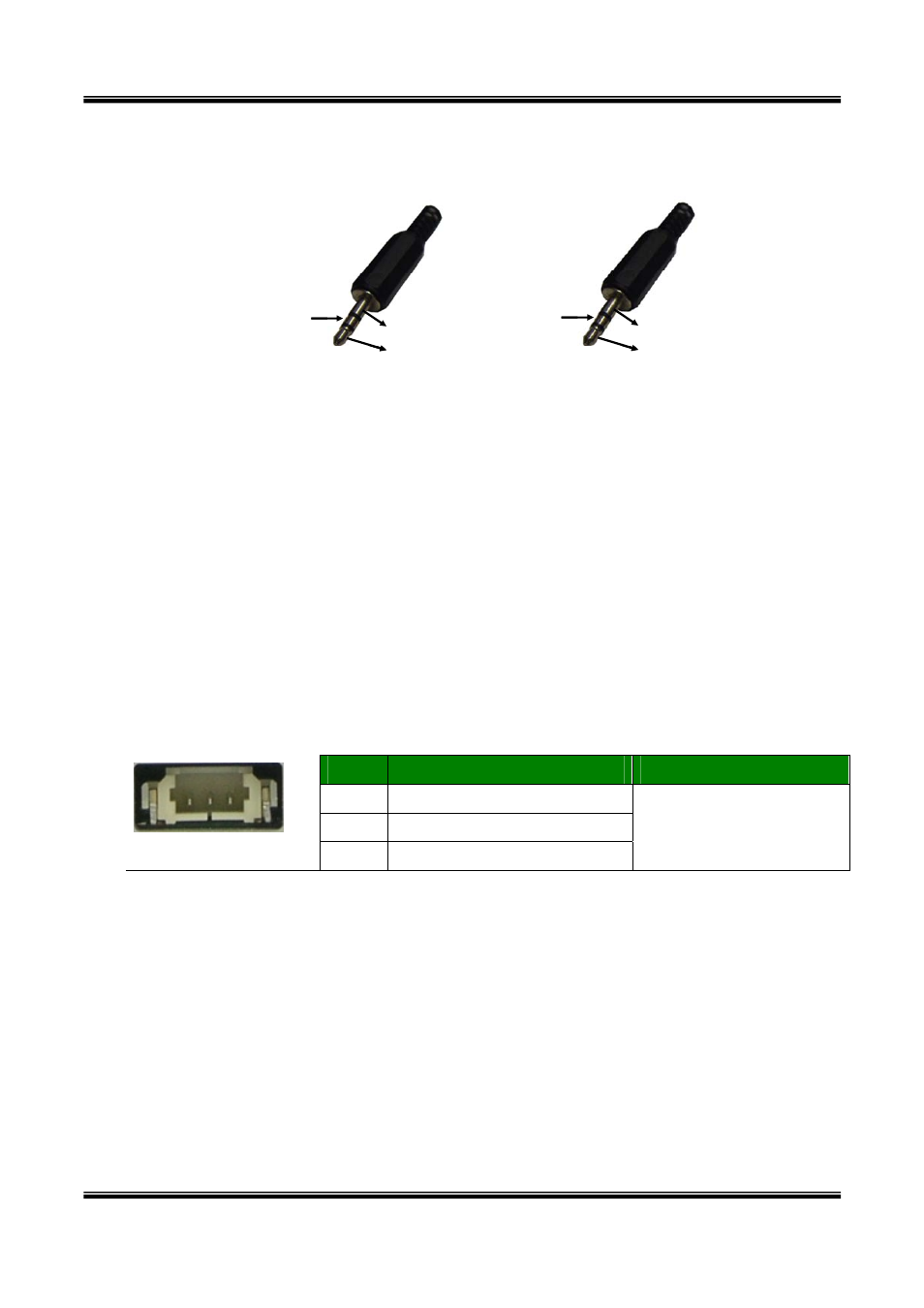

Figure 2-3. Pin assignment of the plug for MIC/LINE In (left) and
LINE OUT (right)
y LINE OUT : Connect speakers with built in amplifier. Audio from remote site is output
through Line out in bi-directional audio mode.
Use Standard stereo earphone jack for the connection.
y NETWORK : 10/100Mbps Ethernet connector (RJ-45) with proprietary PoE.
- LINK/ACT LED : Continuous yellow light means that network cable is plugged in. It will
blink when there is traffic.
- Status LED: Green LED on indicates that the camera is in normal operation mode, while
LED off indicates that the camera is in abnormal condition.
y RS-232C
Pin Description Misc.
3 TxD of RS-232C
2 RxD of RS-232C
1 2 3 1 Ground of RS-232C
For debugging & factory
use only.
y DC Power : Power input of XNET.
Do not apply power through this power input when power is applied through LAN cable
using proprietary PoE.
