XNET Network Video Server User’s Guide
• Mosaic phenomenon.
Mosaic phenomenon occurs when not enough network bandwidth is available considering the
resolution and frame rate of the video.
Example is 704x480 video with low Max. upload rate.
Users are recommended to adjust resolution and frame rates to lower values for lower
bandwidth network.
6.3. Web Viewer
XNET is designed to be connected through internet explorer, too. For connection to XNET using
internet explorer type in IP address or host address in the address input field of the internet
explorer.

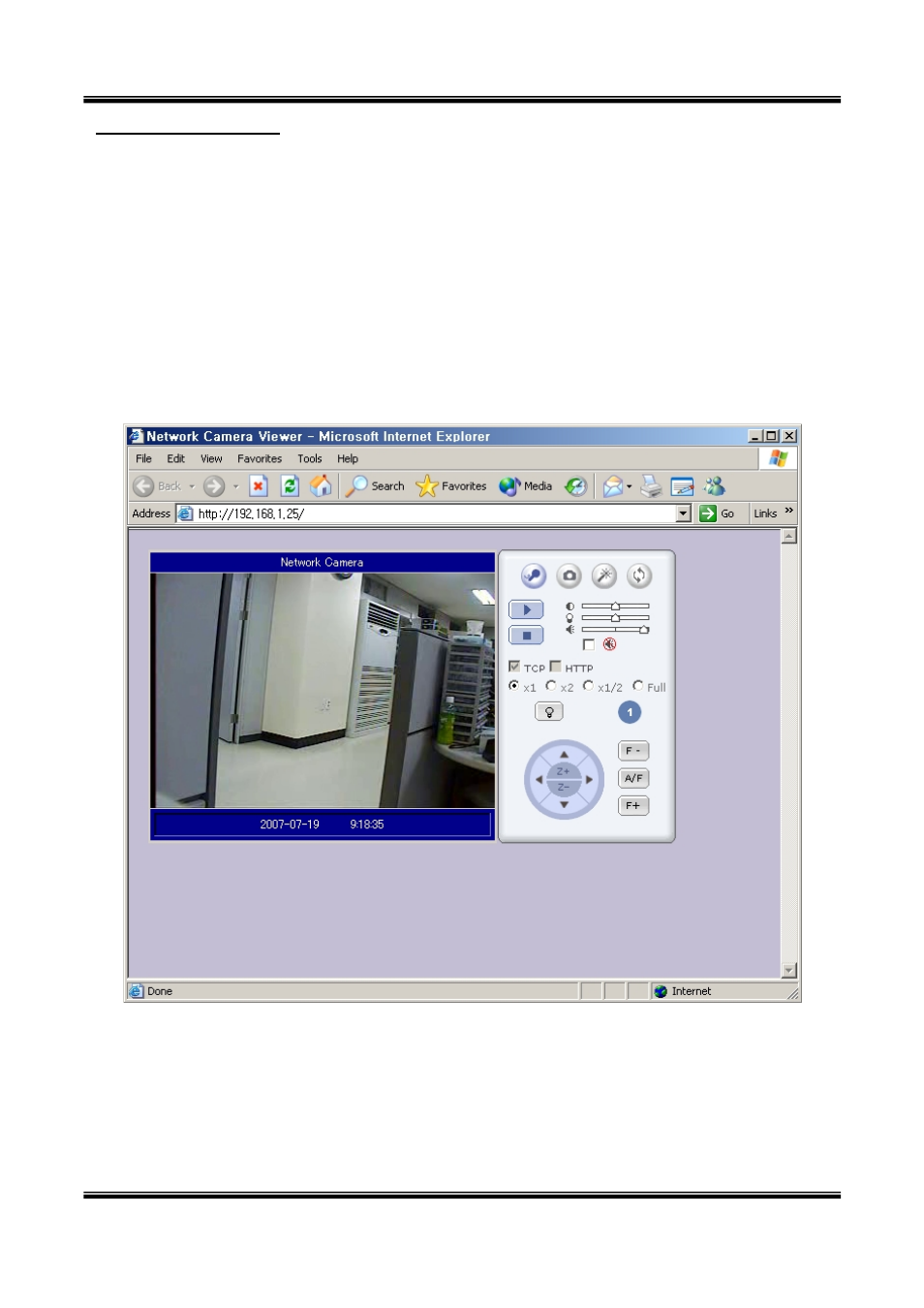

Figure 6-4. Web Viewer of XNET
z Control Panel of Web Viewer
