XNET Network Box Camera User’s Guide
2.3. Physical Description

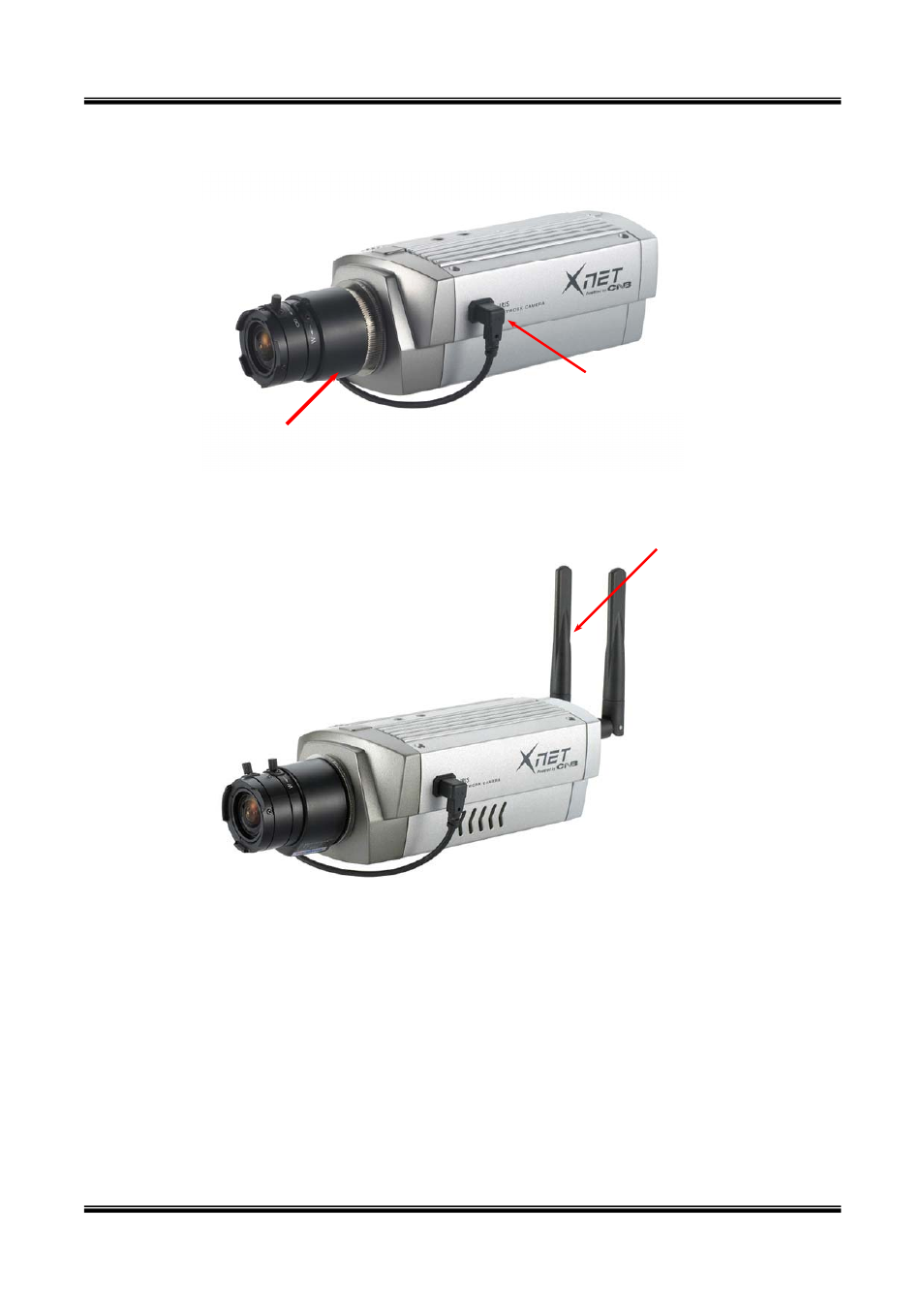

2.3.1. Side View
Lens
Auto-Iris Control
Figure 2-1. Side view of IG Series (Wired LAN)
Antenna
Figure 2-2. Side view of WG Series (Wireless LAN)
y
L
XNET/XNET-Wireless basically delivered without Lens assembly. Standard C or CS type
lens can be accommodated into XNET/XNET-Wireless. Either DC Iris lens or Non-DC Iris lens
can be used with XNET/XNET-Wireless.
ens:
uto-
nten
y
A
Iris Control: Plug in the cable from standard DC-Iris lens.
y
A
na: This antenna is used only for the XNET-Wireless cameras(WG Series) to transmit
images via wireless network.
