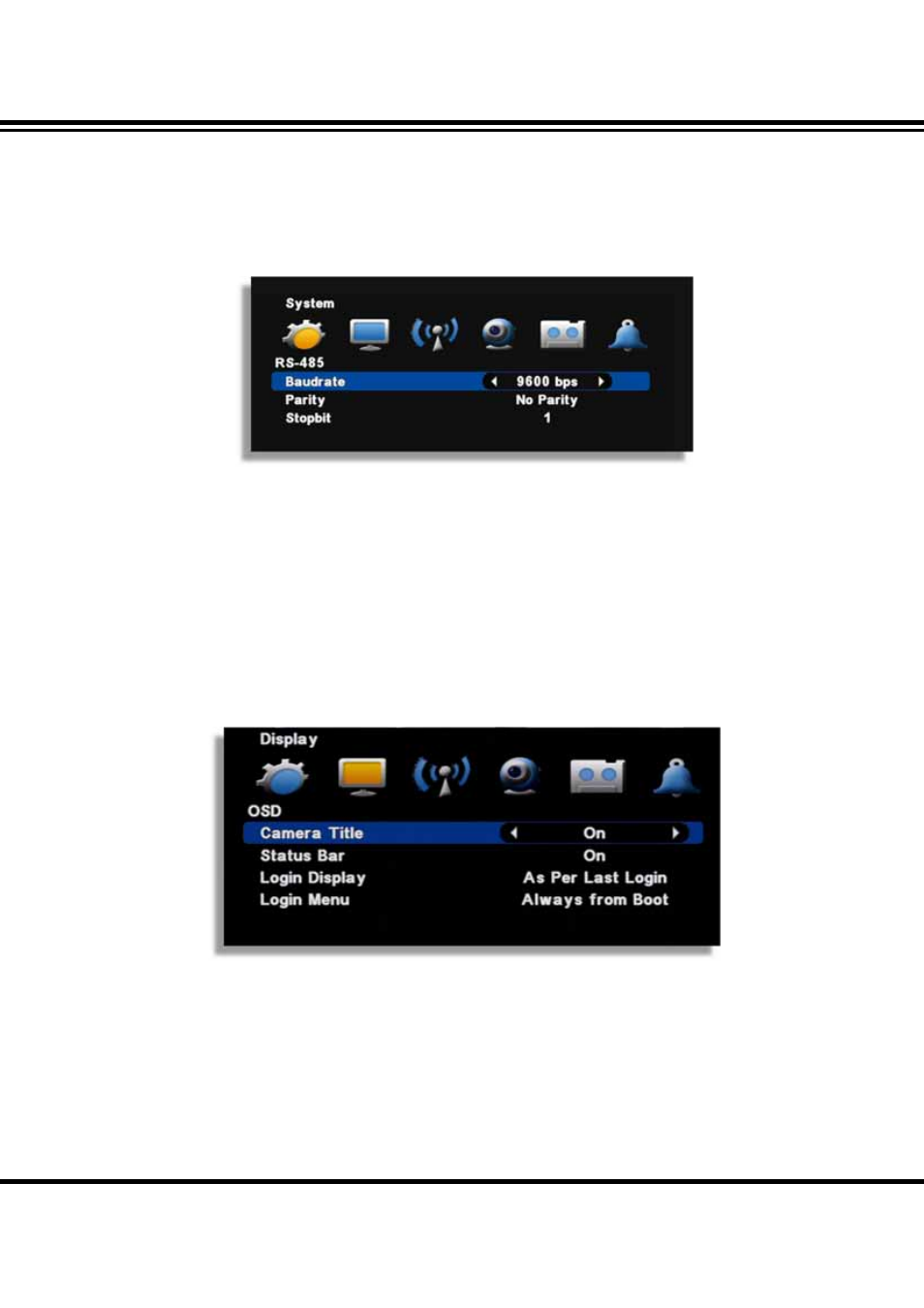

3-8. RS-485
In order to control the PTZ camera or control keyboard, DVR supports RS-485 port.
Baudrate /Parity /Stopbit : Refer to the manual of “Keyboard” or “PTZ camera”
▒ Chapter 4. Display ▒
4-1. OSD (On Screen Display)
[1] Camera Title : ON / OFF
[2] Status Bar : ON / OFF.
[3] Login Display : Select a login option
• As Per Last Login : Display live image after system rebooting.
• Cover All Camera : Do not display live image after system rebooting.
