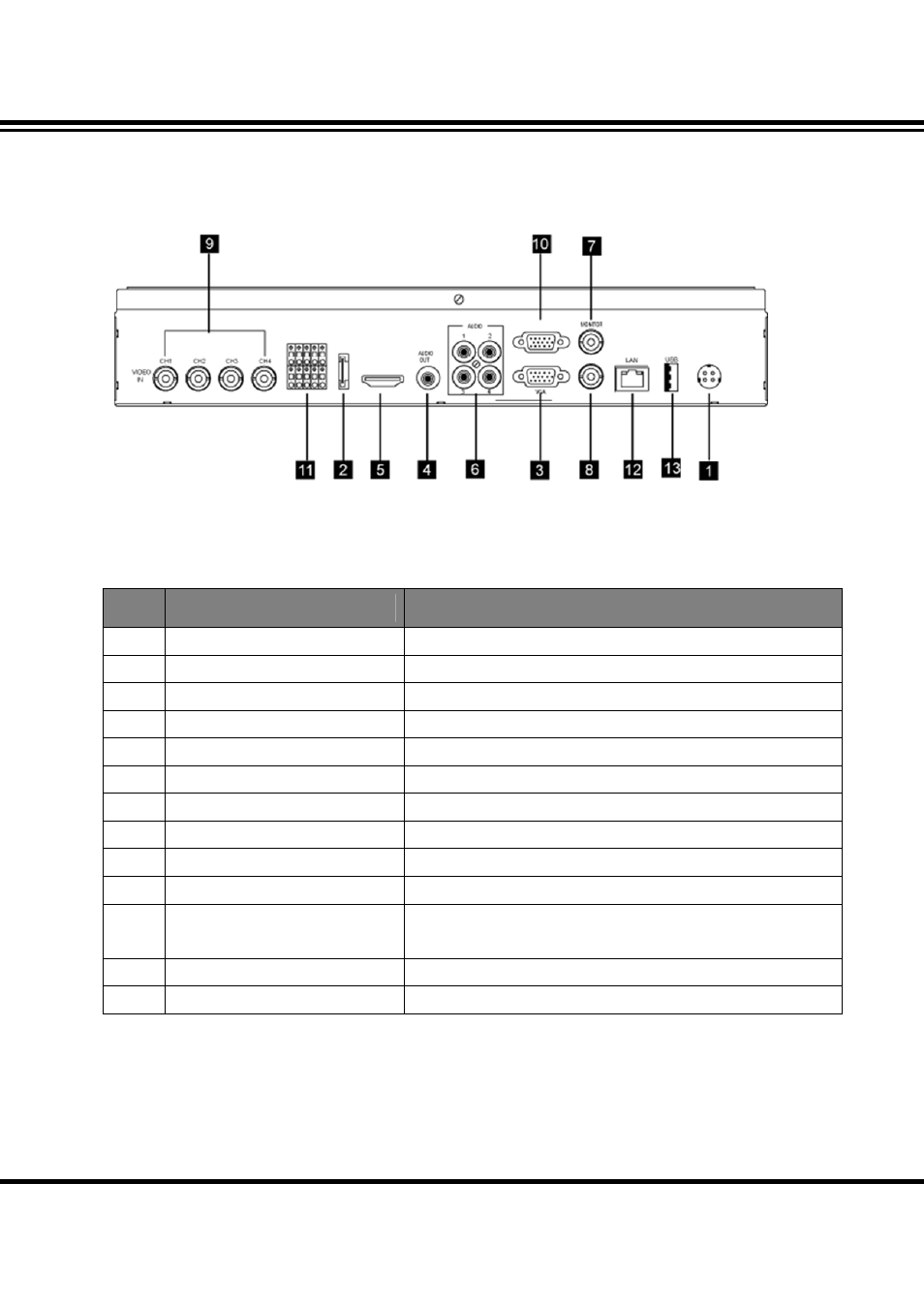

1-3. Rear Panel
No Button/Function Description
1 Power Power Input
2 External SATA Port External storage and backup port
3 VGA VGA Monitor Output
4 Audio Out Audio Output
5 HDMI Out HDMI Video output
6 Audio Input Audio Input
7 Video output CCTV Monitor Output
8 SPOT SPOT Output
9 Video Input Camera Video Input
10 Serial Port RS-232 Port
11 Tx, Rx, Sensor, Alarm Pan/Tilt(Tx, Rx), Keyboard(Tx, Rx), Sensor Input, Alarm
Output
12 Rear USB port USB Connecting Slot
13 LAN port RJ-45 Ethernet Port
