[2] Total : Display total capacity and used capacity of Hard Disk
[3] Over write : Record continuously by overwriting the hard disk
[4] Erase Data : Format several hard disks altogether.
• Main Disk : Format all the mounted disks named “Main disk”
• Mirror Disk : Format all the mounted disks named “Mirror Disk’
[5] Auto Delete : Keep the recorded data for the selected period and automatically delete the
previous data.
[6] Advanced : Select whether a Hard Disk is used as Main disk or Mirror disk.
• Hard Disk 1~3 : Select with which purpose it will be used.
• E-SATA : Select with which purpose it will be used.
• Apply : Save the setting
[Note] After setting, select “Apply” to save. Then, the system is rebooted.

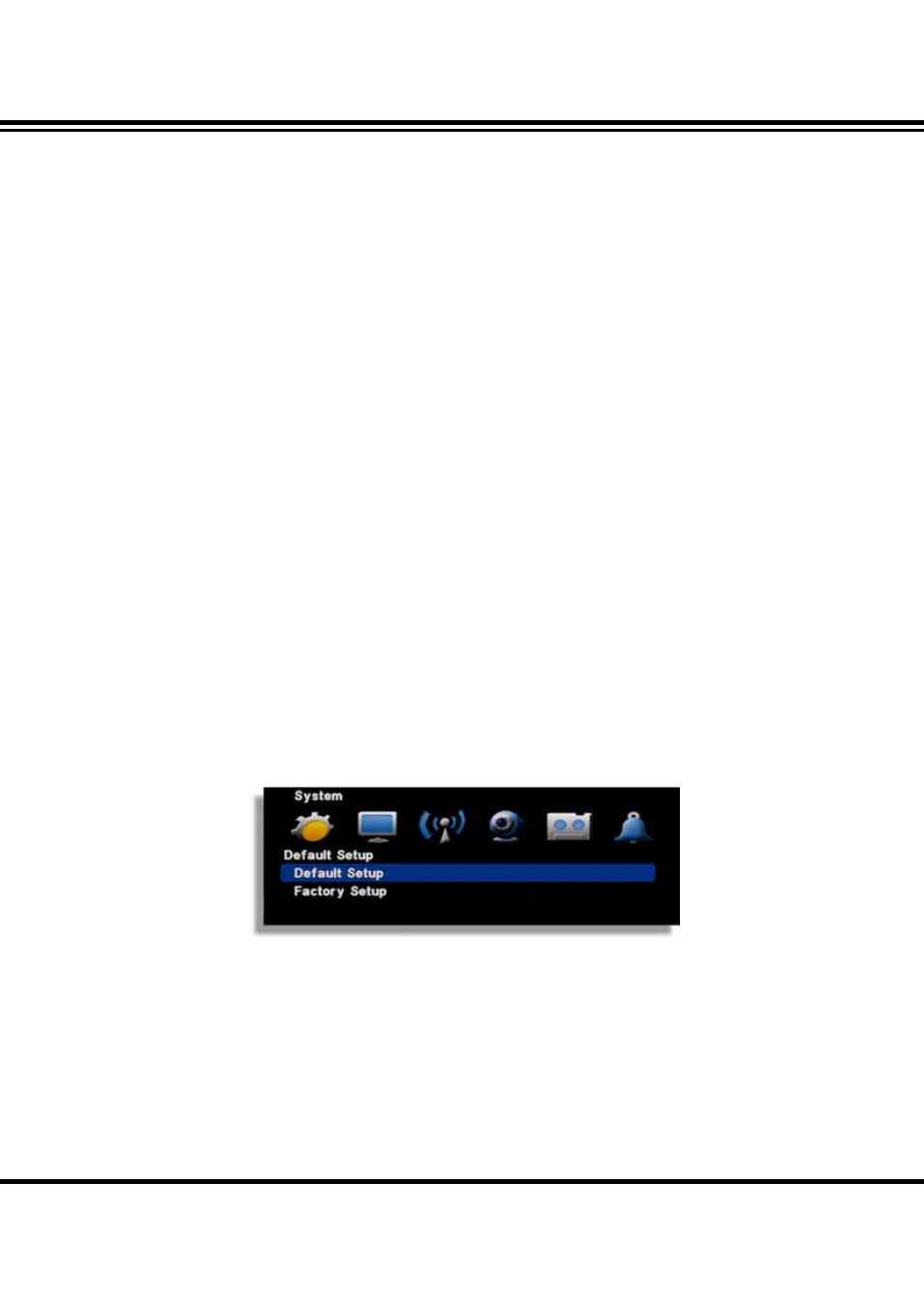

3-5. Default Setup
[1] Default Setup : Except major configuration (Network, Password), parameters are initialized.
[2] Factory Setup : All parameters are initialized.
