27
Installation
The supplied tube adapter set (LZX701) contains all the adapters
required to enable direct connection of the sample pressure tube to
the sample feed openings on the process measuring instruments.
If several instruments are supplied by one FILTRAX eco, the
sample must be fed on from the first instrument to the next via the
2/4 tube (HLS119) to make sure any delay is minimal.
Note: For detailed information on connection of the sample pressure tube,
please refer to the relevant operating instructions for the process
measuring instruments.

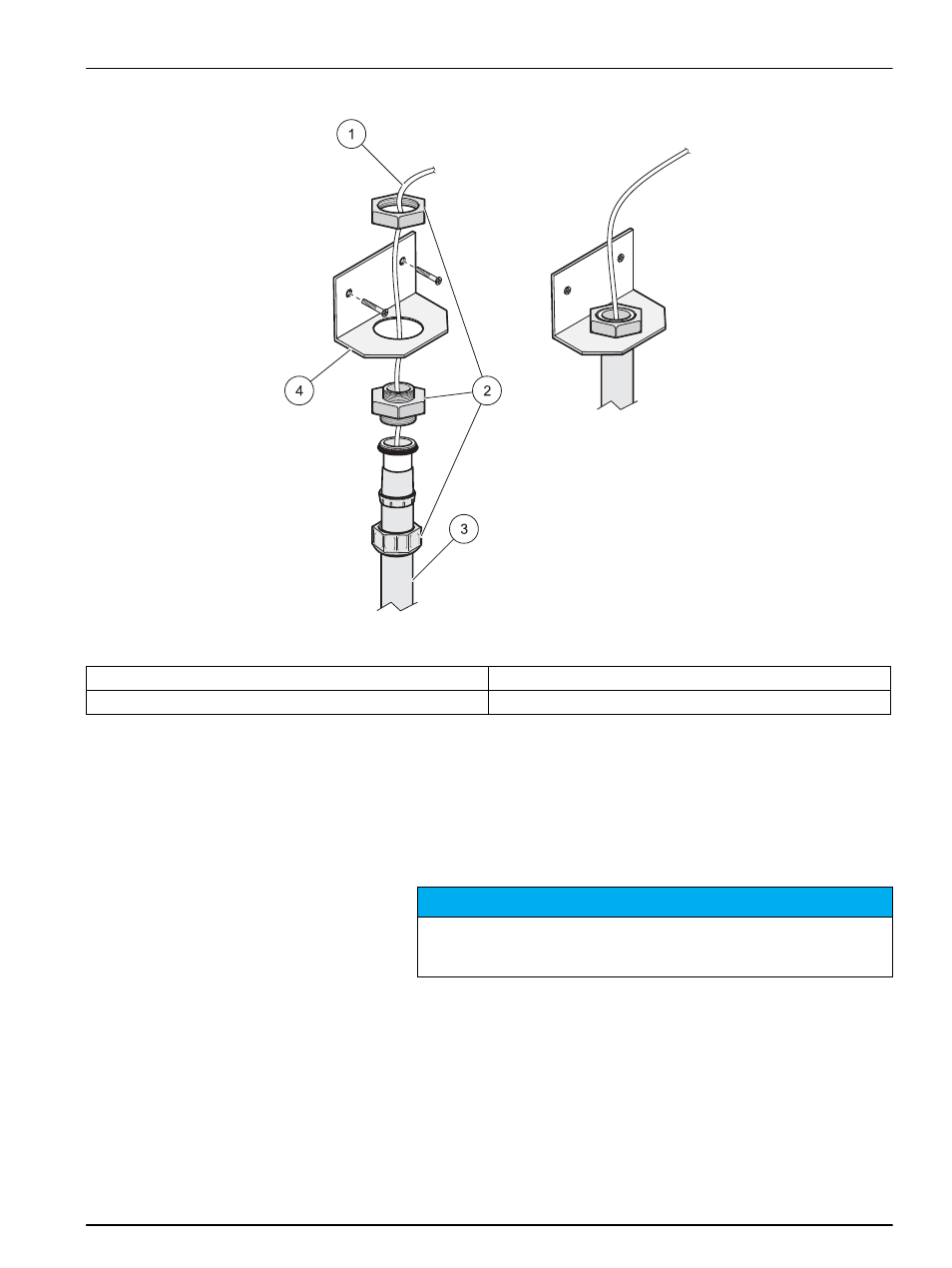

Figure 17 Angle bracket installation
1 Sample pressure tube 3 Sample tube
2 Cable gland M20 × 1.5 4 Angle bracket
N O T I C E
The sample pressure tube must never be disconnected — the pressure
buildup in this line would either damage the tubes or cause the tube
connections to fly off.
