25
Installation
1. Make sure that the instrument is disconnected from the mains.
2. Open the housing door.
3. Remove the 4 cross-head screws from the cover (refer to
Figure 16 Terminal assignment ) and remove the cover.
4. Connect the cable in accordance with Table 1 Terminal
assignment .

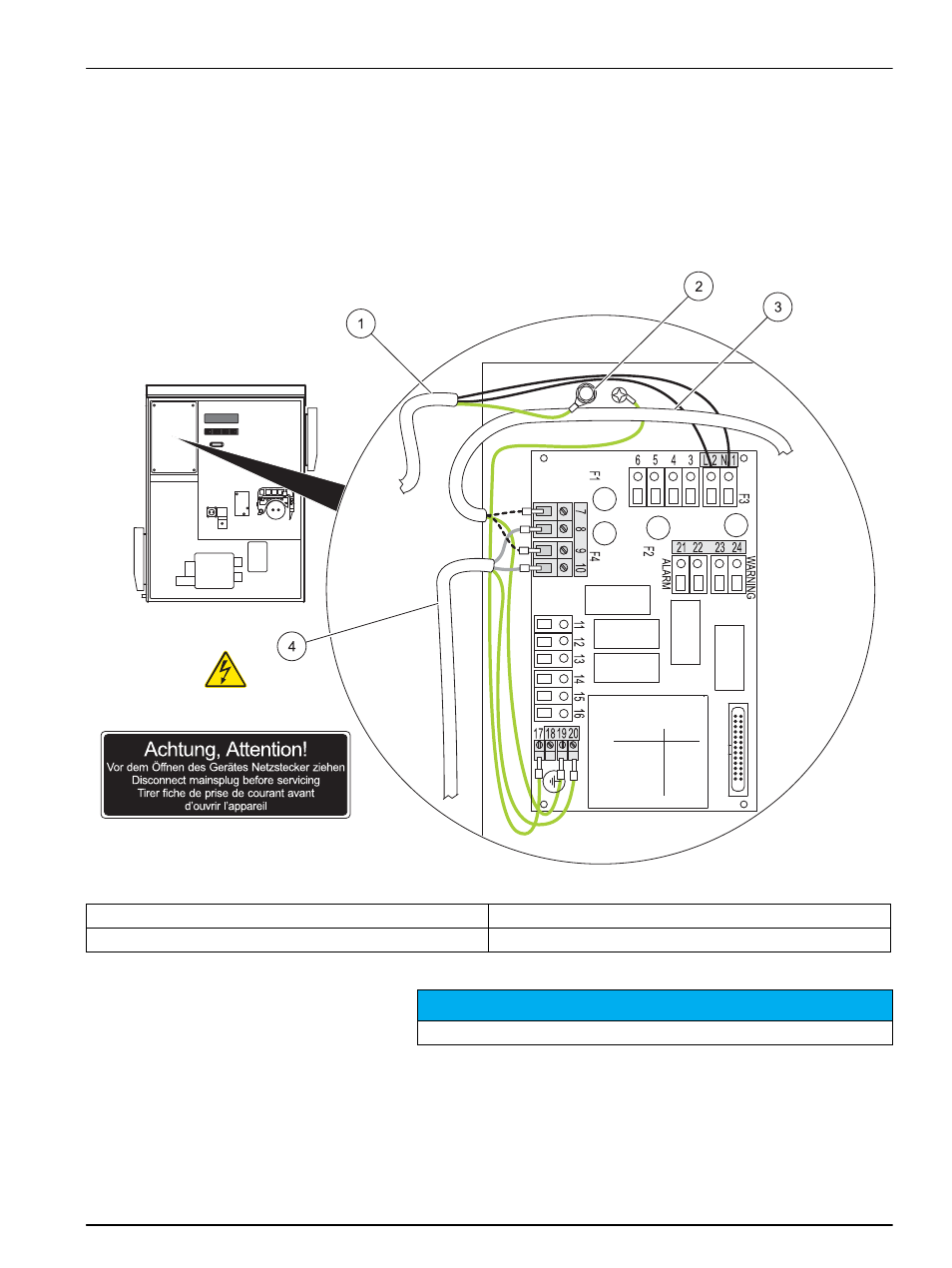

Figure 16 Terminal assignment
1 Power supply cable (power supply) 3 Heater connection cable, sample tube
2 Protective conductor connection 4 Heater connection cable, suction tube
Sicherungen/Fuses
250 V
F1:
F2:
F3:
F4: T3,15A L
T3,15A L
T6, 3A L
T6, 3A L
T4A E
T4A E
T7A E
T7A E
IEC UL
N O T I C E
Route the signal lines (21, 22, 23, 24) separated from the power cable.
