Overview

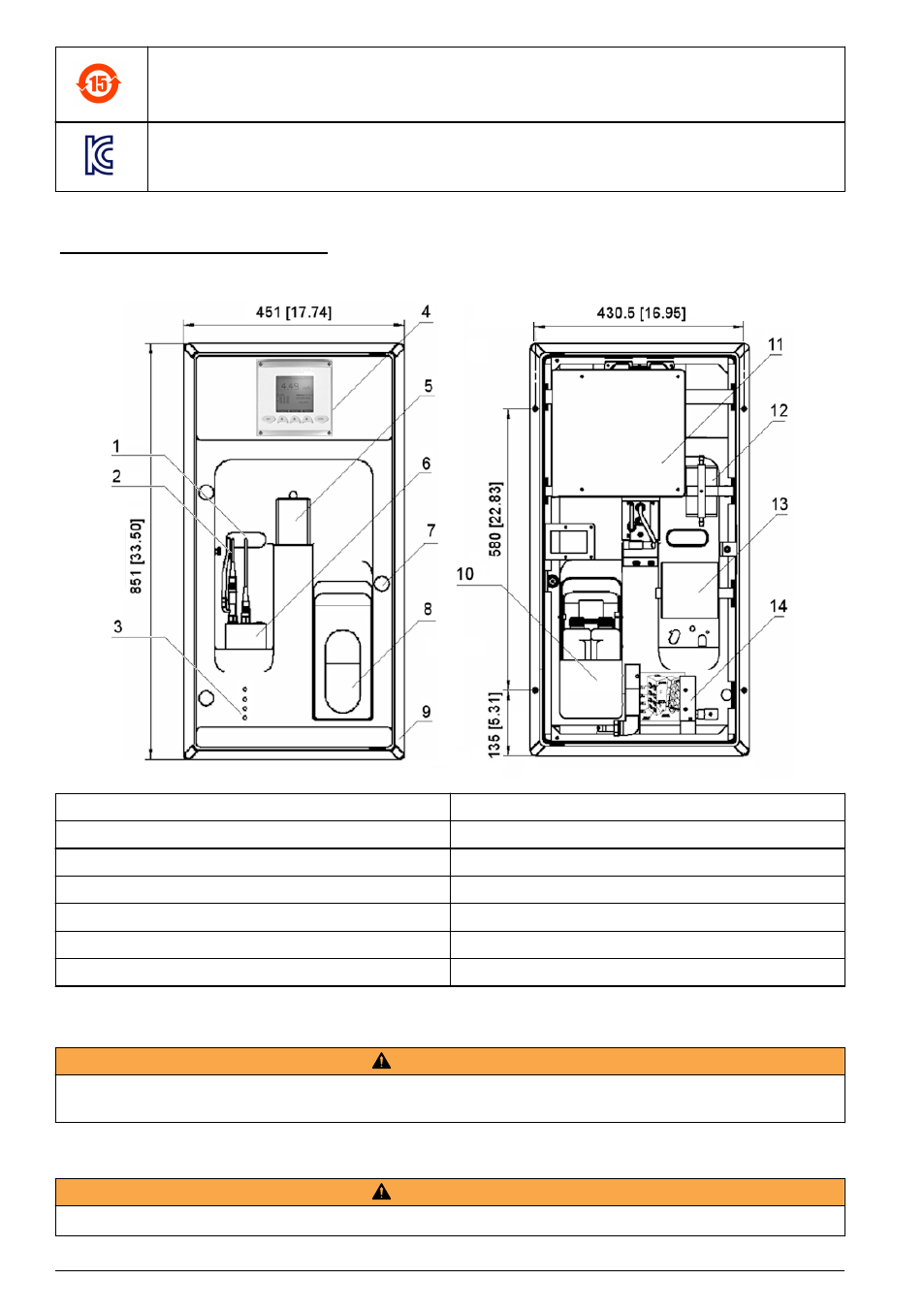

Figure 1 Front and rear panels
1 Sodium ion selective electrode 8 Reagent shelf
2 Reference electrode 9 Frame for panel mounting
3 Flow rate adjustment for each channel 10 Reagent canister holder
4 User interface 11 Local controller box
5 Overflow vessel 12 Electrolyte reservoir
6 Measuring cell 13 Pump box
7 Door lock 14 Sample inlet valves
Installation
W A R N I N G
The analyzer should only be assembled by qualified staff. Mains power should only be connected once
installation has been completed and checked
Mounting the analyzer
W A R N I N G
Do not connect power prior to mounting and plumbing the instrument.
