• Be sure the circuit board is seated firmly in place as shown in Figure 11.
• Replace the two PCB mounting screws in the positions shown in Figure 11, to

secure the board assembly in place.

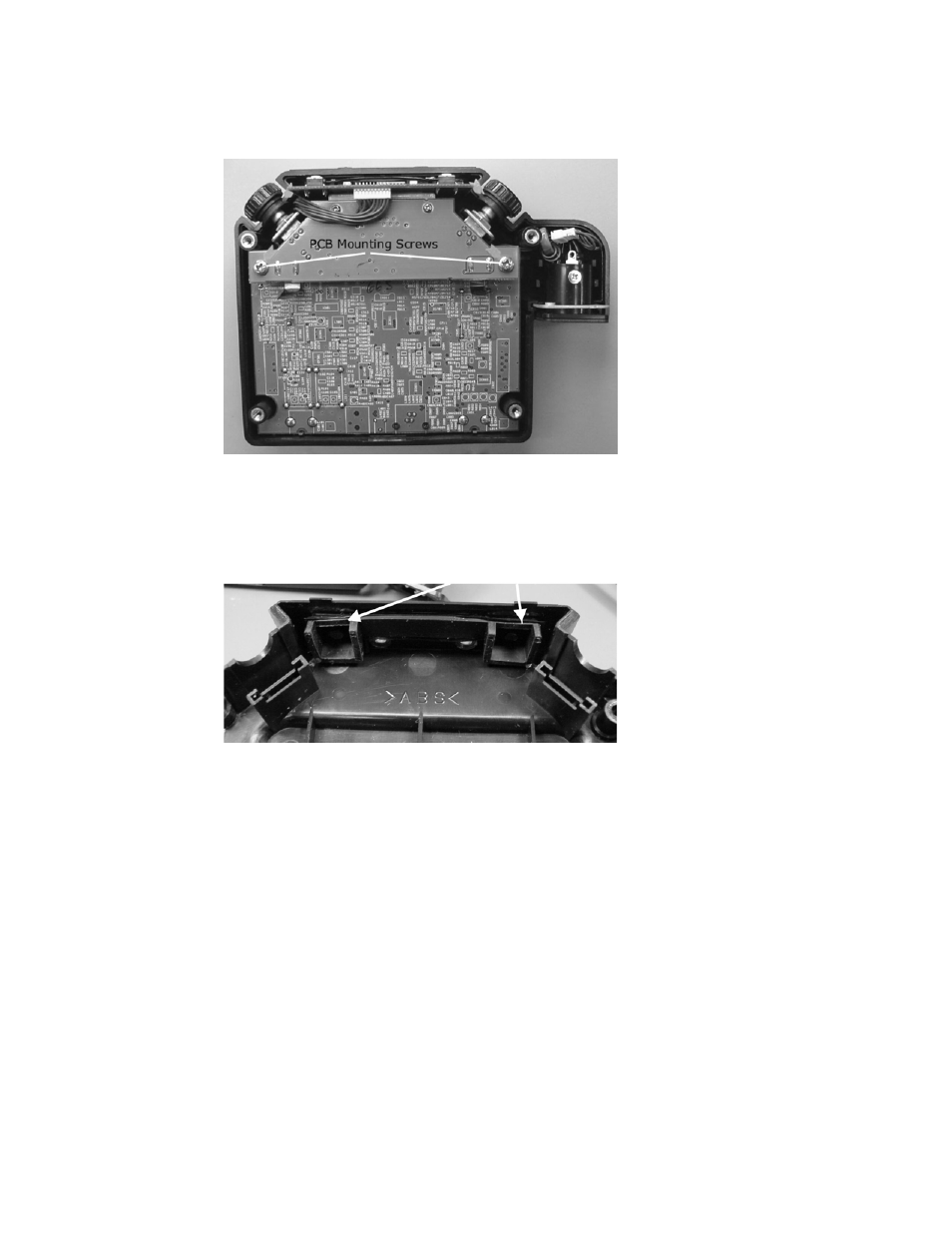

Figure 11. Mounting screws in board assembly

• Check the front cover of the Beltpac case to be sure the rubber switch cover in it

is also in place, with its button portions protruding through the two square

holes on its top, as shown by the two arrows in Figure 12.

Figure 12. Rubber switch cover in front cover

of Beltpac case

• Fit the front and back covers of the Beltpac case together, assuring that the

metal plate inside the headset connector fits properly into the respective groove

in the front cover. Snap the covers securely into place. NOTE: Be sure the A

and B button covers do not fall out of position as you fit the covers together.

• Replace the six screws shown in Figure 2.
• Replace the antennas and battery pack.
