Reassemble the Beltpac as follows:
• Insert the circuit board assembly into the Beltpac case at an angle, as shown in
Figure 6, so the remote connector fits into the “RMT” opening at the bottom of
the case, as shown in Figure 7.

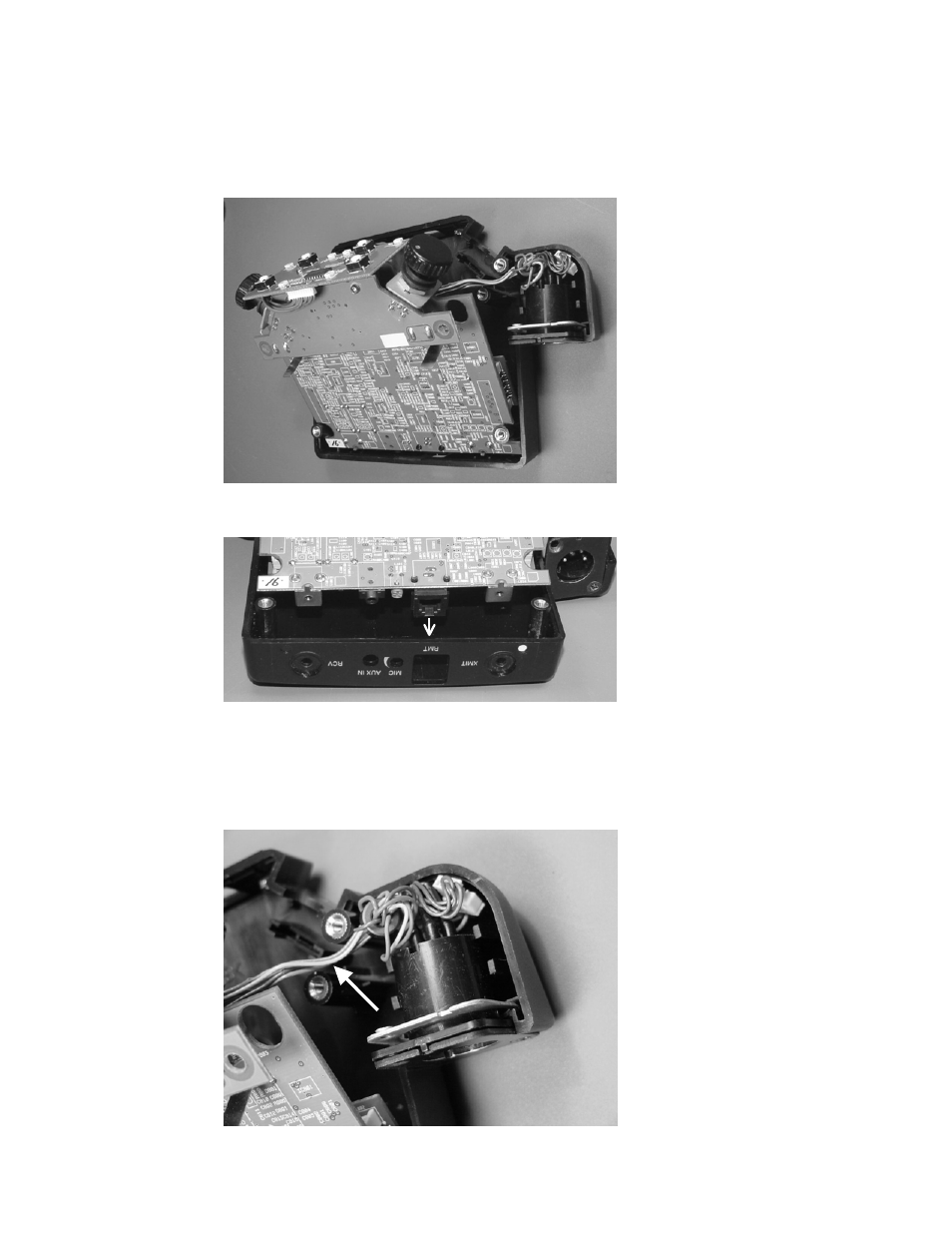

Figure 6. Insert board at angle
Figure 7. Fit remote connector into “RMT”
opening at bottom of case
• Route the connector wires between the two standoffs and the plastic tab as
shown in Figure 8.
Figure 8. Routing of connector wires
