ITEM NO. DESCRIPTION
11 Gauge
12 Diaphragm
13 Upper Case
14 Lower Case
15 Sensor Plate
16 O-ring – Diaphragm
17 Diaphragm Cover (if supplied)
18 Nut
19 Screw
21 Adaptor
22 O-Ring – Adaptor
23 O-Ring – Pusher Post
24 Pusher Post
* Not Sold as individual parts.
(Purchase Sensor Sub-Assembly 2)
ITEM NO. DESCRIPTION
1 Housing
2 Sensor Sub-Assembly
2.1 Sensor *
2.2 End Plate *
2.3 Adjusting Screw *
2.4 Sensor Pin *
2.5 Retainer Clip *
3 Needle Valve
5 O-Ring - Sensor
6 O-Ring - Sensor Plate
7 O-Ring - Needle Valve
8 End Plate Screw
9 Name Plate Screw
10 Name Plate

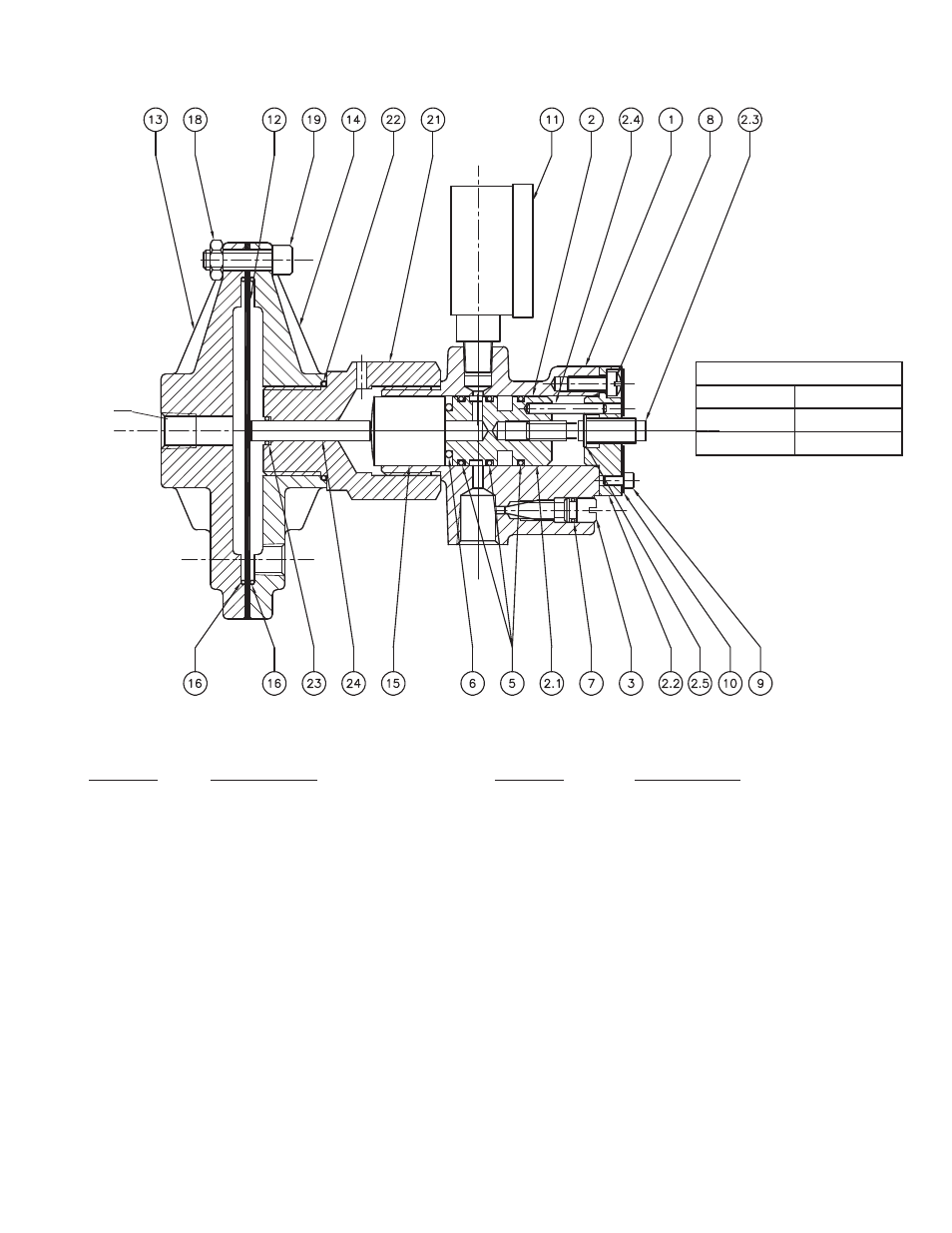

Figure 13
Model 764PD
1/4" NPT
Tap
Available Ranges
1-30 psid (.07-2.1 Bard)
