IOM-764P / PD 11
ITEM NO. DESCRIPTION
1 Housing
2 Sensor Sub-Assembly
2.1 Sensor *
2.2 End Plate *
2.3 Adjusting Screw *
2.4 Sensor Pin *
2.5 Retsainer Clip *
3 Needle Valve
5 O-Ring - Sensor
6 O-Ring - Sensor Plate
7 O-Ring - Needle Valve
8 End Plate Screw
9 Name Plate Screw
10 Name Plate
11 Gauge
Sensor Plate Sub-Assembly
450-2500 psig Range
ITEM NO. DESCRIPTION
12 Diaphragm
13 Upper Case
14 Lower Case
15 Sensor Plate Sub-Assembly
15.1 Sensor Plate
15.2 Adaptor
15.3 Retaining Ring
15.4 Spring
16 O-ring – Diaphragm
17 Diaphragm Cover (if supplied)
18 Nut
19 Screw
20 Vent Plug
* Not Sold as individual parts.
(Purchase Sensor Sub_Assembly 2)

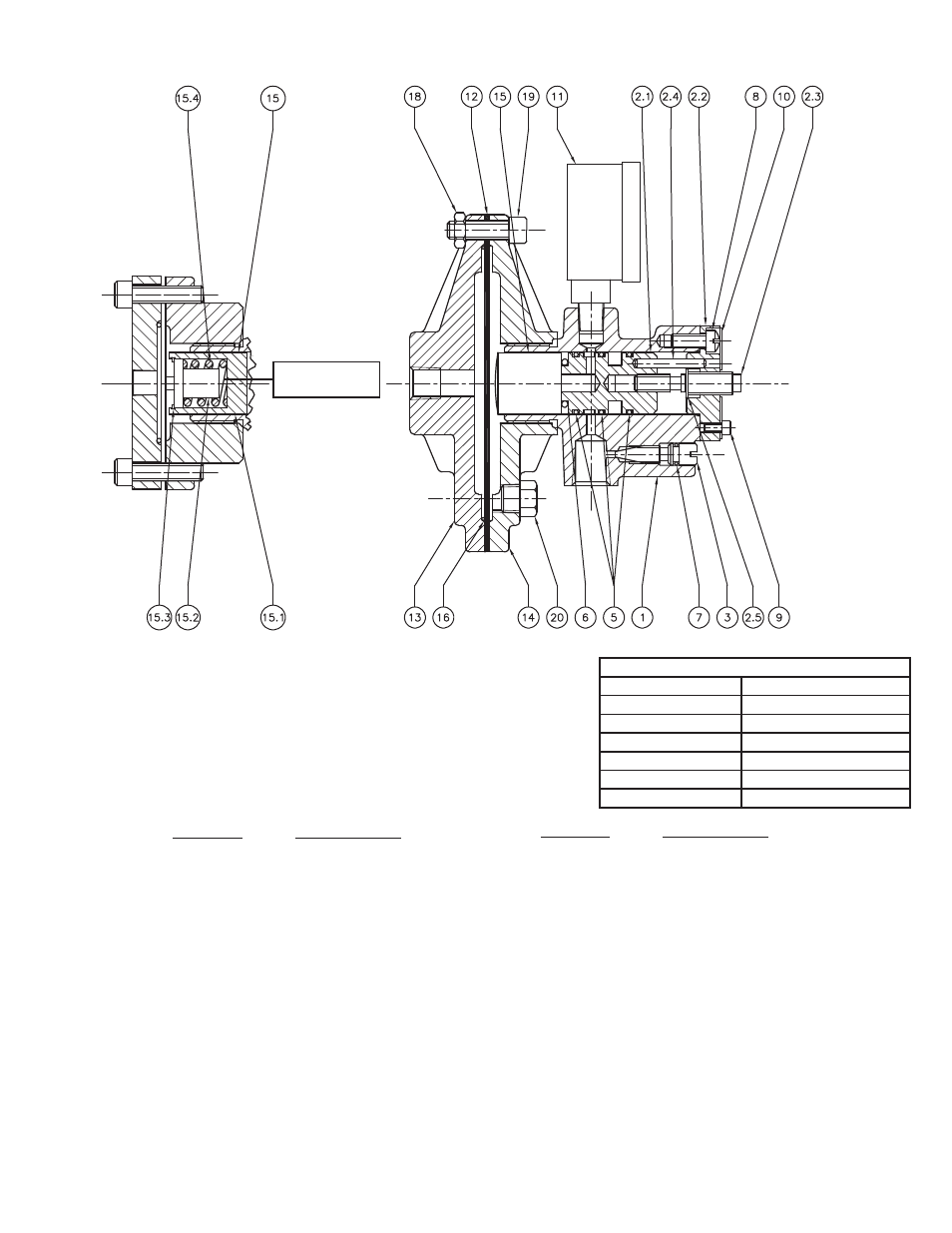

Figure 12
Model 764P
Available Ranges
psig (Barg)
1-30 (0.7-2.1)
20-100 (1.4-6.9)
50-150 (3.5-10.3)
90-500 (6.2-34.5)
450-2500 (31.0-172.4)
2"-30" Hg Vac. (50-760 mm Hg Vac. )
Sensor Plate
Sub-Assembly
