CAME BX-243 Kit - Manual (Page 3)

3
ENGLISH
T
h
e d
at
a a
n
d i
n
fo
rm
at
io
n s
h
ow
n i
n
t
h
is
d
ia
lo
g
u
e m
ay b
e c
h
an
g
ed by C
am
e C
an
ce
ll
i A
u
to
m
at
ic
i S
.p
.A
. a
t a
n
y t
im
e w
it
h
o
u
t p
ri
o
r w
ar
ning
.

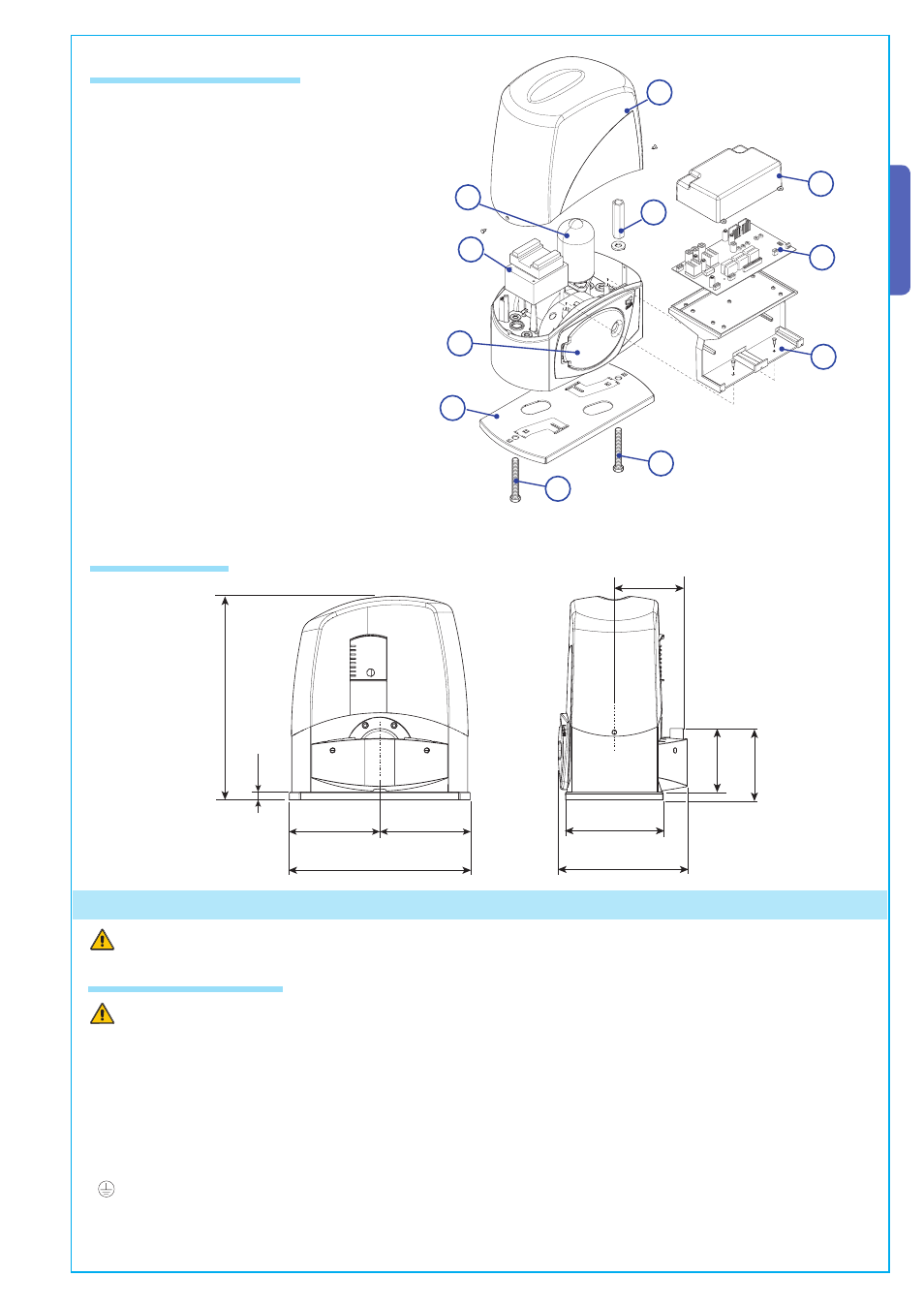

4.4 Dimensions
4.3 Description of parts
1) Top cover
2) Motor
3) Transformer
4) Trap door to access manual release of gearmotor
5) Securing plate
6) Securing bolt
7) Securing nut and washer
8) Protective cover for electronic card
9) ZN2 electronic card
10)Card and battery rack support
(mm)
1
5 Installation
Installation must be carried out by expert qualified personnel and in full compliance with current regulations.
5.1 Preliminary checks
3
5
8
Before installing, do the following:
• Make sure that the gate is stable, and that the castors are in good working order and properly greased.
• The ground rack must be well secured to the ground, entirely above the surface and free of any irregularities that may obstruct the
gate’s movement.
• The upper guide rails must not create any friction.
• Make sure that there is a closing and an opening endstops.
• Make sure that the operator is attached to a solid surface and protected from any impacts;
• Make sure you have a suitable omnipolar cut-off device with contacts more than 3 mm apart, and independent (sectioned off)
power supply;
• Check that any connections inside the container (that provide continuity to the safety circuit) are fitted with additional insula-
tion compared to other internal live parts;
• Make sure you have suitable tubing and conduits for the electrical cables to pass through and be protected against mechanical
damage.
7
9
6
10
4
2
6
