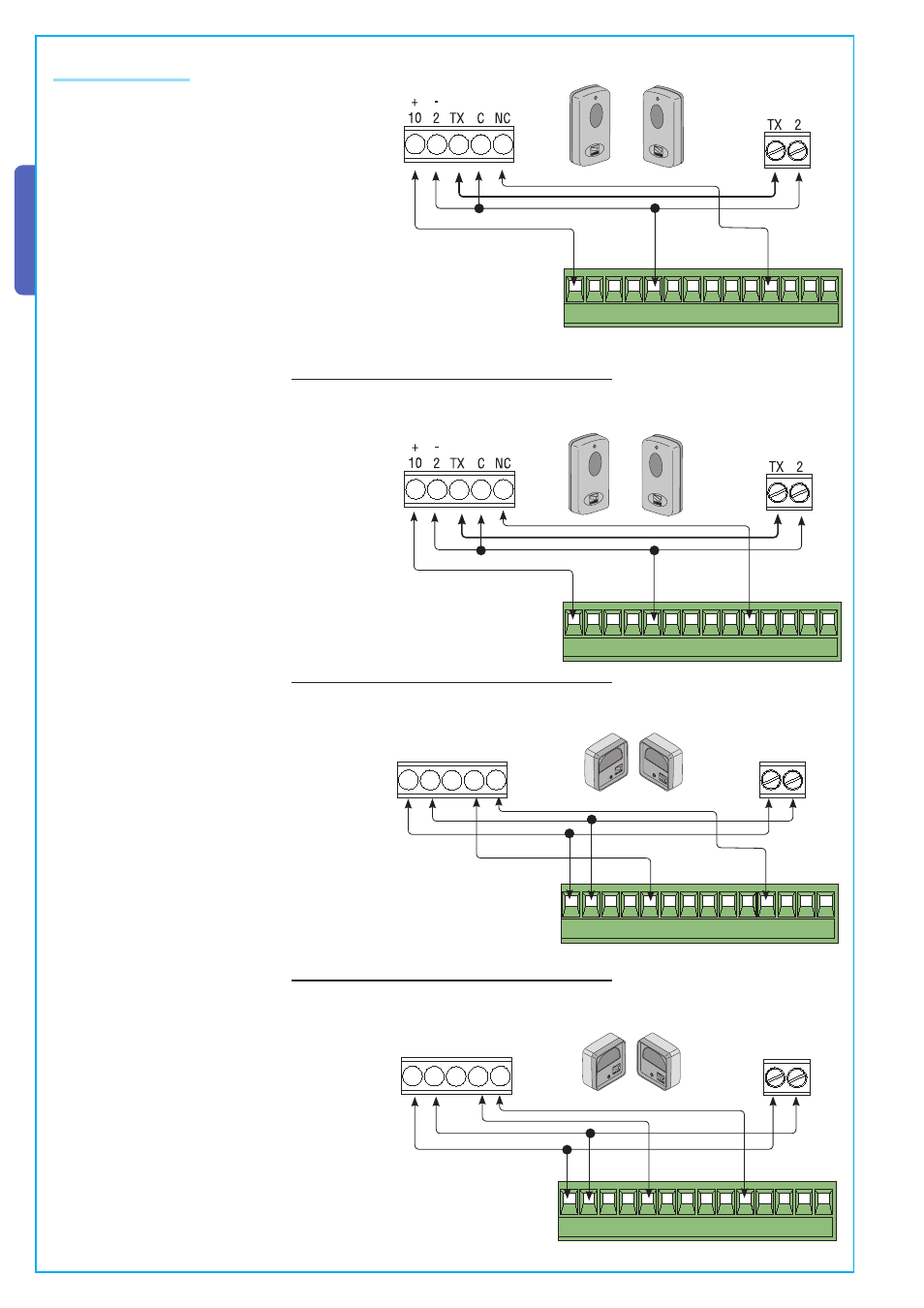

Safety devices
(N.C.) contact for «re-open during closing phase»
- Input for EN 12978 standard-compliant safety
devices such as photocells. If contact is opened,
while gate is closing, the gate inverts its direction.
«partial stop» (N.C.) contact
- Input for EN 12978 standard-compliant safety
devices such as photocells. Gate stops if moving and
automatically shuts (if this functions has been selected).
«Open while closing» (N.C.) contact
«partial stop» (N.C.) contact
DIR photocells
DOC photcells
DIR photocells
DOC photcells
