14
ENGLISH
T
h
e d
at
a a
n
d i
n
fo
rm
at
io
n s
h
ow
n i
n
t
h
is
d
ia
lo
g
u
e m
ay b
e c
h
an
g
ed by C
am
e C
an
ce
ll
i A
u
to
m
at
ic
i S
.p
.A
. a
t a
n
y t
im
e w
it
h
o
u
t p
ri
o
r w
ar
ning
.
/.
072

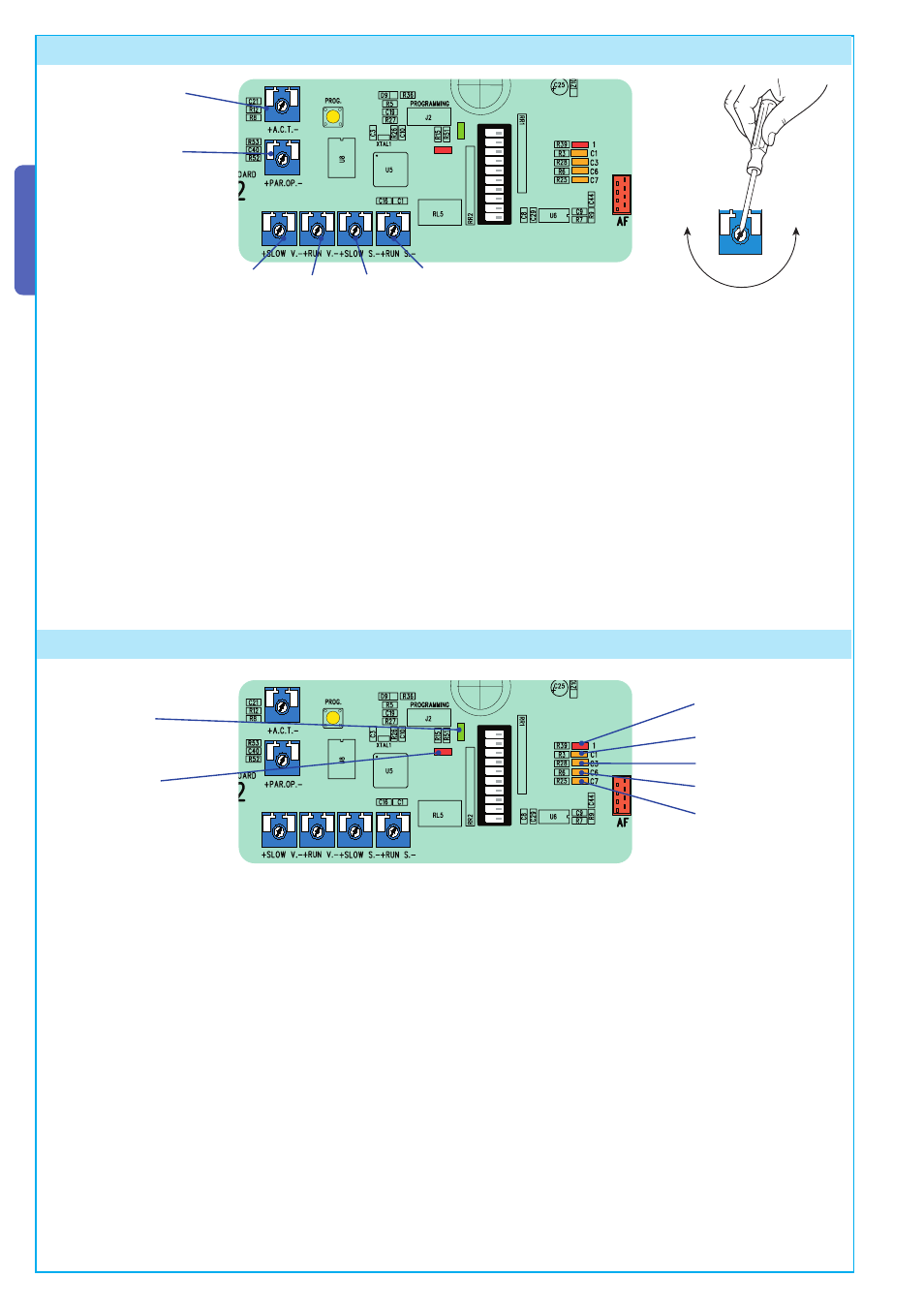

7 Settings
A.C.T.
PAR.OP.
SLOW V. RUN S.
RUN V. SLOW S.
SETTING TRIMMER LIST:
- «A.C.T.» Sets the waiting time while open. Once this time has elapsed, closing automatically takes place. The waiting time
may be set from 1 to 150 seconds.
- «PAR.OP.» Sets the gate’s partial opening. By pushing the partial opening button connected at 2-3P, the gate opens
depending on the length of the gate.
- «SLOW S.» Sets the amperometric sensitivity that controls the force generated by the motor during slow down; if the force
exceed the set level, the system intervenes by inverting the direction of motion.
- «RUN S.» Sets the amperometric sensitivity that controls the force generated by the motor during movement; if the force
exceeds the set level, the system intervenes by inverting the direction of motion.
- «SLOW V.» Sets the gate’s fi nal opening/closing phase slow-down speeds.
- «RUN V.» Sets the gate’s opening/closing motion speed.
/.
072
LIST WARNINGS OF THE COMMAND AND SAFETY DEVICES’ CONTROL LEDs:
- «PROG» Red Led. Normally off.
When the transmitter is activating, it turns on or fl ashes.
- «PWR» Green led. Normally on.
Shows that card is properly powered;
- «1» Yellow led. Normally off.
Shows activation of the PARTIAL STOP button.
- «C1» Yellow led. Normally off.
Shows that there are obstacles between the photocells (which are in OPEN WHILE CLOSING mode).
- «C3» Yellow Led. Normally off.
Shows that there are obstacles between the photocells (which are in PARTIAL STOP mode).
- «C6» Yellow Led. Normally off.
Show obstacles detected by the sensitive edge (which are in OPEN WHILE CLOSING mode).
- «C7» Yellow Led. Normally off.
Shows obstacles detected by sensitive edge (which are in CLOSE WHILE OPENING mode).
8 Warning Led
Led C7
Led 1
Led C1
Led C3
Led C6
Led PWR
Led PROG
