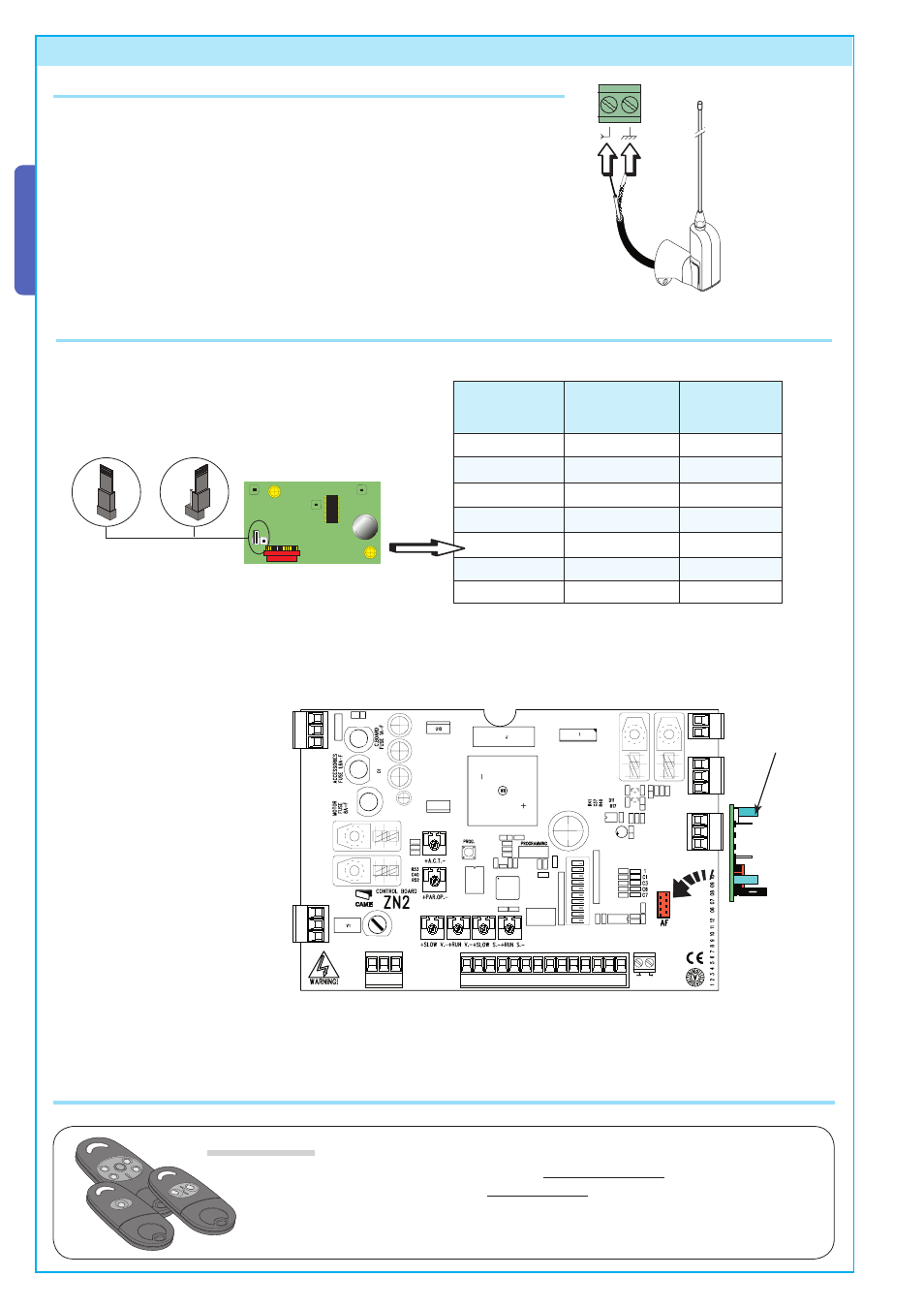

10 Activating the radio command
-.
, .
/.
,
4
,
4
% 0 # # # # 43
%
&#
&!
&
072
,).%
TOP TAM
Only for cards highlighted in the table :
- position the jumper as shown, depending on the
which series of transmitters you are using.
Frequency/MHz
Radiofrequency
card
Series of
transmitters
FM 26.995 AF130 TFM
FM 30.900 AF150 TFM
AM 26.995 AF26 TOP
AM 30.900 AF30 TOP
AM 433.92 AF43S / AF43SM TAM / TOP
AM 433.92 AF43SR ATOMO
AM 40.685 AF40 TOUCH
AF Card
Insert the radio frequency card
into the electronic card AFTER DI-
SCONNECTING THE POWER (and
disconnecting any batteries).
N.B.: the electronic card picks up
the radiofrequency card on when it
is running on power.
Connect the antenna’s RG58 cable to the apposite terminals.
Antenna
Radiofrequency card
Transmitters
ATOMO
AT01 • AT02
AT04
CAME
CAME
CAME
See instruction sheet in AF43SR radiofre-
quency card box
