Adjusting the limit switches
Adjusting the mechanical endstops

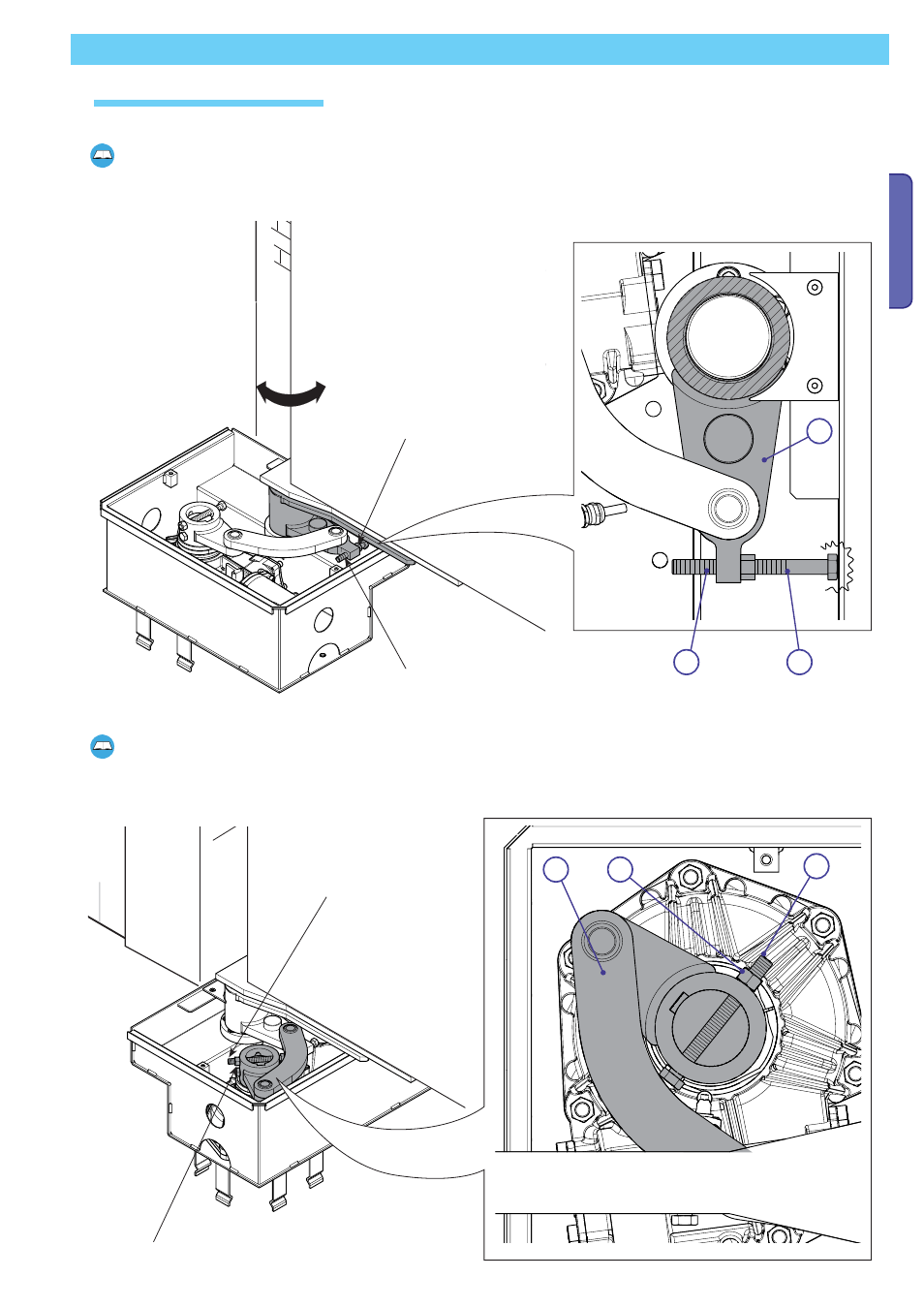

Adjust the opening mechanical endstops.Max gate leaf aperture is 110°.
N. B.: orientatation of illustration right hand inside view
Turn the adjusting screw (1) of the motor arm (3).Open the gate leaf until it touches the opening strike plate, loosesn the adjusting
screw (1) unti contact is made with the box.
Tighten the nut (2) to lock the screw.
Adjust the closing mechanical endstops.
N. B.: orientatation of illustration right hand inside view
Rest the gate leaf against the closing strike plate and turn the screw (1) until contact is made with the transmission lever (3).
Tighten the nut (2) to lock the screw.
Adjusting screw
Max aperture 110°
Locking nut
Adjusting screw
Locking nut
