Hydrotech 12301_12302_12303 Series ADVANCED REVERSE OSMOSIS WATER TREATMENT SYSTEMS - Manual (Page 11)

7
9 NON AIR GAP
AIR GAP
AIR GAP ONLY
DRINKING WATER LINE
FROM POST-FILTER
TO FAUCET(3/8" BLUE TUBING)
5 AIR GAP
7
FAUCET NIPPLE
6
8
1
SINK OR COUNTER MATERIAL
DRAIN LINE FROM AIR GAP
TO DRAIN (3/8" RED TUBING)
(1/4" RED TUBING)
DRAIN LINE TO AIR GAP
3 2
4
AIR GAP
NON
4A
Description Part No. Item Description
Chrome Plated Metal Non-Air Gap Faucet
(Faucet not available in California)
Chrome Plated Metal Non-Air Gap Faucet
(EPA and California Proposition 65 Compliant)
Chrome Plated Metal Air Gap Faucet
(Faucet not available in California)
Chrome Plated Metal Air Gap Faucet)
(EPA and California Proposition 65 Compliant)
40301102
40301002
40301101
40301001
1
2
3
4
4A
5
6
7
8
9
Body, Faucet
Faucet Base Washer, Rubber
Faucet Base Washer, Metal
Washer, Slotted (Air Gap, Slot Shape may vary)
Washer, Locating (Non-Air Gap, Replaces Items 4 and 5)
Spacer, Faucet (Air Gap)
Washer, Faucet
Nut, Faucet
Connector, Faucet 3/8” x 7/16”
Faucet Body Washer, Rubber (Non-Air Gap)

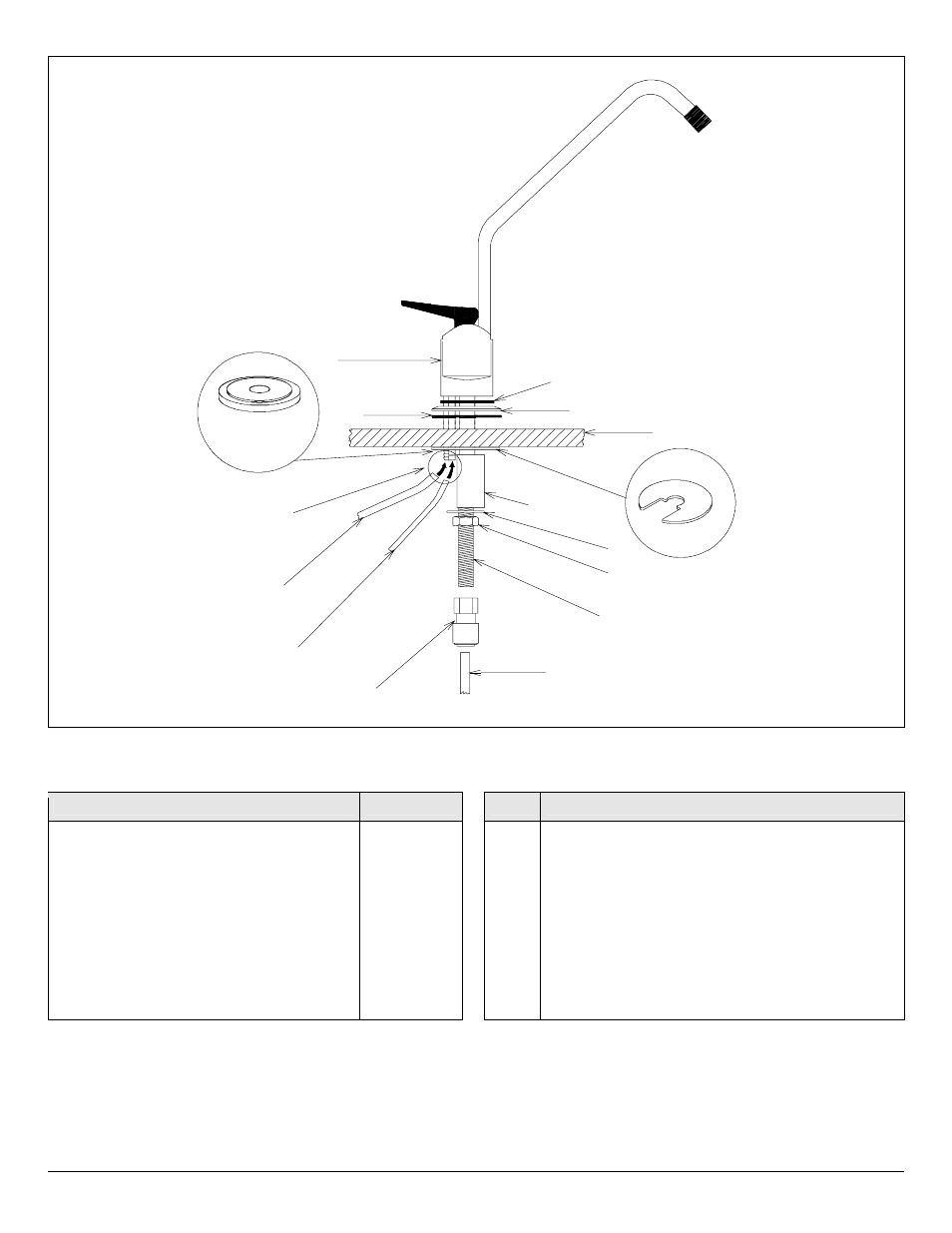

Figure 7:
Chrome-Plated Metal Product Water Faucet Assembly
