8623 - 5
english
Settings of the compact flow controller at delivery

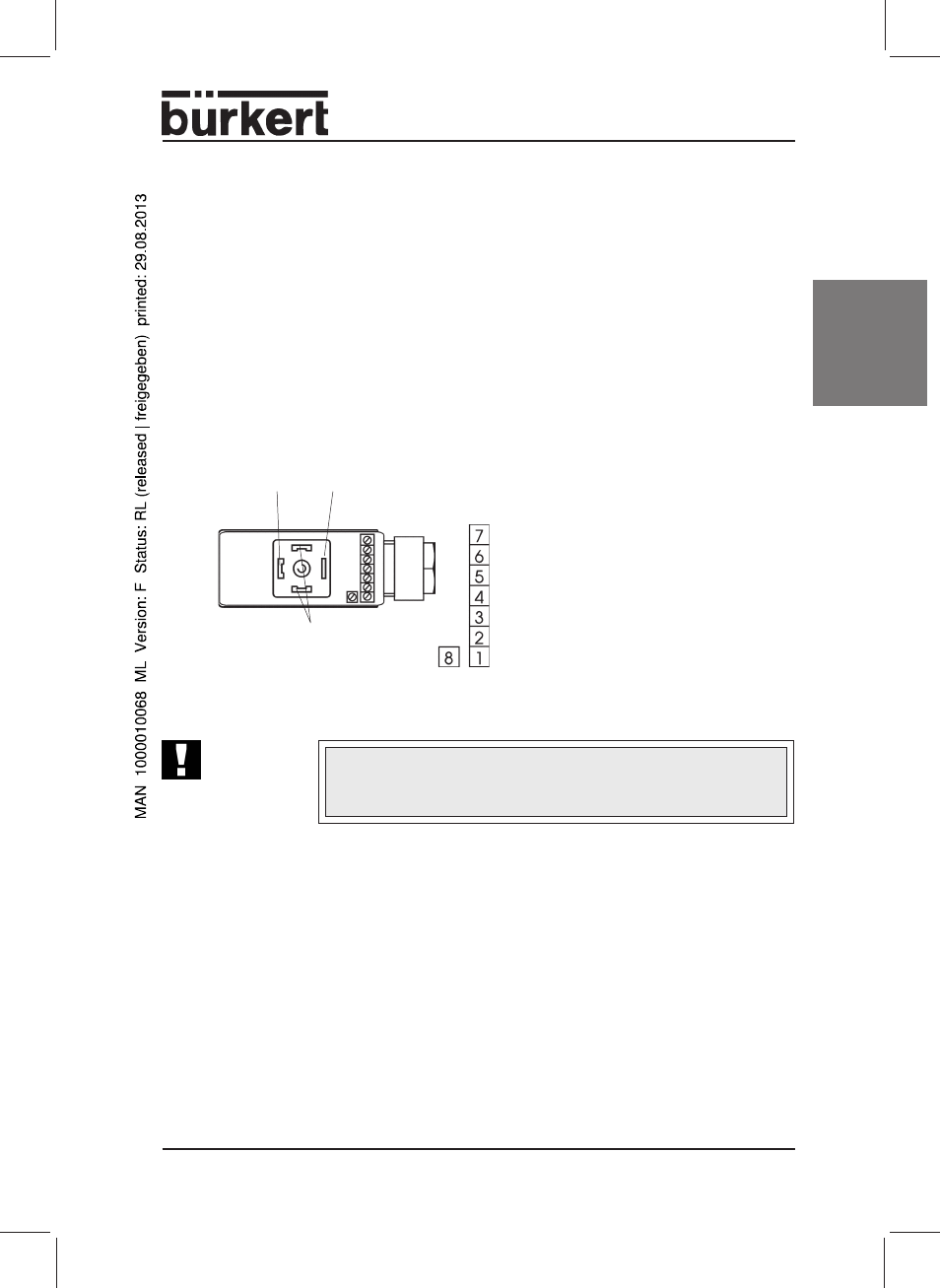

Wiring connections
Fig. 3: Wiring connections
ATTENTION!
Do not connect any voltages to Terminal 5!
Terminal 5 is a 24V output for supplying the flow sensor
(e.g., Bürkert Type 8020 with Hall sensor).
PE not used
Valve output
GND
24 V output
GND
PE
Frequency input 2
Frequency input 1
Standard signal input 4 - 20 mA
24 V DC
K-Factor 1 46,60
K-Factor 2 46,60
Selection internal set-value (C.01)
Lower limit value 0,00
Upper limit value 180,00
Set-value 0,00
Ratio 1,00
KP 1,00
TN 0,50
