Î
Set the ratio to your own requirements.
7.3.7 Ratio Control (C.03)
In ratio control, the flow Q
1
(regulated flow) will track so that it corresponds to the
defined ratio to a flow Q
2
(unregulated flow).
Q
1
= ratio factor * Q
2
Example:
You set up a ratio of 1:4:
4.00
Flow rate Q
2
:
20 l/h
Regulation of the flow rate Q
1
:
20*4 = 80 l/h
NOTE
If the ratio is set so high that the flow Q
1
corresponds to a
frequency greater than 625 Hz, error message E.07 appears on
the display.
7.3.7.1 Multiplier of the K factor

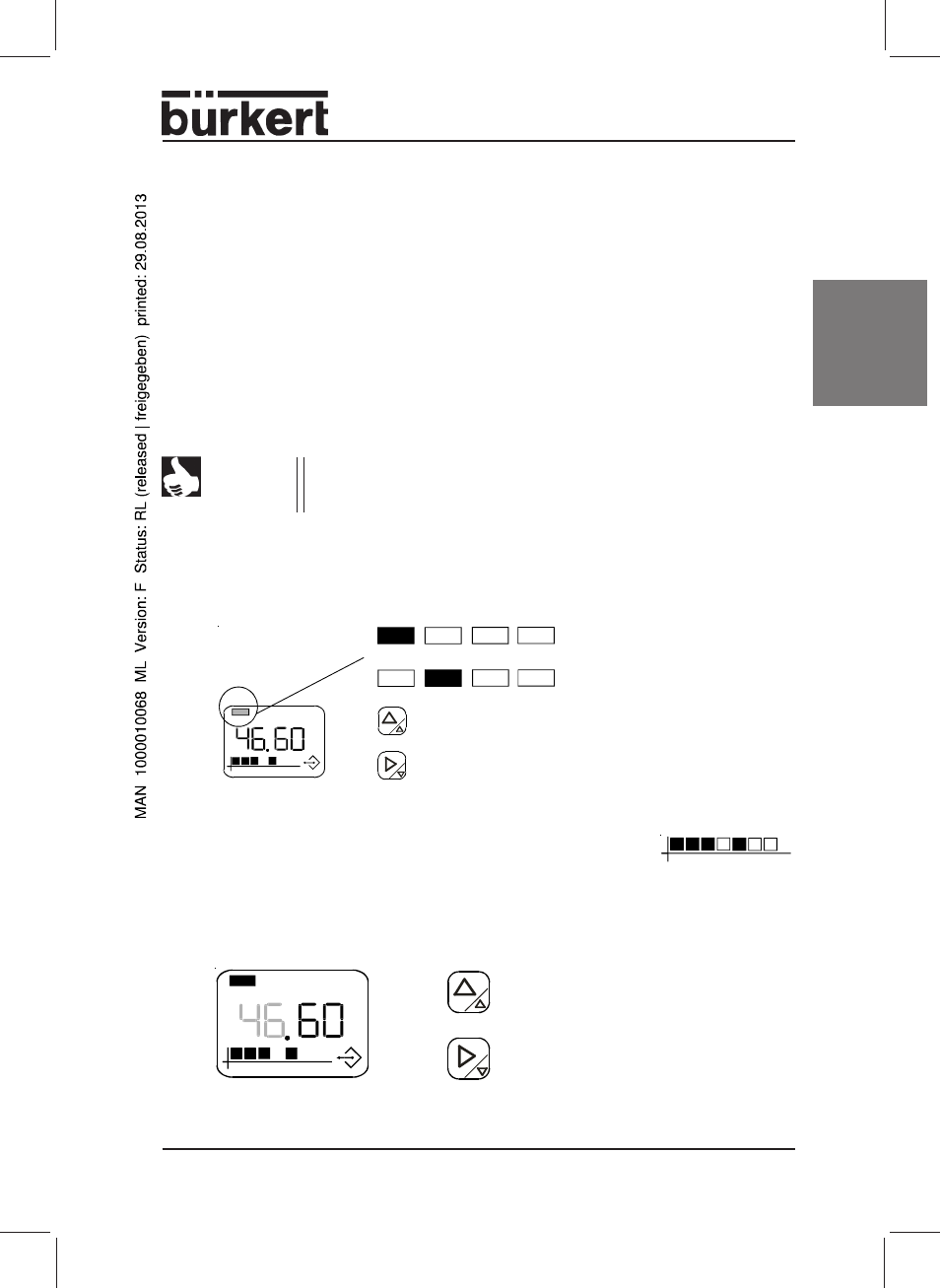

Fig. 14: Multiplier of the
K factor
Multiplikator = 1
Multiplikator = 10
Ändern des Multiplikators
Weiter zur Einstellung des 2.
K-Faktors
7.3.7.2 K Factor of the 2nd flow sensor
Î
Set the K Factor of the 2nd flow sensor analogously to the setting of the K
Factor of the 1st flow sensor(see 8.3.3)
Setting the pre-comma value of the 2nd K factor
Increase of the pre-comma value
Proceed to set the post-comma
value
