WHEELS (Model RX84 Only)

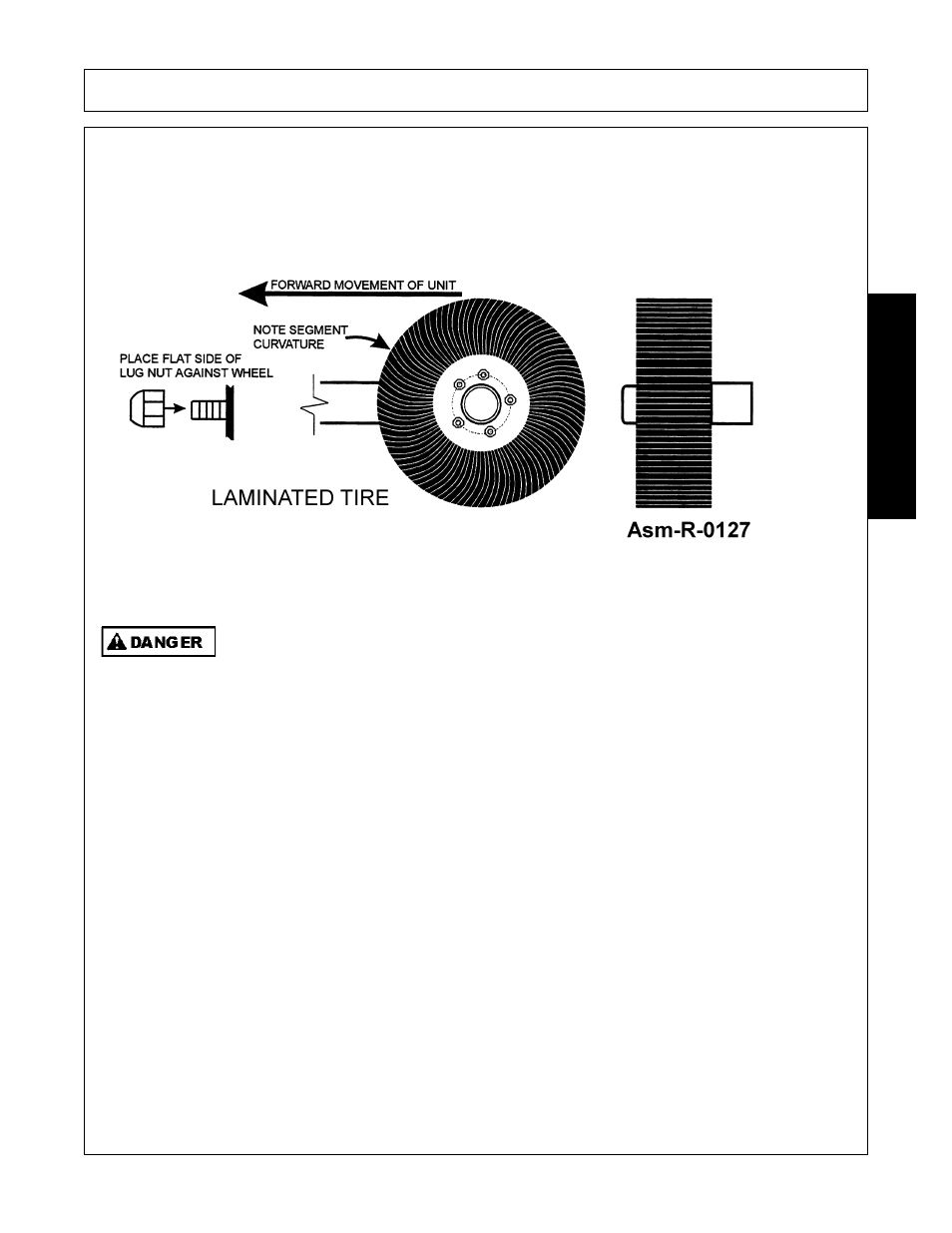

Install the Wheels on the Wheel Hubs. Note: If Laminated Tires are used, place the flat side of the Lug Nut
against the Wheel Asm-R-0127. Note direction of travel and curvature of rubber segments in tire and install as
shown in Asm-R-0127.
Front and Rear Deflectors (Standard Equipment)
Deflectors: Front and Rear Deflectors (Standard Equipment) are
recommended for the average user and will provide protection from
thrown objects with proper operation under normal conditions.
Deflectors must be maintained in good repair or replaced after no more
than two inches of wear off lower edge.
Front and Rear rubber-fabric Deflectors are Standard Equipment and Front and Rear Chain
Guards are optional . One type of guard must be installed (and maintained in good repair)
except for agricultural purposes only in areas where persons, vehicles, livestock, or other
property will not be endangered by thrown objects and where such safety equipment would
prevent the mower's reasonable performance of its assigned agricultural task. Assy01-
Shielding
