ASSEMBLY
RX60/72/84 03/09 Assembly Section 3-8
© 2009 Alamo Group Inc.
ASSEMBL
Y

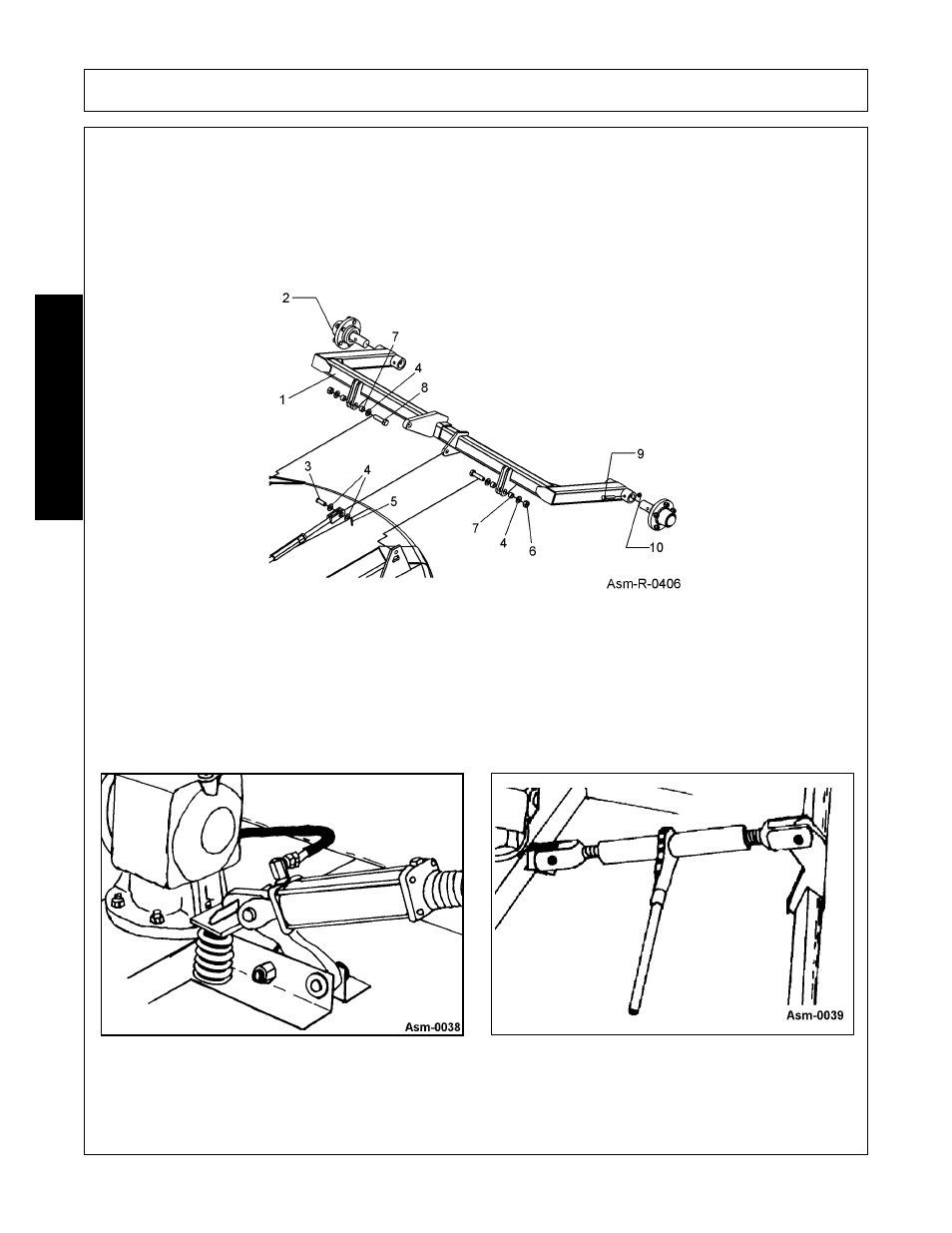

AXLE ASSEMBLY
Attach rear axle (1) to the lugs on the rear of the mainframe using 3/4 x 3 (8) bolts, bushings (7), flatwashers
(4) and locknuts (6). Tighten all bolts. Attach level lift rod assemblies to axle (1) Figure Asm-R-0406 and
tongue (1) Figure Asm-R-0405 using clevis pin (15), flatwashers (31) and cotter pin (38). NOTE: The
adjusting nuts on control rods should be to rear of machine. Figure Asm-R-0406
HYDRAULIC OR MANUAL LIFT (Model RX84 Only)
Install the Hydraulic Cylinder or the manual Ratchet Lift Screw (Asm-0039) between the Axle Center Lug and
the Lug directly behind the Center Gearbox. Install cylinder pins provided and retain with cotter pins. NOTE:
Figure ASM-0038 shows optional spring shock installation.
